FST-18H Fusion Splicer
The FST-18H Fusion Splicer is a high-performance fiber optic splicing device designed for precise and efficient splicing of single fibers. It features advanced technology for low splice loss and high return loss, making it ideal for various fiber optic applications.
Save to Favorites
Overview

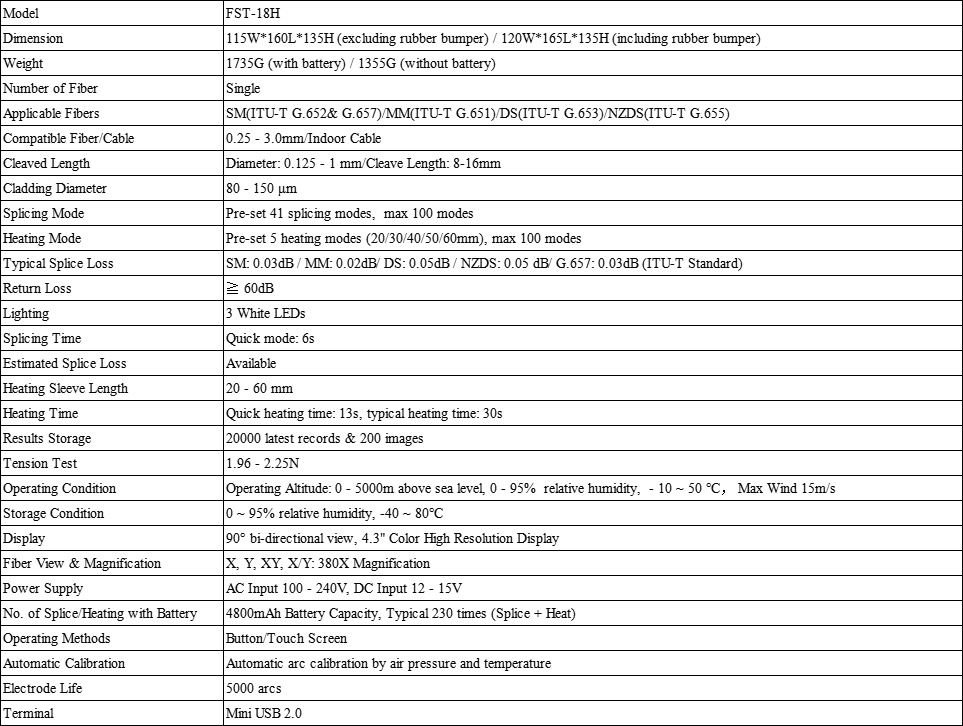

Specifications
| Parameter | Value |
|---|---|
| Model | FST-18H |
| Dimension | 115W×160L×135H (excluding rubber bumper) / 120W×165L×135H (including rubber bumper) |
| Weight | 1735g (with battery) / 1355g (without battery) |
| Number of Fiber | Single |
| Applicable Fibers | SM(ITU-T G.652&G.657)/MM(ITU-T G.651)/DS(ITU-T G.653)/NZDS(ITU-T G.655) |
| Compatible Fiber/Cable | 0.25-3.0mm/Indoor Cable |
| Cleaved Length | Diameter: 0.125-1mm / Cleave Length: 8-16mm |
| Cladding Diameter | 80-150μm |
| Splicing Mode | Pre-set 41 splicing modes, max 100 modes |
| Heating Mode | Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes |
| Typical Splice Loss | SM: 0.03dB / MM: 0.02dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB (ITU-T Standard) |
| Return Loss | ≥60dB |
| Lighting | 3 White LEDs |
| Splicing Time | Quick mode: 6s |
| Estimated Splice Loss | Available |
| Heating Sleeve Length | 20-60mm |
| Heating Time | Quick heating time: 13s, typical heating time: 30s |
| Results Storage | 20000 latest records & 200 images |
| Tension Test | 1.96-2.25N |
| Operating Condition | Operating Altitude: 0-5000m above sea level, 0-95% relative humidity, -10-50°C, Max Wind 15m/s |
| Storage Condition | 0-95% relative humidity, -40-80°C |
| Display | 90° bi-directional view, 4.3" Color High Resolution Display |
| Fiber View & Magnification | X, Y, XY, X/Y: 380X Magnification |
| Power Supply | AC Input 100-240V, DC Input 12-15V |
| Operating Time with Battery | 4800mAh Battery Capacity, Typical 230 times (Splice + Heat) |
| Operating Methods | Button/Touch Screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | Typical 3000 times |
| Terminal | Mini USB 2.0 |
