Encircled Flux (EF) Test Solutions
Encircled Flux (EF) test solutions are designed for controlled multimode loss testing, ensuring maximum accuracy and repeatability for Tier-1/2 multimode fiber testing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Central Wavelength (nm) 12C | 850±25, 1300±20 |
| Central Wavelength (nm) 23BL | 1310±20, 1550±20 |
| Spectral Width (nm) 12C | 50/135 |
| Spectral Width (nm) 23BL | ≤5 |
| Launch Conditions | Encircled Flux compliant at 50μm, 850/1300nm (guaranteed) |
| Auto-Switching | Yes |
| Tone Generation | 270Hz, 1kHz, 2kHz |
| Battery Life (hours) | 50 |
| Warranty (year) | 1 |
| Size (H x W x D) | 190mm x 100mm x 62mm (7.5in x 4in x 2.5in) |
| Weight | 0.48kg (1.1lb) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 0% to 95% non-condensing |

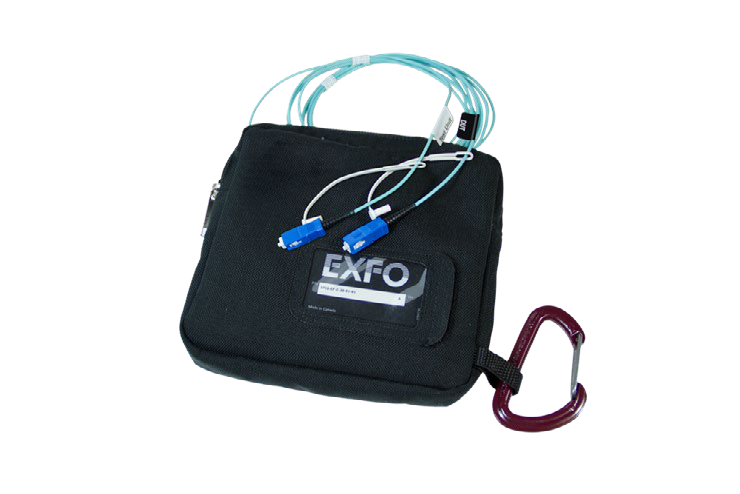

| Total Insertion Loss (dB) SPSB-EF-C30 | <1 |
| Fiber Length SPSB-EF-C30 | 34m (112ft) |
| Size (H x W x D) SPSB-EF-C30 | 165mm x 165mm x 40mm (6.5in x 6.5in x 1.5in) |
| Weight SPSB-EF-C30 | 0.3kg (0.7lb) |
| Operating Temperature SPSB-EF-C30 | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature SPSB-EF-C30 | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity SPSB-EF-C30 | 0% to 95% non-condensing |
