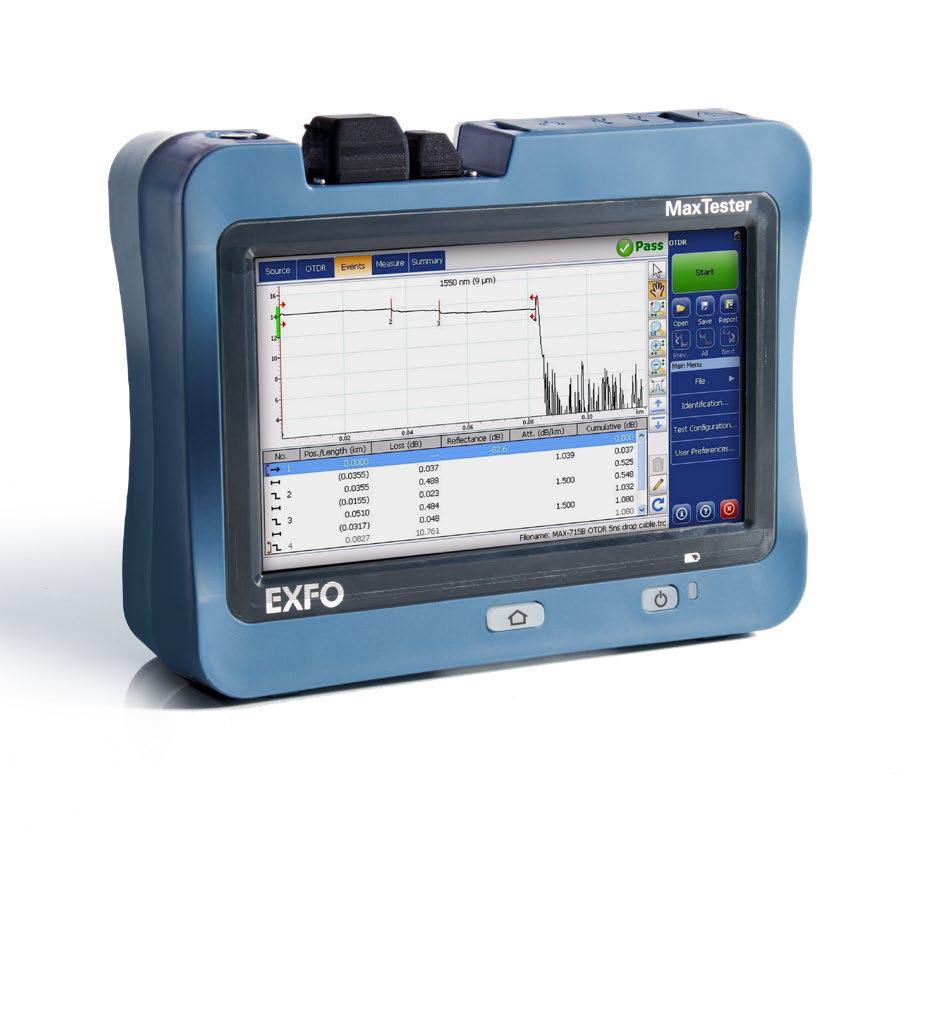

MaxTester 715D last-mile OTDR
The MaxTester 715D is a fully featured, entry-level, dedicated OTDR with a tablet-inspired design, ideal for frontline singlemode fiber installers.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

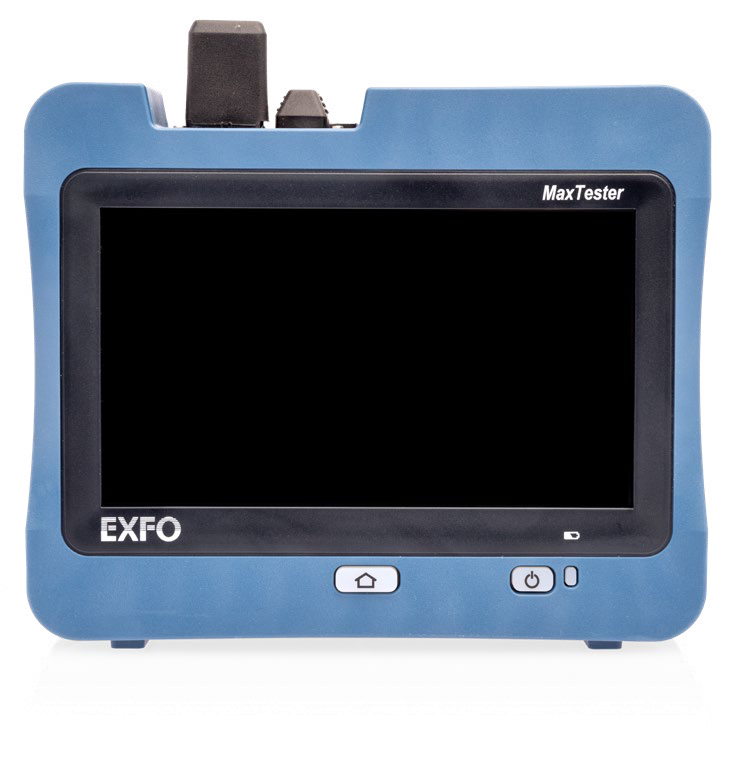

| Display | 7in (178mm) outdoor-enhanced touchscreen, 800×480 TFT |
| Interfaces | Two USB2.0 ports, RJ45 LAN 10/100Mbit/s |
| Storage | 2GB internal memory (20000 OTDR traces, typical) |
| Batteries | Rechargeable lithium-polymer battery, 12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138 |
| Power Supply | Power supply AC/DC adapter, input 100-240VAC, 50-60Hz, 9-16VDCin 15Watts minimum |
| Wavelength (nm) | 1310±30/1550±30/1650±15 |
| Live Wavelength (nm) | 1650 |
| Dynamic range (dB) | 32/30/30 |
| Event Dead Zone (m) | 0.9 |
| Attenuation Dead Zone (m) | 3.6 |
| Distance range (km) | 0.1 to 200 |
| Pulse Width (ns) | 3 to 20000 |
| Linearity (dB/dB) | ±0.03 |
| Loss threshold (dB) | 0.01 |
| Loss Resolution (dB) | 0.01 |
| Sampling Resolution (m) | 0.04 to 5 |
| Sampling Points | 1 to 256000 |
| Distance Uncertainty (m) | (±0.75+0.005×distance+sampling resolution) |
| Measurement Time | User-defined |
| Reflectance Accuracy (dB) | ±2 |
| Typical real-time refresh (Hz) | 3 |
| Power Range (dBm) | -60 to 23 |
| Power Uncertainty (dB) | ±0.5 |
| Calibrated Wavelengths (nm) | 1310, 1490, 1550, 1625, 1650 |
| Selectable Wavelengths (nm) | 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1577, 1590, 1610, 1625, 1650 |
| Tone Detection (Hz) | CW, 270Hz, 330Hz, 1kHz, 2kHz |
