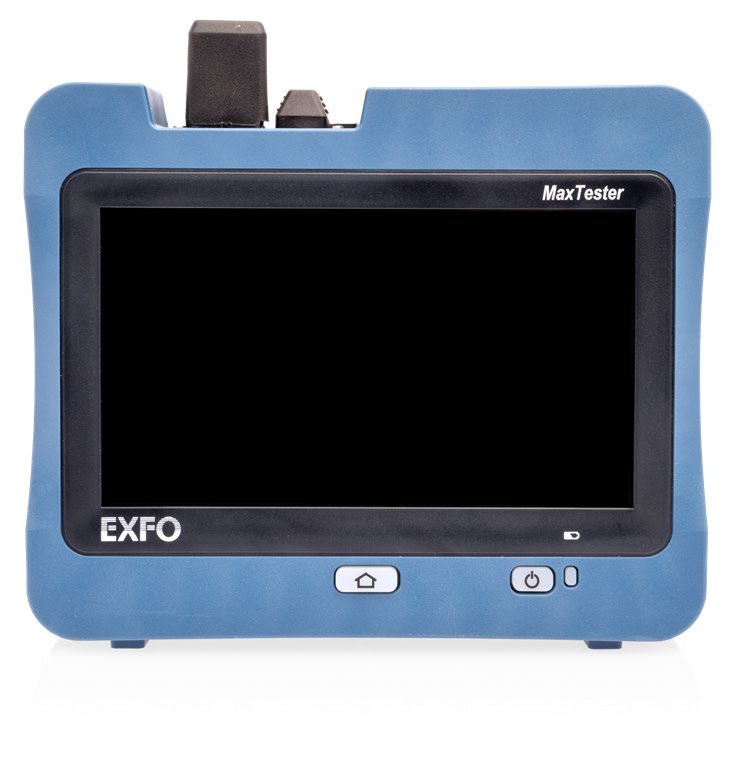

MaxTester 730D PON/metro OTDR
The MaxTester 730D is a fully featured, entry-level, dedicated OTDR with a tablet-inspired design, optimized for testing through optical splitters and suitable for seamless end-to-end FTTH characterization and troubleshooting.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Display | 7in (178mm) outdoor-enhanced touchscreen, 800×480 TFT |
| Interfaces | Two USB2.0 ports, RJ45 LAN 10/100Mbit/s |
| Storage | 2GB internal memory (20000 OTDR traces, typical) |
| Batteries | Rechargeable lithium-polymer battery, 12 hours of operation |
| Power Supply | AC/DC adapter, input 100-240VAC, 50-60Hz |
| Wavelength (nm) | 1310±20/1550±20/1625±10/1650±15 |
| Dynamic Range (dB) | 39/39/39/39 |
| Event Dead Zone (m) | 0.5 |
| Attenuation Dead Zone (m) | 2.2 |
| PON Dead Zone (m) | 30 |
| Distance range (km) | 0.1 to 400 |
| Pulse Width (ns) | 3 to 20000 |
| Loss threshold (dB) | 0.01 |
| Loss Resolution (dB) | 0.001 |
| Sampling Resolution (m) | 0.04 to 10 |
| Sampling Points | Up to 256000 |
| Distance Uncertainty (m) | ±(0.75+0.00025×distance+sampling resolution) |
| Measurement Time | User-defined |
| Reflectance Accuracy (dB) | ±2 |
| Typical real-time refresh (Hz) | 4 |
| Calibrated Wavelengths (nm) | 850, 1300, 1310, 1490, 1550, 1625, 1650 |
| Power Range (dBm) | 27 to -50 |
| Uncertainty (nW) | ±5%±10nW |
| Display Resolution (dB) | 0.01 at max -40dBm, ±0.1 at -40dBm to -50dBm |
| Automatic Offset Nulling Range (dB) | Max power -30dBm |
| Tone Detection (Hz) | 270/330/1000/2000 |
| Visual Fault Locator Wavelength (nm) | 650±10 |
| Visual Fault Locator Modulation | CW/Modulate 1Hz |
| Typical Power (mW) | -1.5 |
| Laser Safety | Class2 |
| In-Line Power Checker Power Range (dBm) | -60 to 23 |
| In-Line Power Checker Power Uncertainty (dB) | ±0.5 |
| In-Line Power Checker Calibrated Wavelengths (nm) | 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 |
| In-Line Power Checker Tone Detection (Hz) | 270Hz, 330Hz, 1kHz, 2kHz |
| In-Line PON Power Meter Power Range (dBm) | -60 to 23 |
| In-Line PON Power Meter Power Uncertainty (dB) | ±0.5 |
| In-Line PON Power Meter Calibrated Wavelengths (nm) | 1310, 1490, 1550, 1625, 1650, 1490/1550, 1490/1577 |
