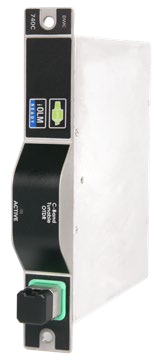

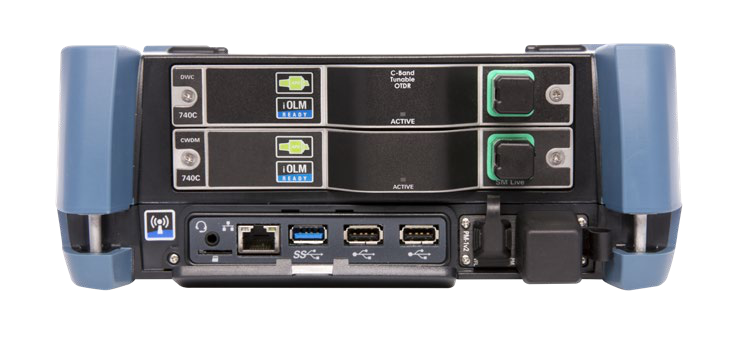

FTBx-740C xWDM OTDR Series
The FTBx-740C xWDM OTDR Series is designed for testing and characterizing CWDM and DWDM networks, providing high-resolution and short dead zones for efficient fiber network troubleshooting and validation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Laser Nominal Wavelength | 1270,1290,1310,1330,1350,1370,1390,1410,1430,1450,1470,1490,1510,1530,1550,1570,1590,1610 nm |
| Central Wavelength Uncertainty | ±3 nm |
| Channel Spacing Tuning | N/A |
| Dynamic Range at 20μs (dB) | ≥37 |
| Event Dead Zone (m) | ≤1.1 |
| Attenuation Dead Zone (m) | ≤3.5 |
| Distance range (km) | 0.1 to 400 |
| Pulse Widths (ns) | 5 to 20000 |
| Sampling Points | Up to 256000 |
| Sampling Resolution (m) | 0.04 to 10 |
| Distance Accuracy (m) | ±(0.75+0.0025×%×distance+resolution) |
| Size (H×W×D) | 158mm×24mm×174mm |
| Weight | 0.4kg |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 0% to 95% non-condensing |
