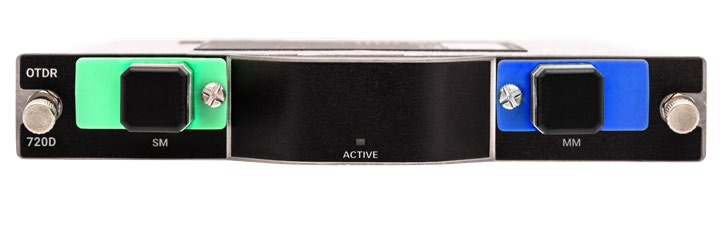

FTBx-720D LAN/WAN Access OTDR

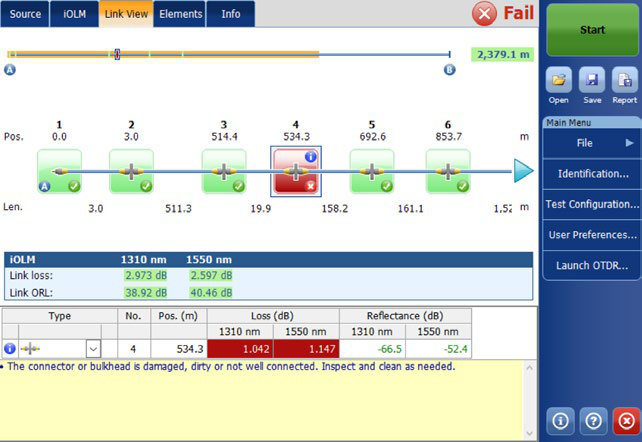

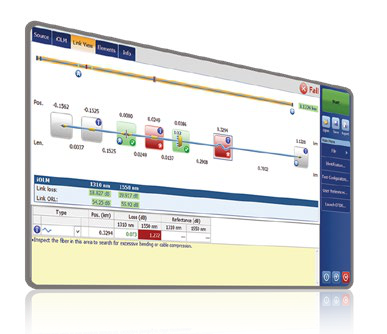

Optimized for multimode and singlemode access network testing, the FTBx-720D is a purpose-built OTDR designed for everyday field testing in any access network. It features intelligent Optical Link Mapper (iOLM) for automated and intelligent troubleshooting, making it ideal for FTTA, LAN, and data center applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (nm) | 850±20/1300±20/1310±30/1550±30/1650±15 |
| Live Wavelength (nm) | 1650 |
| Dynamic Range (dB) | 28/30/38/36/37 |
| Event Dead Zone (m) | SM:0.7 MM:0.7 |
| Attenuation Dead Zone (m) | SM:2.5 MM:2.5 |
| PON Dead Zone (m) | 35 |
| Distance Range (km) | SM:0.1-260 MM:0.1-40 |
| Pulse Width (ns) | SM:3-20000 MM:3-1000 |
| MM Launch Conditions | EF-compliant |
| Linearity (dB) | ±0.03 |
| Loss threshold (dB) | 0.01 |
| Loss Resolution (dB) | 0.001 |
| Sampling Resolution (m) | SM:0.04-10 MM:0.04-5 |
| Sampling Points | Up to 256000 |
| Distance Uncertainty (m) | ±(0.75+0.0025×distance+sampling resolution) |
| Measurement Time | User-defined (maximum: 60 minutes) |
| Reflectance Accuracy (dB) | ±2 |
| Typical real-time refresh (Hz) | 4 |
| Power Range (dBm) | -60 to 23 |
| Power Uncertainty (dB) | ±0.5 |
| Calibrated Wavelengths (nm) | 1310,1490,1550,1625,1650 |
| Selectable Wavelengths (nm) | 1310,1490,1550,1577,1625,1650 |
| Tone Detection | 270Hz,330Hz,1kHz,2kHz |
| Output power (dBm) | SM:-8 MM:-2 |
| Modulation | CW,270Hz,330Hz,1kHz,2kHz |
