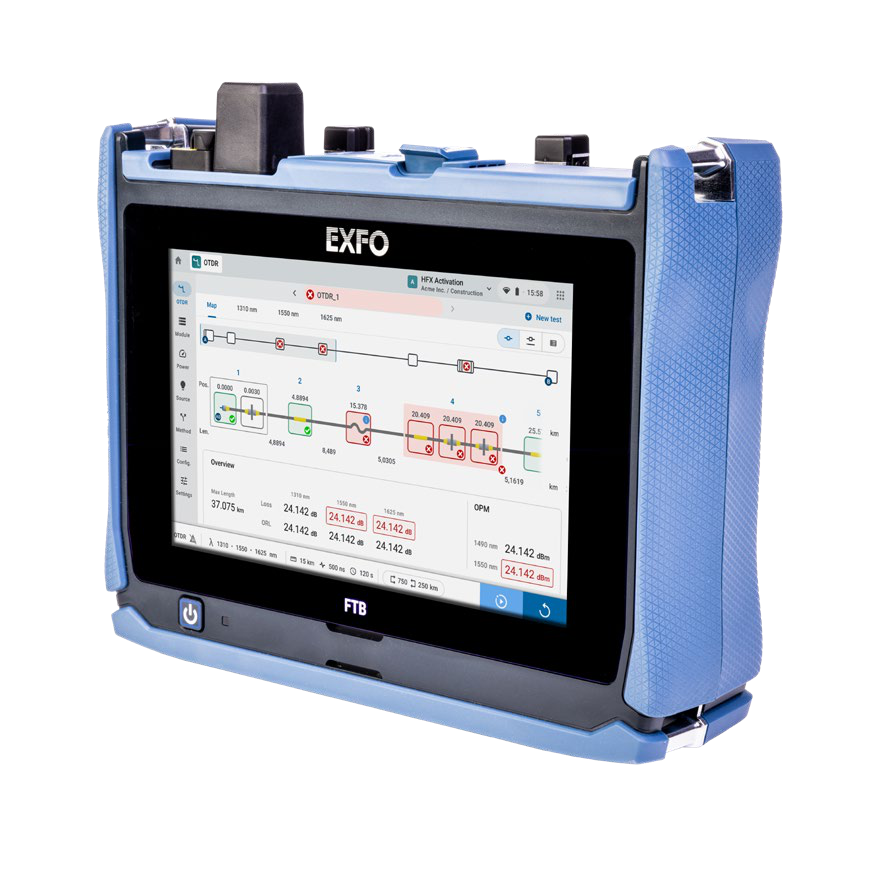

FTB Lite 720D Connected Access OTDR
The FTB Lite 720D is a connected access OTDR optimized for singlemode and multimode access network construction and troubleshooting. It features always-on mobile connectivity and advanced usability for efficient and secure network testing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 850±20/1300±20/1310±30/1550±30/1650±15 |
| Live Wavelength | 1650nm |
| Dynamic Range | 28/30/38/36/37dB |
| Event Dead Zone | SM:0.7m, MM:2.5m |
| Attenuation Dead Zone | SM:2.5m, MM:7.5m |
| PON Dead Zone | 35m |
| Distance Range | 0.1-40km (SM), 0.1-260km (MM) |
| Pulse Width | 3-1000ns (SM), 3-20000ns (MM) |
| MM Launch Conditions | EF-compliant |
| Linearity | ±0.03dB |
| Distance Uncertainty | ±(0.75+0.0025×%×distance×sampling resolution)m |
| Measurement Time | User-defined |
| Reflectance Accuracy | ±2dB |
| Typical Real-time Refresh Rate | 4Hz |
| Built-in Power Meter Specifications - Calibrated Wavelengths | 850, 1300, 1310, 1342, 1358, 1490, 1550, 1577, 1625, 1650nm |
| Built-in Power Meter Specifications - Selectable Wavelengths | 850, 1300, 1310, 1342, 1358, 1490, 1550, 1577, 1625, 1650nm |
| Built-in Power Meter Specifications - Power Range | 27 to -50dBm |
| Built-in Power Meter Specifications - Uncertainty | ±0.5dB |
| Built-in Power Meter Specifications - Resolution | 0.01dB |
| Built-in Power Meter Specifications - Dynamic Range | 40 to -40dBm |
| Built-in Power Meter Specifications - Tone Detection | 270/330/1000/2000Hz |

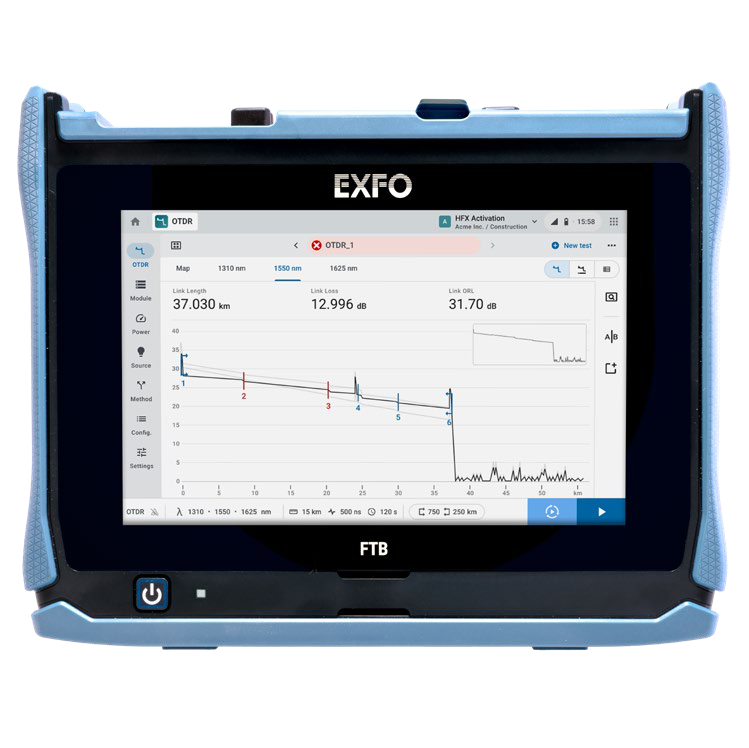

| Display | 8-inch (203mm), 1280×800, color touchscreen (viewable in sunlight) |

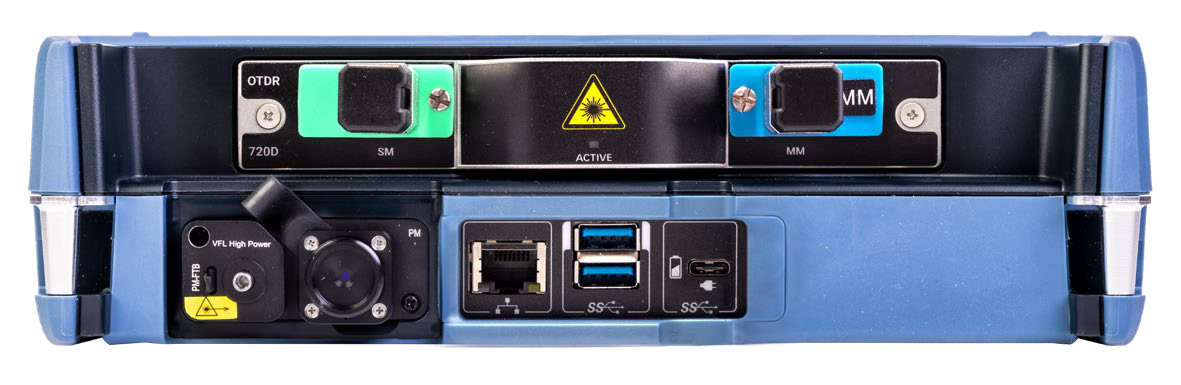

| Interfaces | USB-A ports (2), USB-C port with power delivery, RJ45 LAN 10/100/1000Mbit/s |
| RF Communications | Bluetooth, Wi-Fi, 2G/3G/4G LTE, GNSS (GPS/GALILEO/QZSS) |
| Storage | >20,000 OTDR SOR traces |
| Battery | Rechargeable LiFePO4 battery, up to 10 hours of operation |
| Power Supply | AC/DC adapter, 100 to 240V AC, 50 to 60Hz, 1.5A max; DC 15 to 20V, 3.0A max, USB-C power delivery standard supported |
| Weight | 2.4kg (5.3lb) |
| Dimensions | 198mm×249mm×71mm (7.8in×9.8in×2.8in) |
| Operating Temperature | 0°C to 50°C (14°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 0% to 95% non-condensing |
| Warranty | 1 year |
| VFL Specifications - Operation Mode | Flashing (slow/fast) and continuous |
| VFL Specifications - Flashing Frequency | 1 or 4Hz |
| VFL Specifications - Wavelength | 650nm (typical) |
| VFL Specifications - Emitter Type | Laser |
| VFL Specifications - Power Output | 1mW (typical) |
| VFL Specifications - Distance Range | 5km (typical) |
| VFL Specifications - Laser Safety Class | 2 |
| High-Power VFL Specifications - Operation Mode | Flashing (slow/fast) and continuous |
| High-Power VFL Specifications - Flashing Frequency | 1 or 4Hz |
| High-Power VFL Specifications - Wavelength | 660nm (typical) |
| High-Power VFL Specifications - Emitter Type | Laser |
| High-Power VFL Specifications - Power Output | 12mW (typical) |
| High-Power VFL Specifications - Distance Range | 12km (typical) |
| High-Power VFL Specifications - Laser Safety Class | 3R |
