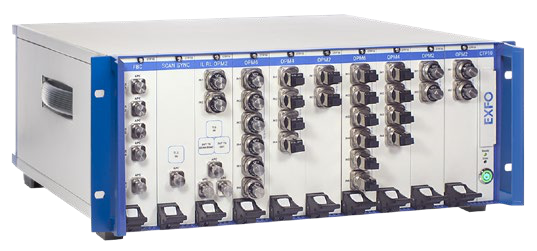

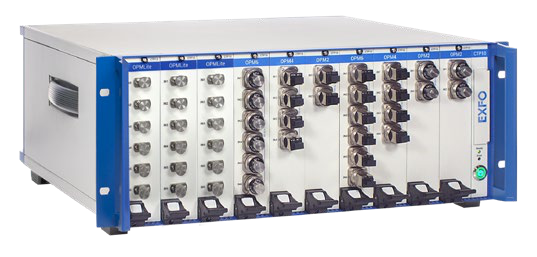

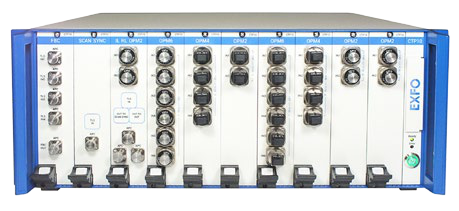

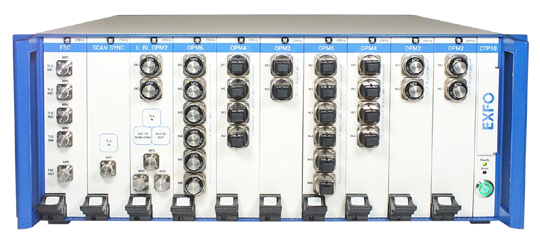

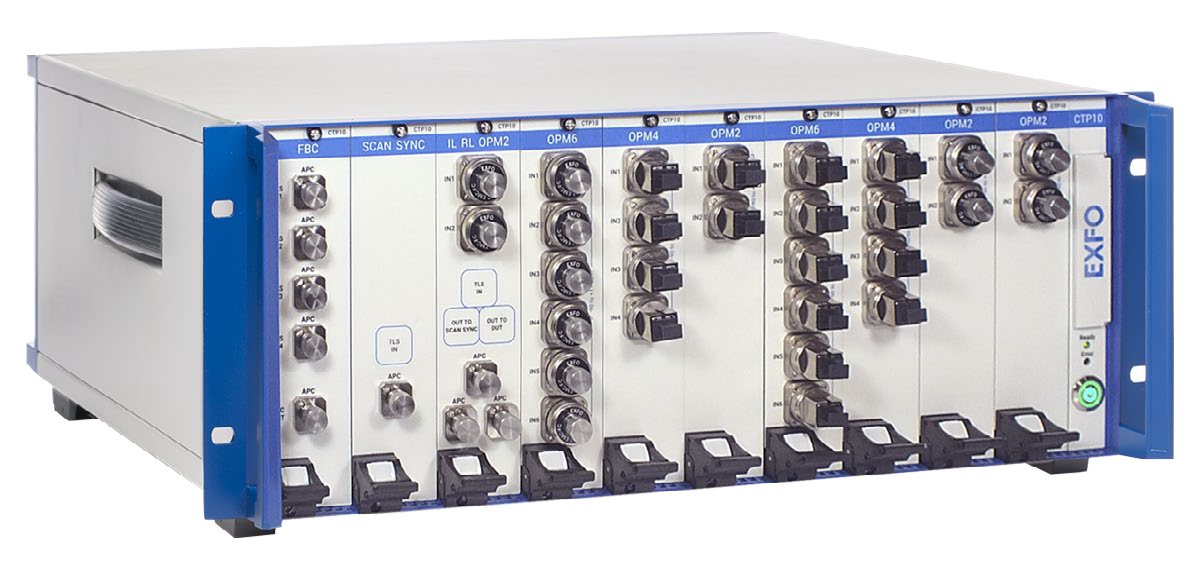

CTP10 Component Test Platform

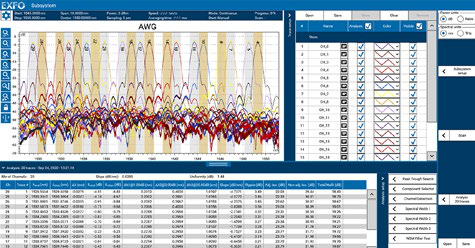

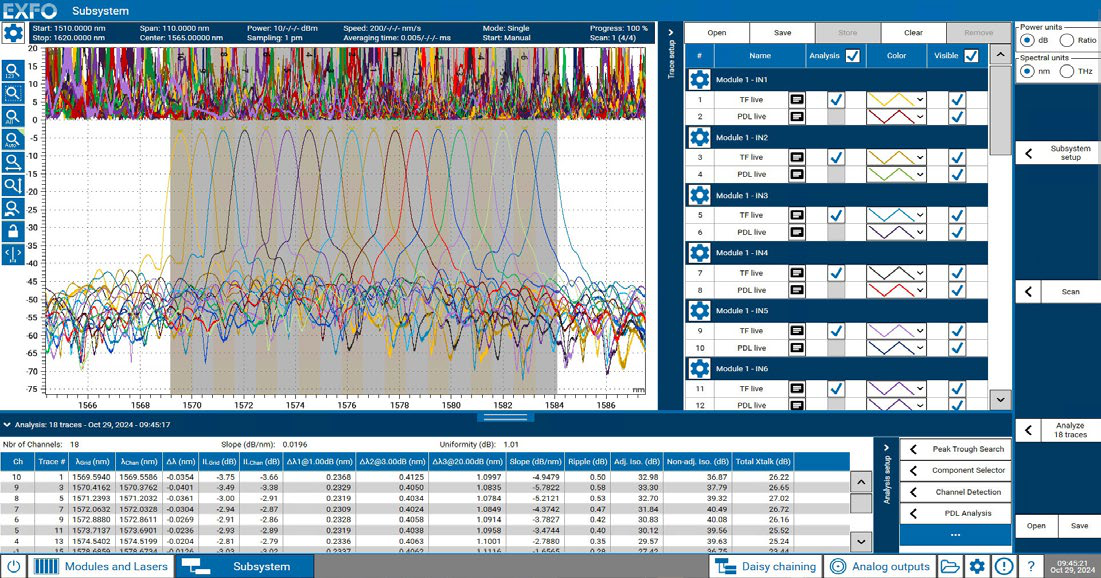

The CTP10 is a modular passive optical component testing platform designed for high-speed, accurate, and flexible testing of passive optical components. It offers advanced spectral characterization methods, including insertion loss (IL), return loss (RL), polarization dependent loss (PDL), and photocurrent measurements across the full telecom wavelength range.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Sensor Type | Temperature-controlled InGaAs (OPMx), Uncooled InGaAs (OPMLite) |
| Compatible Fiber Type | SMF28 |
| Compatible Optical Adaptors | FC or SC connectors (OPMx), Fixed FC/APC connectors (OPMLite) |
| Maximum Safe Power | 11dBm (OPMx), 18dBm (OPMLite) |
| Display Acquisition Resolution | <0.0001dB |
| Return Loss (Typical) | >56dB (OPMx), >49dB (OPMLite) |
| Polarization Dependent Response (Typical) | 0.05dB |
| Insertion Loss Linearity (Characteristic at 10nm/s) | Over 30dB range: ±0.025dB, Over 65dB range: ±0.035dB |
| Insertion Loss Linearity (Characteristic at 100nm/s) | Over 30dB range: ±0.035dB, Over 60dB range: ±0.035dB |
| Photocurrent Range | -85dBmA to 10dBmA |
| Current Uncertainty (Characteristic) | ±1% |
| Linearity (Characteristic) | ±0.05dB ±2pA |
| Noise 2 (Typical at 10nm/s) | 8dBmA to -20dBmA: ±0.005dB, -20dBmA to -40dBmA: ±0.030dB, -40dBmA to -50dBmA: ±0.150dB, -50dBmA to -60dBmA: ±0.500dB |
| Noise 2 (Typical at 100nm/s) | -20dBmA to -40dBmA: ±0.030dB, -40dBmA to -50dBmA: ±0.150dB, -50dBmA to -60dBmA: ±0.500dB |
| Maximum Safe Current | 11dBmA |
| Connectors | Triaxial 2-lug Pomona |
| Photodiode | InGaAs, 1mm diameter photodiode compatible with FOA adaptor |
| Triaxial Cable | 3m long triaxial cable with triaxial 2-lug connectors |

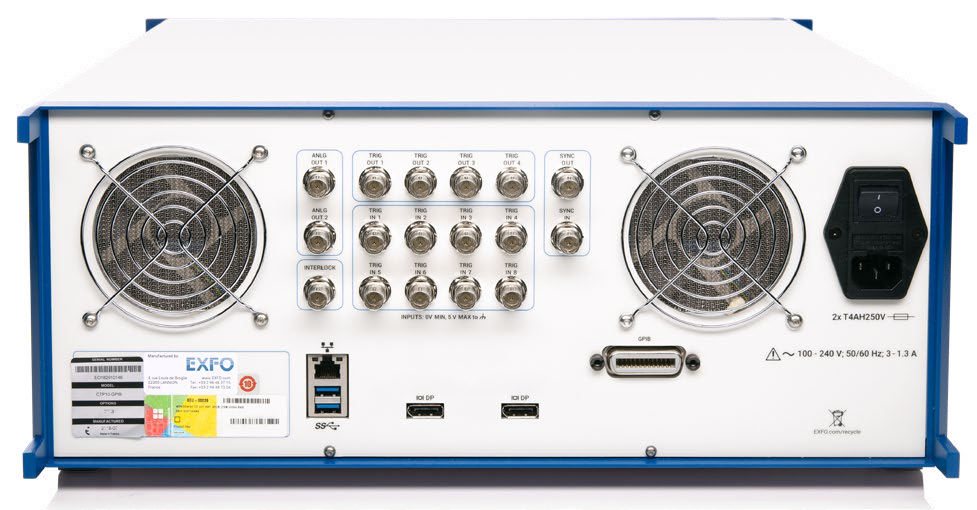

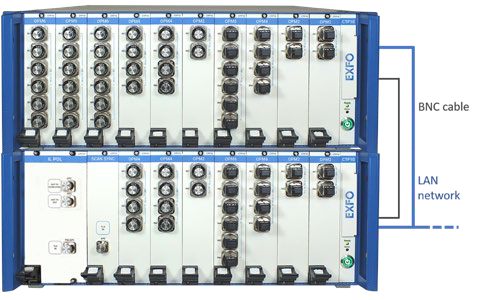

| Display Ports | 2x Display port, compatible with split screen display and touchscreen with multitouch control |
| Remote Interface | Ethernet (Option: GPIB) |
| Electrical Inputs (Hardware Ready) | 10x BNC |

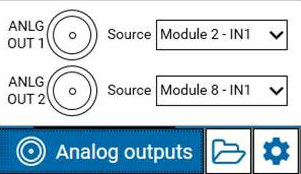

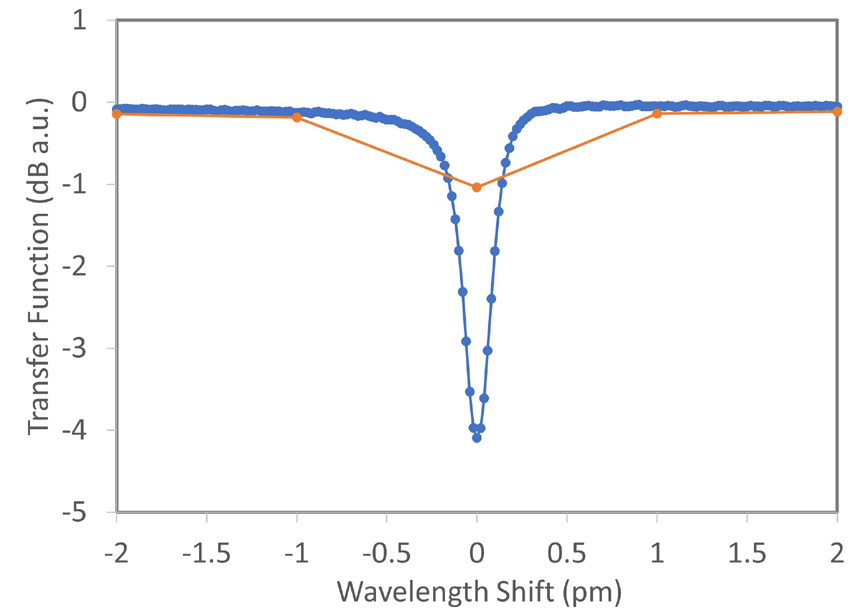

| Electrical Outputs (Hardware Ready) | 7x BNC including 2 analog output ports |
| Number of Module Slots | 10 |
| Other Inputs | 2x USB 3.0, 3x USB-A 2.0 |
| Hard Drive | SSD, 960GB |
| Storage Temperature | -20°C to 65°C (-4°F to 149°F) |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Mainframe Weight | 9.15kg (20.2lb) |
| Module Weight | 1kg to 2.8kg (2.2lb to 6.2lb) |
| Dimensions (Mainframe - H x W x D) | 178mm x 482mm x 435mm (7in x 19in x 17in) |
| Power Supply | 100V to 240V AC (50/60Hz) |
| Specified Wavelength Range | 1260nm–1620nm (IL PDL OPM2), 1250nm–1630nm (IL RL OPM2) |
| Operating Wavelength Range | 1240nm–1680nm |
| Wavelength Uncertainty (Typical) | ±5pm |
| Wavelength Repeatability (Typical) | ±1pm |
| Wavelength Display Resolution | Standard mode: 1pm to 250pm, High-resolution mode: 0.02pm to 0.5pm |
| Measurable Response Variation (Typical) | >10000dB/nm at 100nm/s |
| PDL Measurement Method | 4-States Mueller |
| PDL Uncertainty (Typical at 100nm/s) | ±0.06dB ±1% 'PDL' |
| Dynamic Range (Typical at 10nm/s) | >70dB |
| Dynamic Range (Typical at 100nm/s) | >80dB |
| Insertion Loss | 0dB to 20dB: ±0.005dB, 20dB to 40dB: ±0.010dB, 40dB to 50dB: ±0.030dB, 50dB to 60dB: ±0.075dB |
