FLS-190

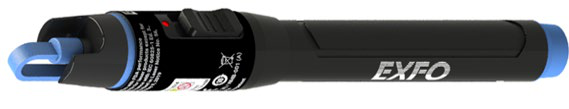

The FLS-190 is a high-power visual fault locator (VFL) designed for technicians to easily identify fiber faults, pinpoint breaks, bends, faulty connectors, splices, and other causes of signal loss over long distances. It is a pocket-sized, pen-style device with a bright red laser for visual fault location.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operation Mode | Flashing and continuous |
| Flashing frequency (Hz) | 2~3 |
| Wavelength (nm) | 650 |
| Emitter type | Laser |
| Power Output (mW) | 5 |
| Distance range (km) | 12 |
| Power Supply | 2 AA alkaline batteries |
| Laser Class | 3R |
| Battery life (h) | Pulsed ≥27, Continuous ≥15 |
| Length | 180mm (7 1/16 in) |
| Maximum diameter | 24mm (15/16 in) |
| Weight | 180g (6.3 oz) |
| Operating Temperature | -10°C to 40°C (14°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
