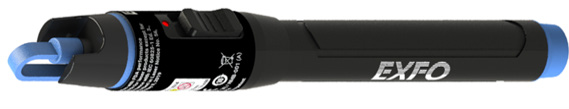

FLS-170
The FLS-170 is a pocket-sized visual fault locator (VFL) designed to identify fiber faults and locate polished connector endfaces. It emits a bright red laser at 650 nm to pinpoint breaks, bends, faulty connectors, splices, and other causes of signal loss in singlemode or multimode fibers.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operation Mode | Flashing and continuous |
| Flashing frequency (Hz) | 2~3 |
| Wavelength (nm) | 650 |
| Emitter type | Laser |
| Power output (max.) | 1mW |
| Distance range (km) | 7 |
| Power Supply | 2 AA alkaline batteries |
| Laser Class | 2 |
| Battery life (h) | Pulsed >27, Continuous >15 |
| Length | 180mm (7 1/16 in) |
| Maximum diameter | 24mm (15/16 in) |
| Weight | 180g (6.3 oz) |
| Temperature (Operating) | -10°C to 40°C (14°F to 104°F) |
| Temperature (Storage) | -40°C to 70°C (-40°F to 158°F) |
