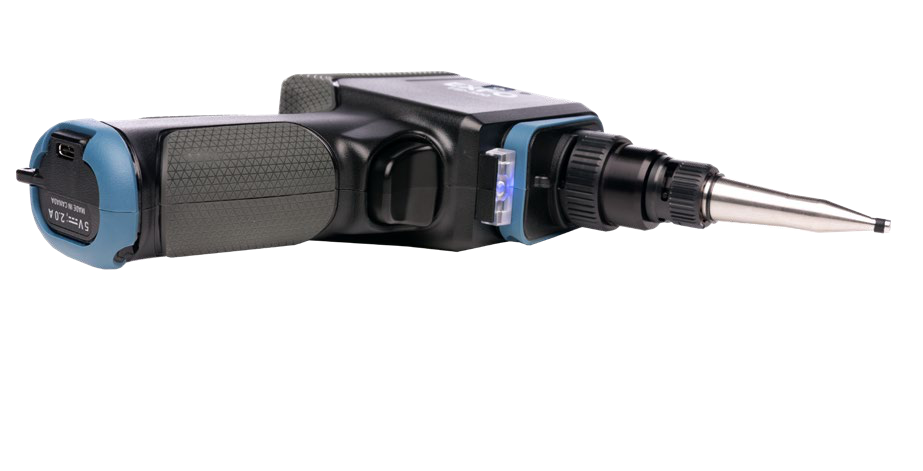

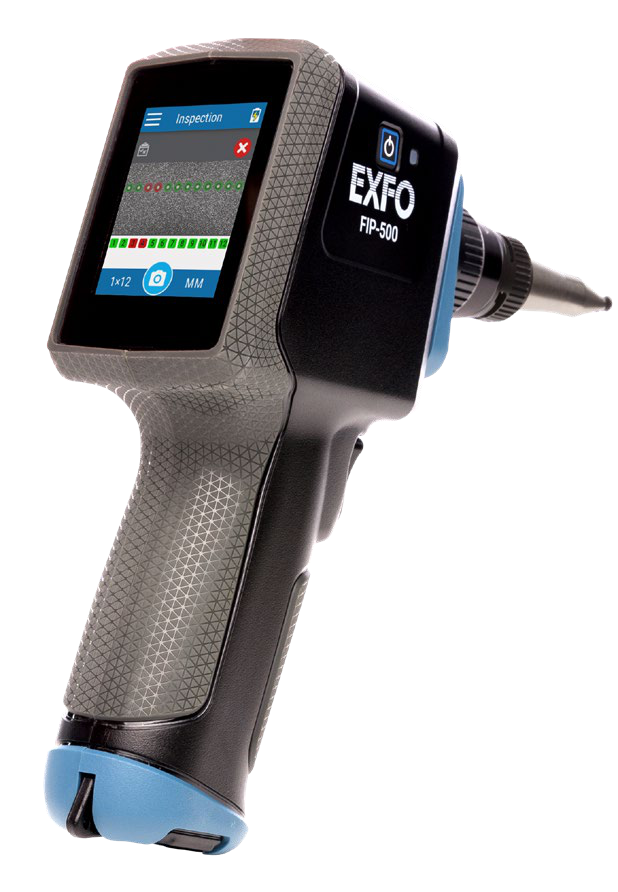

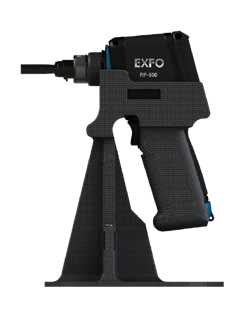

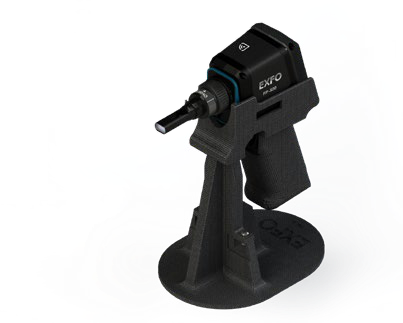

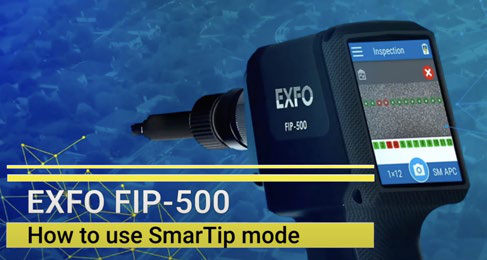

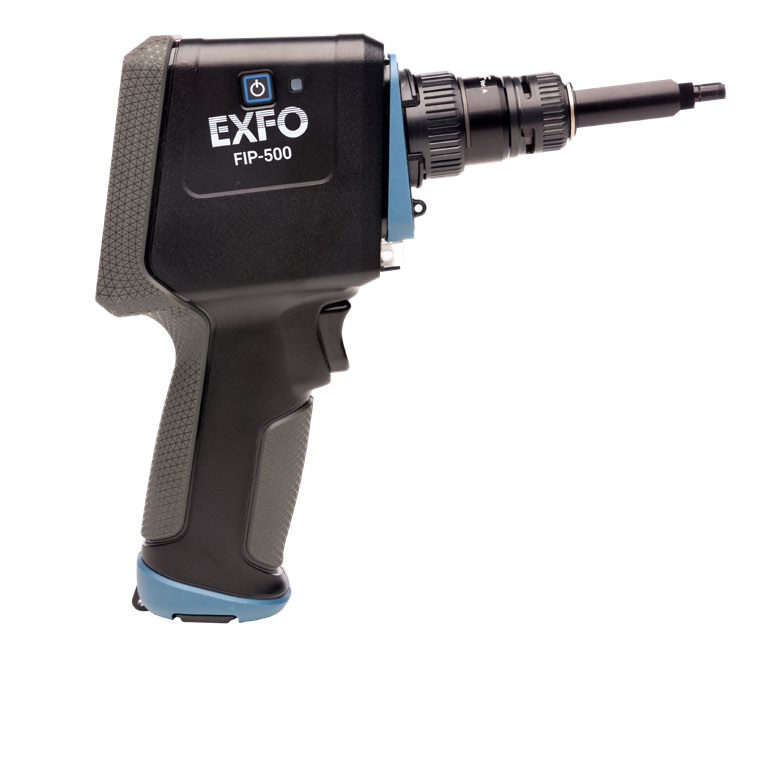

FIP-500 Fiber Inspection Scope
The FIP-500 is an AI-powered automated fiber inspection scope designed for single-fiber, multi-fiber, and duplex connector inspection. It delivers reliable pass/fail results with advanced features like zero-button inspection, automatic threshold adjustment, and smartphone-grade touchscreen.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| End-to-end inspection and analysis time MPO-12 | 10s |
| End-to-end inspection and analysis time MPO-24 | 15s |
| End-to-end inspection and analysis time Single-fiber | 4s |
| Field of view Multi-fiber | 0.23mm×5.16mm |
| Field of view Single-fiber | 0.75mm×0.75mm |
| Pass/fail analysis | IEC 61300-3-35 ED.3(2022), IEC 61300-3-35 (2015), user-set criteria |
| Camera Sensor | 2 sensors of 5 megapixels |
| Light Source | 2 violet LEDs at 415±15nm |
| Lighting technique | Coaxial |
| Lighting technique | pulsed |
| Display | 2.4in IPS color LCD 166dpi + capacitive touchscreen |
| CPU | 1.4GHz dual core |
| Connectivity | Bluetooth, Wi-Fi, USB-C |
| Battery Type | Lithium-ion polymer (Li-Po) rechargeable battery |
| Autonomy | 11 hours |
| Connector | USB-C |
| Local storage capacity | 10000 single-fiber connectors measurements or 5000 duplex-fiber connectors measurements or 2000 multi-fiber connectors (MPO12) measurements |
| Size (H×W×D) | 196mm×230mm×59mm |
| Operating Temperature | -10°C to 40°C (14°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity Range | 0% to 95% non-condensing |
| Supported languages | Chinese (Simplified), English, French, German, Japanese, Korean, Spanish |
| Weight | 580g (1.28lb) |
| Warranty | 1 year |
