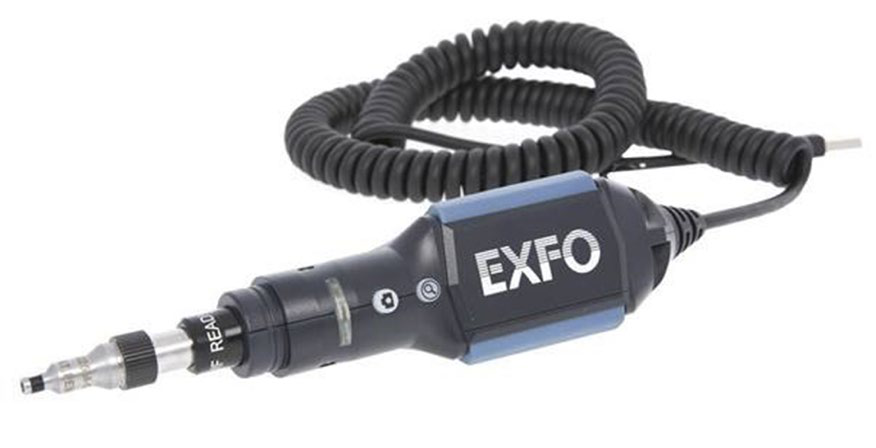

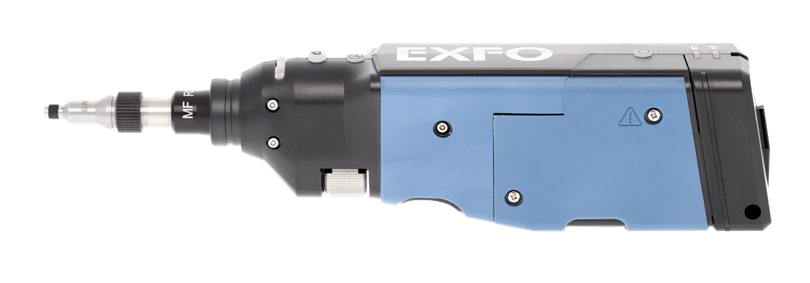

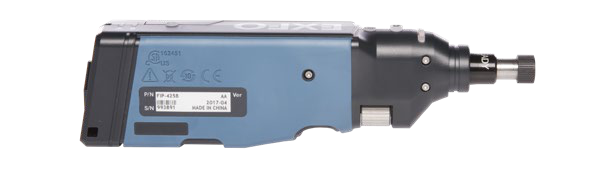

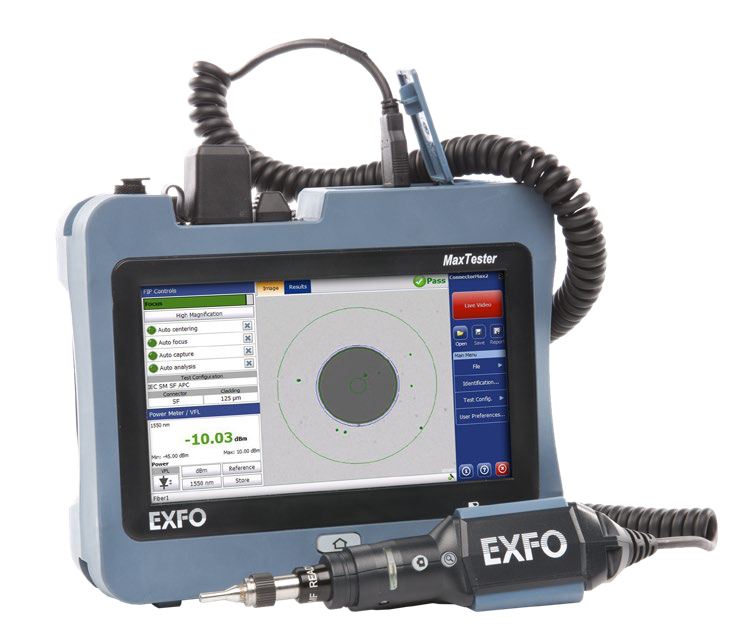

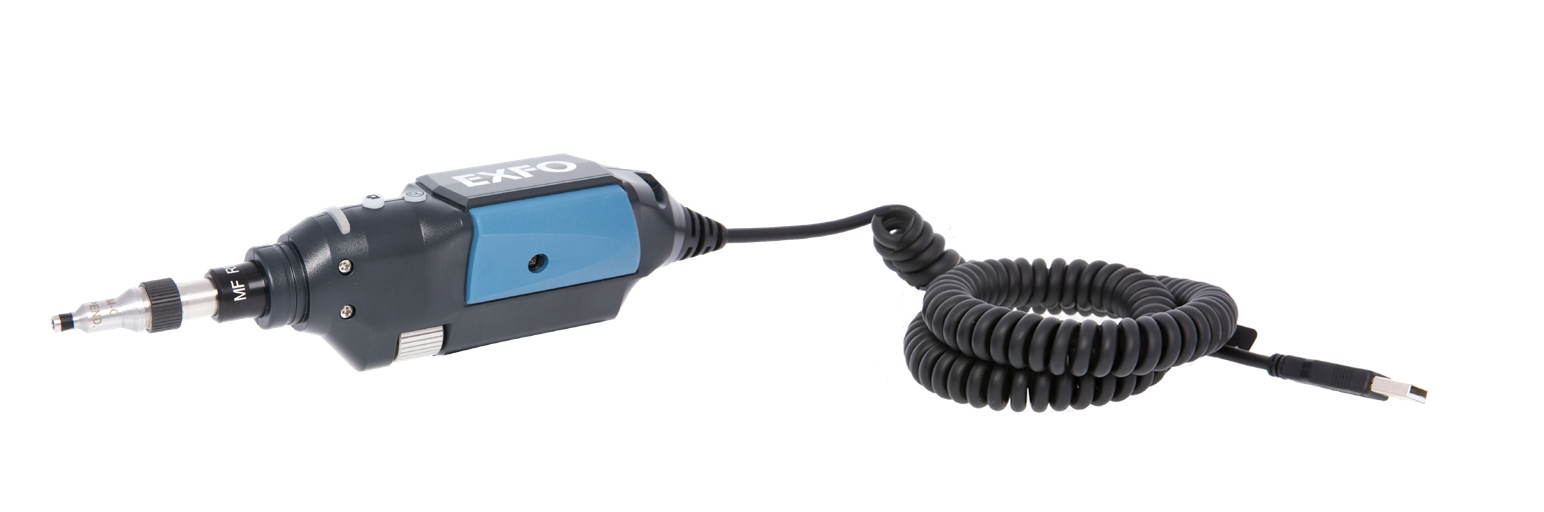

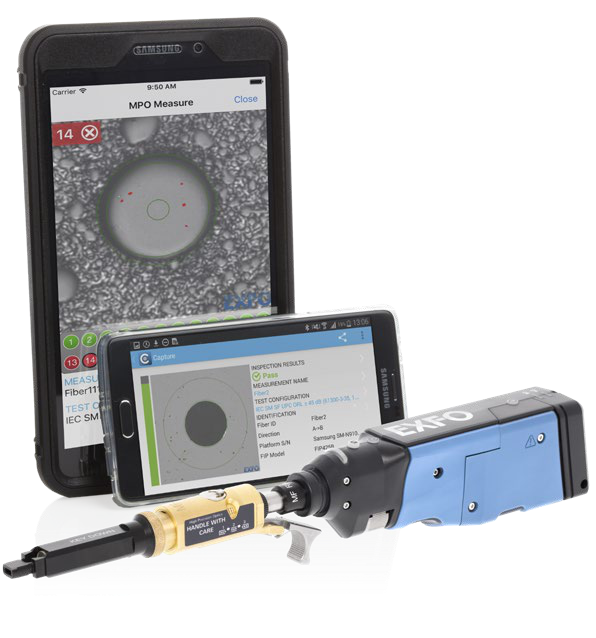

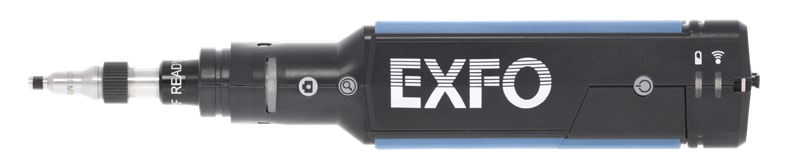

FIP-400B Fiber Inspection Scope Series

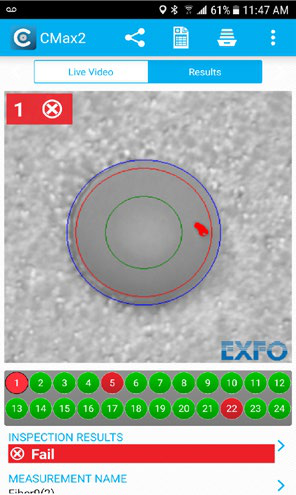

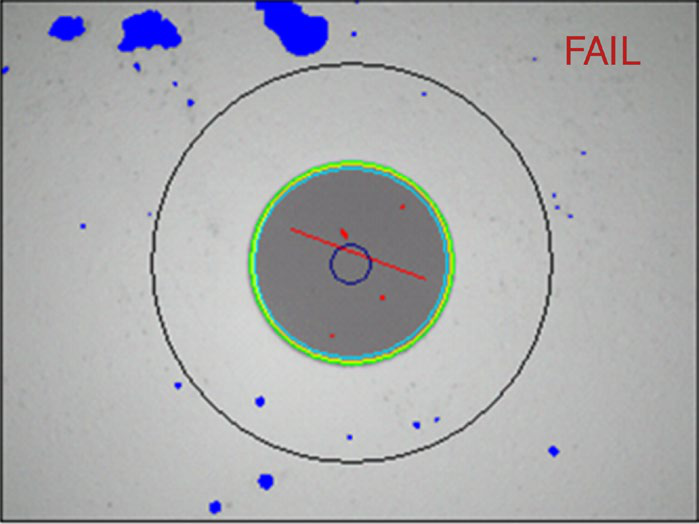

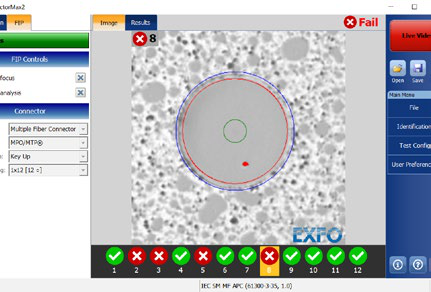

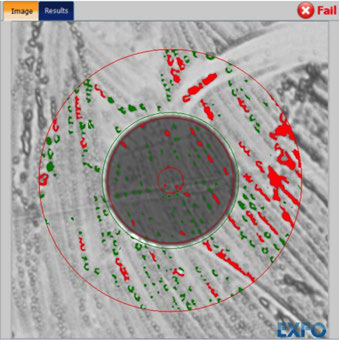

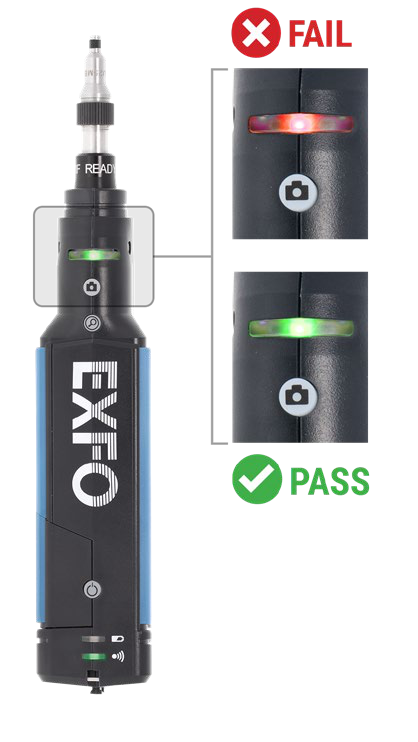

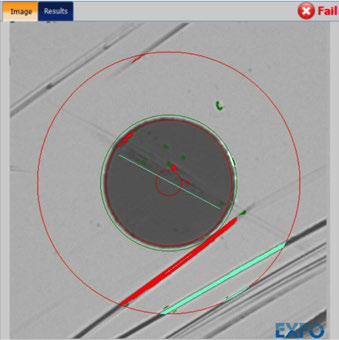

The FIP-400B Fiber Inspection Scope Series is a fully automated WiFi and wired inspection tool designed for single and multifiber connectors. It simplifies the inspection process, provides accurate and consistent test results, and delivers pass/fail assessments quickly and efficiently.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Size (H×W×D) FIP-435B | 55mm×39mm×207mm |
| Size (H×W×D) FIP-4X0B | 47mm×42mm×162mm |
| Weight FIP-435B | 0.3kg |
| Weight FIP-4X0B | 0.3kg |
| Resolution | 0.55μm |
| Camera Sensor | Five-megapixel CMOS |
| Visual Detection Capability | <1μm |
| Field of View (High Magnification) | 304μm×304μm |
| Field of View (Mid Magnification) | 608μm×608μm |
| Field of View (Low Magnification) | 912μm×912μm |
| Light Source | Blue LED |
| Lighting Technique | Coaxial |
| Capture Button | Available on all models |
| Magnification Button | Available on all models |
| Digital Magnification | Three levels |
| Connector FIP-435B | Micro USB |
| Connector FIP-4X0B | Minimum USB 2.0 |
| Frequency Band | 2.4GHz |
| Smart Device OS Compatibility | Android 4.4 and above, iOS 9 and above |
| Power | 1×removable battery |
| Battery Autonomy | ≥8 hours |
| Recharge Time | ≤3 hours |
| Distance Range | 2.5m |
| Operating Temperature (Battery) | -10°C to 40°C |
| Operating Temperature (USB Adapter) | 0°C to 40°C |
| Storage Temperature (Battery) | -20°C to 60°C |
| Storage Temperature (USB Adapter) | -40°C to 70°C |
| Relative Humidity (Battery) | 0% to 95% non-condensing |
| Relative Humidity (USB Adapter) | 5% to 95% non-condensing for storage, 8% to 90% for operating temperature |
| Internal Memory | 2GB |
| Storage Capacity | Up to 4000 fiber certification results |
| Calibrated Wavelengths (GeX) | 850, 1300, 1310, 1490, 1550, 1625, 1650nm |
| Power Range (dBm) | 27 to -50 |
| Uncertainty | ±5% ±10nW |
| Display Resolution (dB) | 0.01 max to -40dBm |
| Visual Fault Locator (VFL) Laser | 650nm ±10nm |
| Laser Safety Class | Class 2 |
