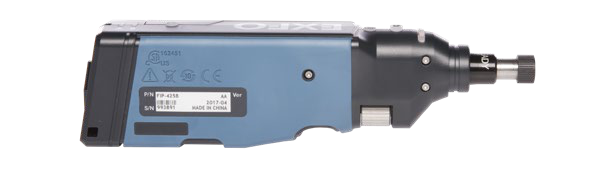

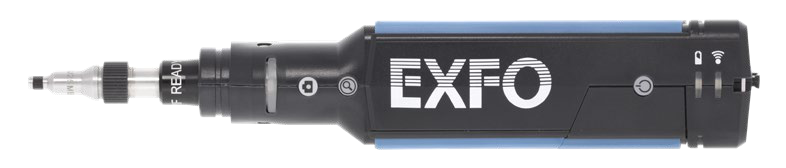

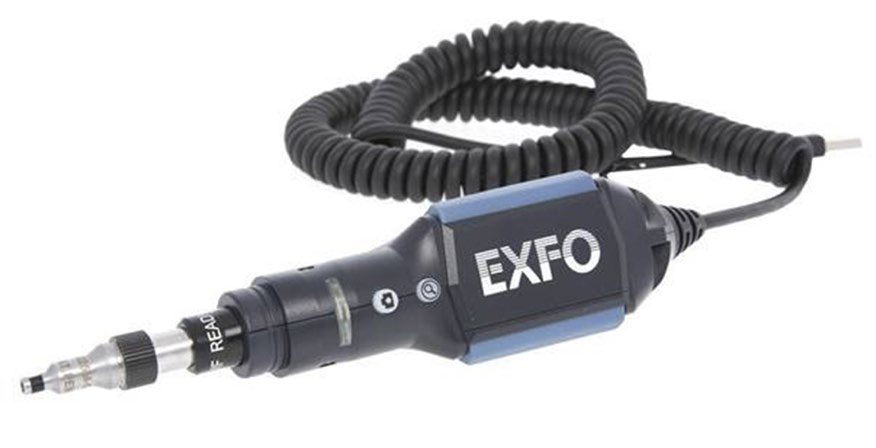

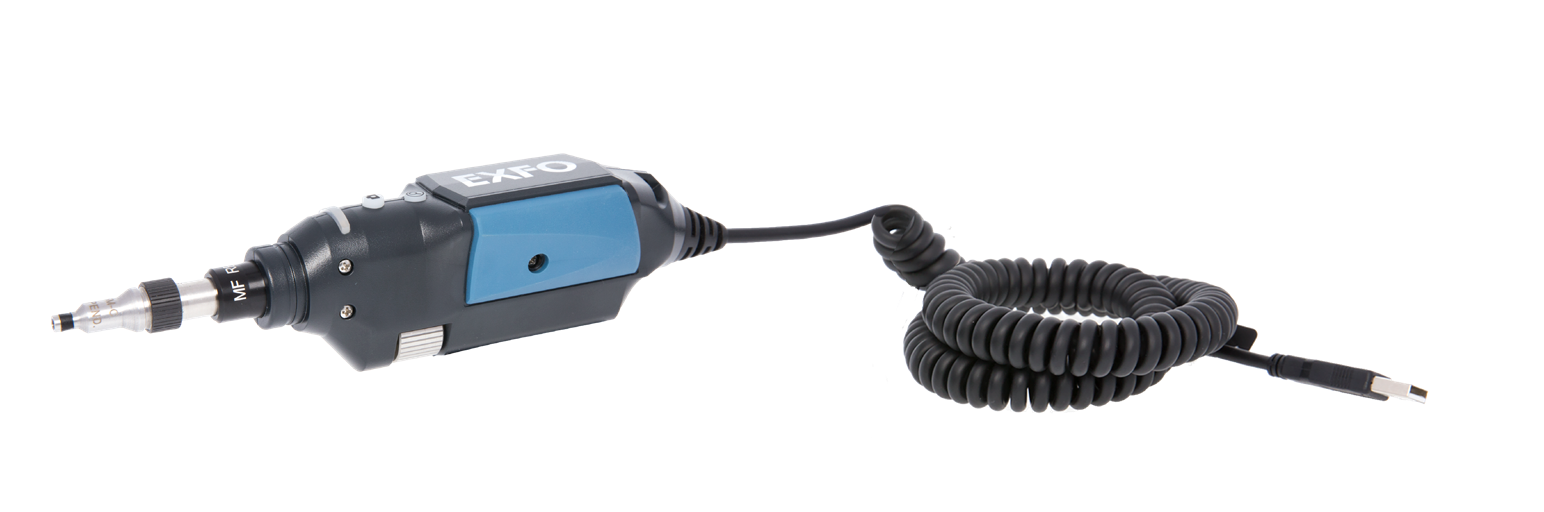

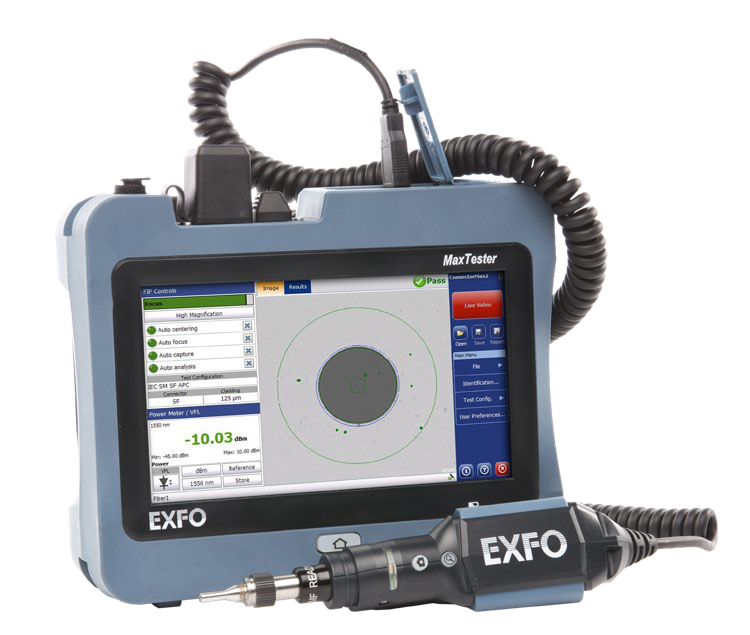

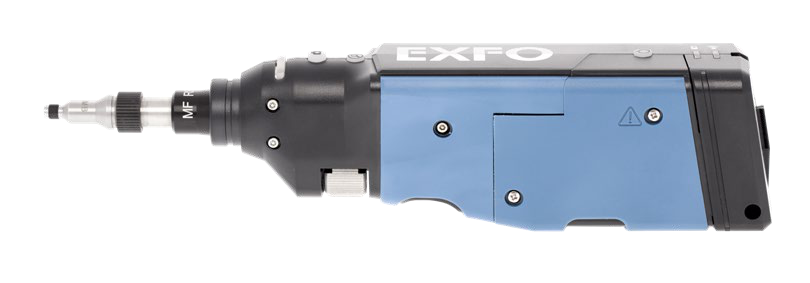

FIP-400B Fiber Inspection Scope Series

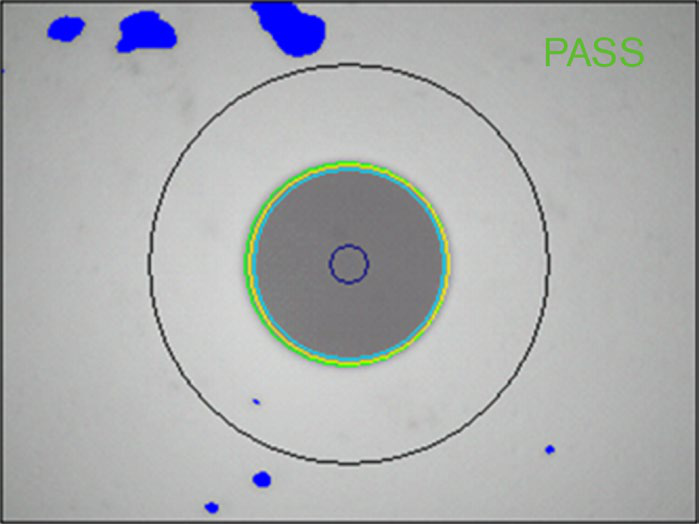

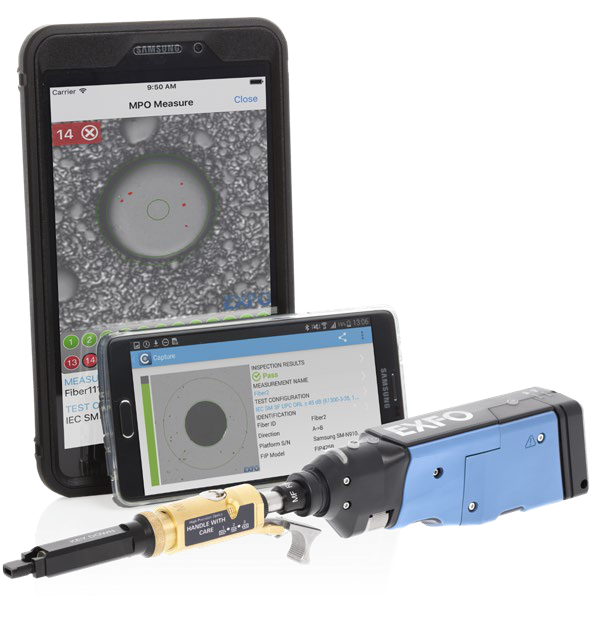

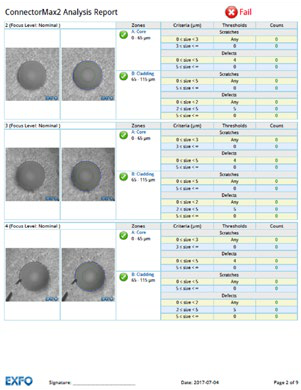

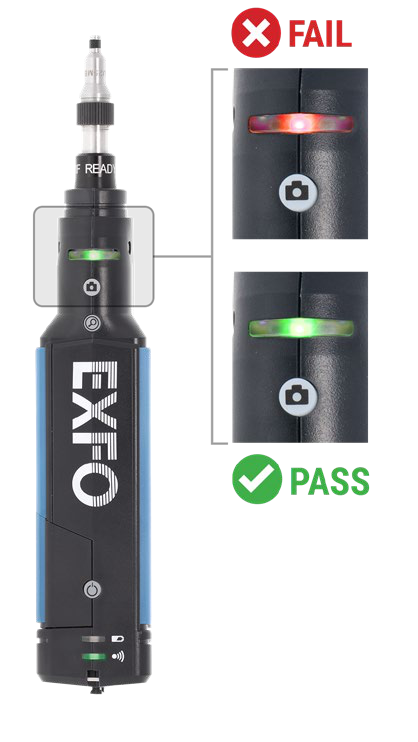

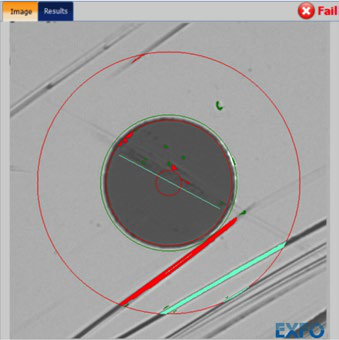

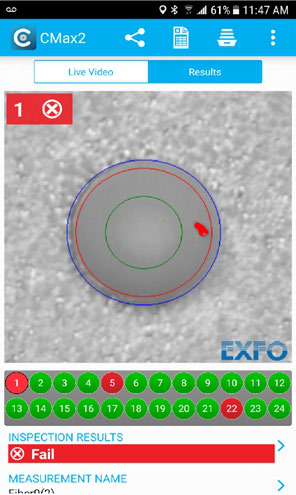

The FIP-400B Fiber Inspection Scope Series is a fully automated WiFi and wired inspection tool designed for fast and consistent test results for single fiber and multifiber connectors. It simplifies the inspection process, provides accurate and reliable pass/fail assessments, and ensures compliance with industry standards.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Size (H×W×D) FIP-435B | 55mm×39mm×207mm |
| Size (H×W×D) FIP-430B | 47mm×42mm×162mm |
| Weight | 0.3kg |
| Resolution | 0.55μm |
| Camera Sensor | Five-megapixel CMOS |
| Visual Detection Capability | <1μm |
| Field of View (High Magnification) | 304μm×304μm |
| Field of View (Mid Magnification) | 608μm×608μm |
| Field of View (Low Magnification) | 912μm×912μm |
| Light Source | Blue LED |
| Lighting Technique | Coaxial |
| Capture Button | Available on all models |
| Magnification Button | Available on all models |
| Digital Magnification | Three levels |
| Connector FIP-435B | Micro USB |
| Connector FIP-430B | Minimum USB 2.0 |
| Frequency Band | 2.4GHz |

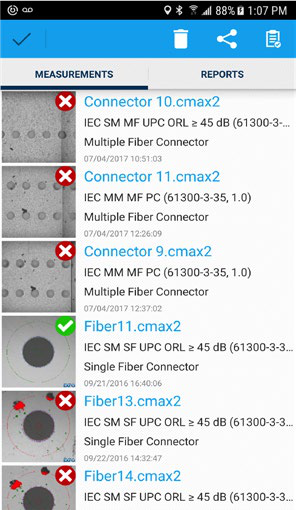

| Smart Device OS Compatibility | Android 4.4 and above, iOS 9 and above |
| Battery Type | 1×Removable battery |
| Battery Life | ≥8 hours |
| Recharge Time | <4 hours |
| Distance Range | 2.5m |
| Operating Temperature | -10°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 0% to 95% non-condensing |
| Calibrated Wavelengths | 850, 1300, 1310, 1490, 1550, 1625, 1650 |
| Power Range (dBm) | 27 to -50 |
| Uncertainty | ±5%±10nW |
| Display Resolution | 0.01dBm |
| Laser | 650nm±10nm |
| Laser Safety | Class 2 |
| Software Compatibility | Windows 7/8/10 (32-bit and 64-bit) |
