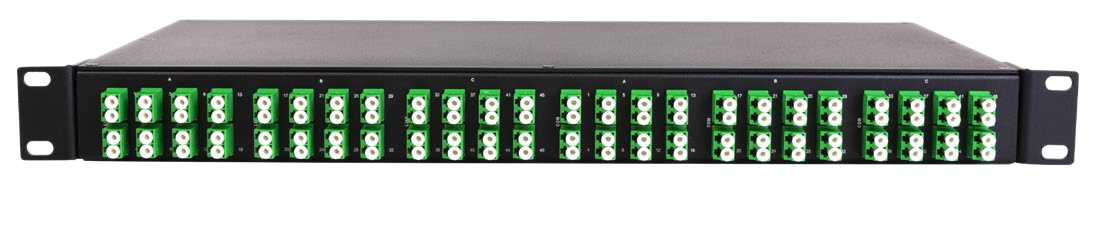

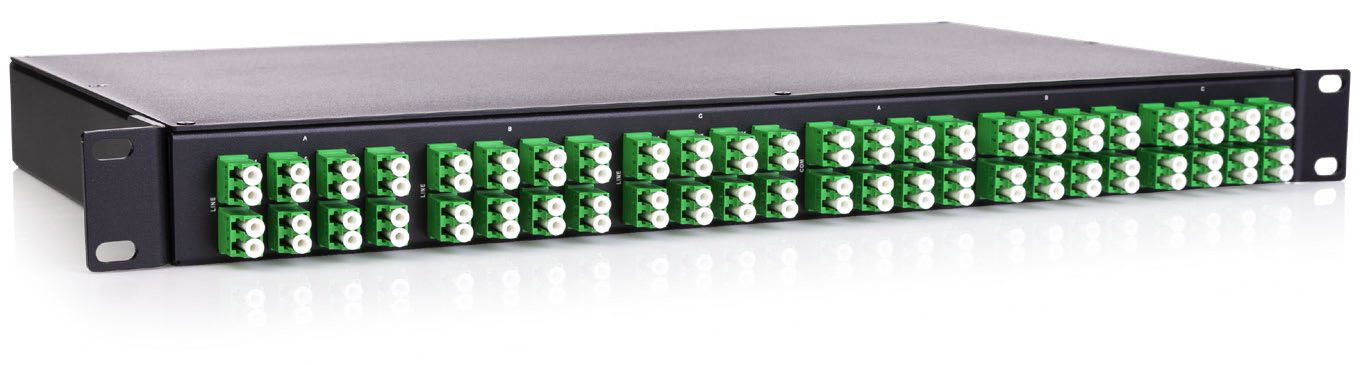

Test Access Module Kit (TAMK)
The Test Access Module Kit (TAMK) is a fiber-optic coupling element designed to combine OTDR signals with live traffic for in-service FTTx line quality assessment. It is part of the Nova Fiber solution and offers high-density construction with 24- and 48-channel WDM kits.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Transmitted Band (nm) 24-WDM | 1260 to 1614 |
| Reflected Band (nm) 24-WDM | 1619 to 1670 |
| Passband Insertion Loss (dB) 24-WDM at 1260-1613 | ≤0.8 |
| Passband Insertion Loss (dB) 24-WDM at 1613-1614 | ≤1.1 |
| Reflected Band Insertion Loss (dB) 24-WDM at 1619-1620 | ≤1.1 |
| Reflected Band Insertion Loss (dB) 24-WDM at 1620-1655 | ≤0.8 |
| Reflected Band Insertion Loss (dB) 24-WDM at 1655-1670 | ≤1.1 |
| Isolation in Transmission (dB) 24-WDM at 1619-1670 | ≥30 |
| PDL (dB) 24-WDM | ≤0.2 |
| Return Loss (dB) 24-WDM | ≥50 |
| Directivity (dB) 24-WDM | ≥50 |
| Fiber Type 24-WDM | SMF 28e+ |
| Connector Type 24-WDM | SC/APC |
| Operating Temperature 24-WDM | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature 24-WDM | -40°C to 85°C (-40°F to 185°F) |
| Package Dimension 24-WDM | 1U rack |
| Transmitted Band (nm) 48-WDM | 1260 to 1608 |
| Reflected Band (nm) 48-WDM | 1615 to 1660 |
| Passband Insertion Loss (dB) 48-WDM at 1260-1608 | ≤0.8 |
| Reflected Band Insertion Loss (dB) 48-WDM at 1645-1655 | ≤0.8 |
| Isolation in Transmission (dB) 48-WDM at 1645-1655 | ≥30 |
| PDL (dB) 48-WDM | ≤0.2 |
| Return Loss (dB) 48-WDM | ≥50 |
| Directivity (dB) 48-WDM | ≥50 |
| Fiber Type 48-WDM | SMF 28e+ |
| Connector Type 48-WDM | Input: 24 fibers MPO/APC female, Output: LC/APC duplex adapters |
| Operating Temperature 48-WDM | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature 48-WDM | -40°C to 85°C (-40°F to 185°F) |
| Package Dimension 48-WDM | Packaged in 19-inch 1U rack, Ear brackets for ETSI (535mm) |
