Optical Explorer

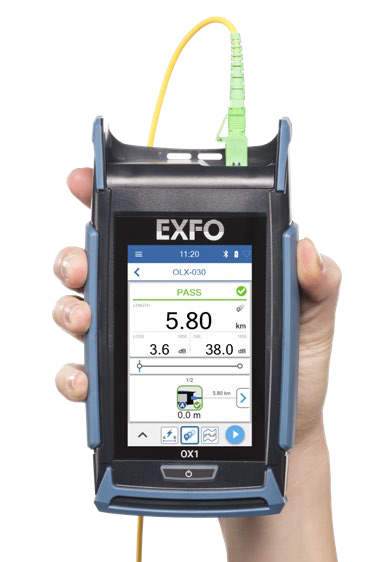

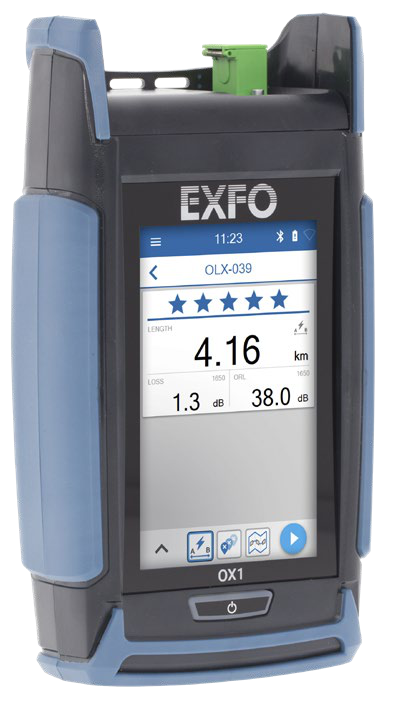

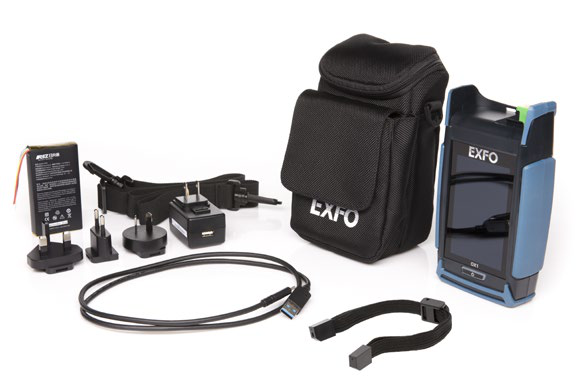

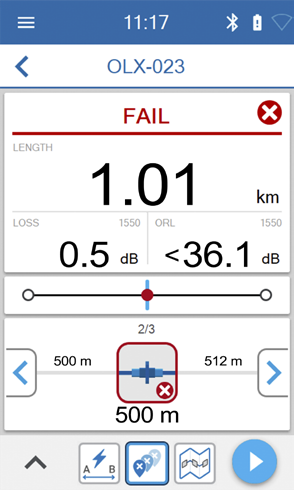

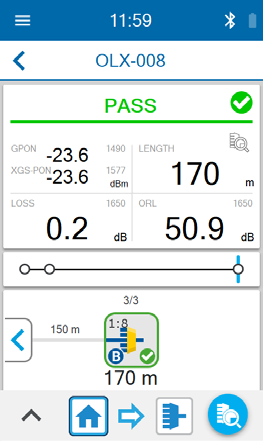

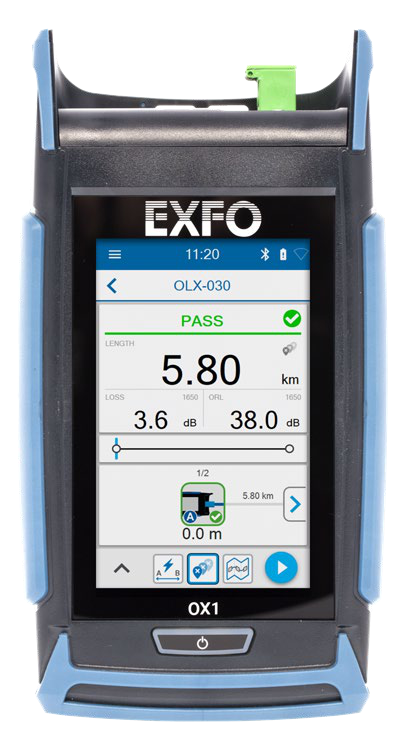

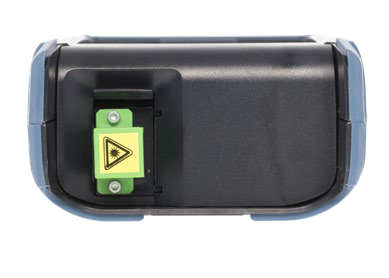

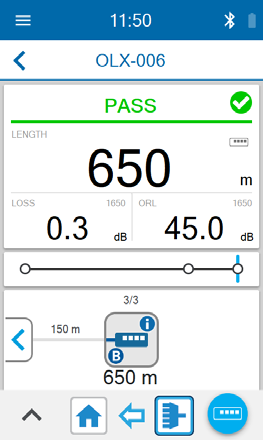

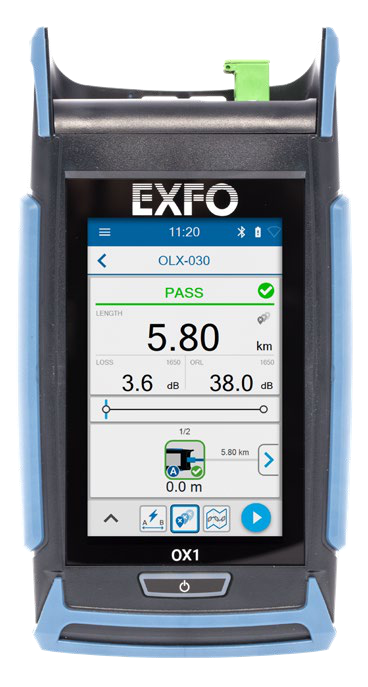

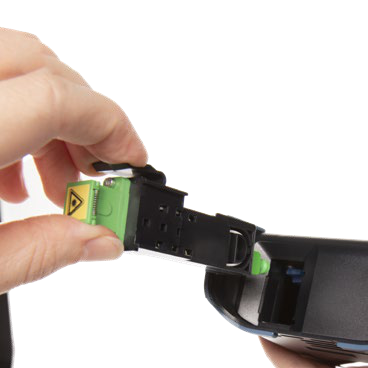

The Optical Explorer is the first optical fiber multimeter (OFM) designed for instant link verification and embedded fault tracking. It simplifies fiber installation, activation, and troubleshooting, offering robust diagnostics and reducing costs.
Save to Favorites
Overview
Specifications

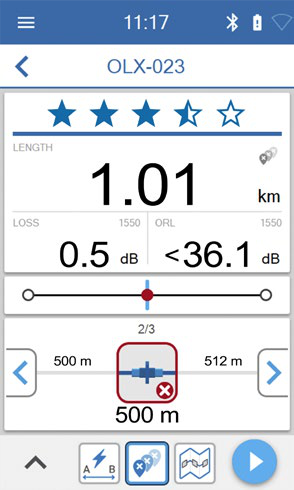

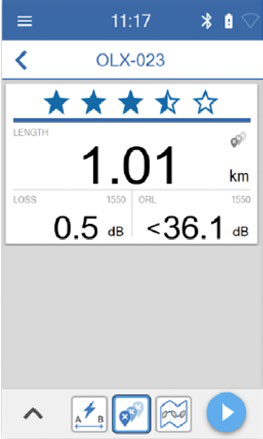

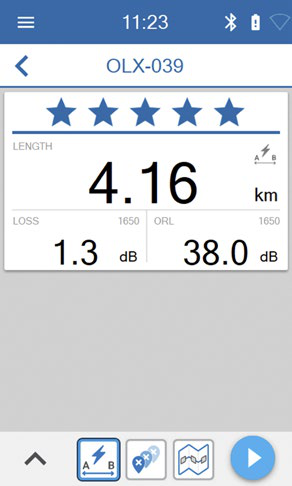

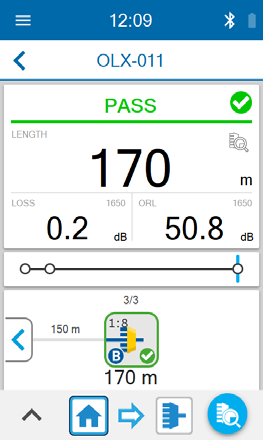

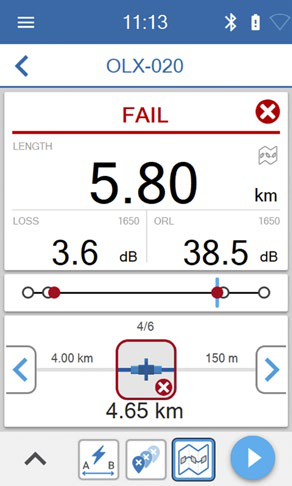

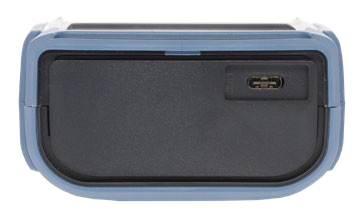

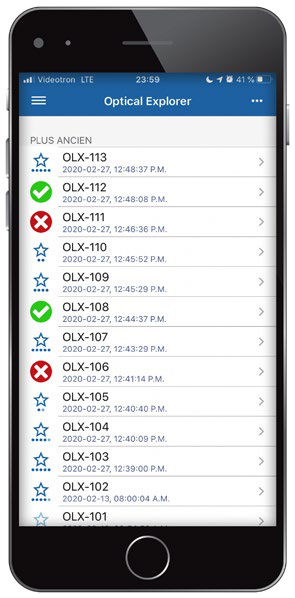

| Parameter | Value |
|---|---|
| Wavelengths | 1310nm±30nm, 1550nm±30nm, 1650nm±10nm |
| Maximum Link Loss (dB) | 15 |
| Testing Time | 3 seconds (Flash Advisor), 5 seconds (Fault Explorer), 10 seconds (Link Mapper) |
| Distance Uncertainty | ±1.5m |
| Calibration Interval (Years) | 10 |
| Splitter Type | Up to 1:64 |
| Maximum Link Length (km) | 20 |
| Maximum Last-Mile Fiber Length (km) | 5 |
| Maximum Last-Mile Link Loss (dB) | 2.5 |
| Minimum Fiber Length After Splitter | 1:2 splitter: 25m, 1:8 splitter: 35m, 1:16 splitter: 150m, 1:32 splitter: 500m, 1:64 splitter: 1000m |
| Power Range (dBm) | -60 to 15 |
| Maximum Input Power (dBm) | 17 (OX1-PRO-M-PPM: 23) |
| Power Uncertainty | ±0.5dB at -20dBm |
| Tone Detection | 270Hz, 330Hz, 1kHz, 2kHz |
| Output power (dBm) | ＞-8 |
| Output Power Stability | ±0.2dB after 30-minute warmup |
| Source Modulation | CW, 270Hz, 330Hz, 1kHz, 2kHz |
| Display | 4-inch touch screen |
| Size (H×W×D) | 171mm×93mm×48mm |
| Weight | 0.5kg |
| Battery Autonomy | ＞10 hours (typical use) |
| Battery Charging | ＜5 hours when unit is off |
| Interfaces | Wi-Fi: 802.11b/g/n 2.4GHz, up to WPA2 encryption; Bluetooth 4.2 with BLE, Class 2 (compatible with 4.0 smartphones) |
| Storage Capacity | 1000 test results |
| Reporting | Single or batch of tests: PDF on the mobile app and FastReporter |
| Operating Temperature | -10°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity Range | ≤93%, non-condensing |
| Drop Resistance | 1m (39in) |
| Display Mirroring | From VNC client |
| Warranty (year) | 1 |
