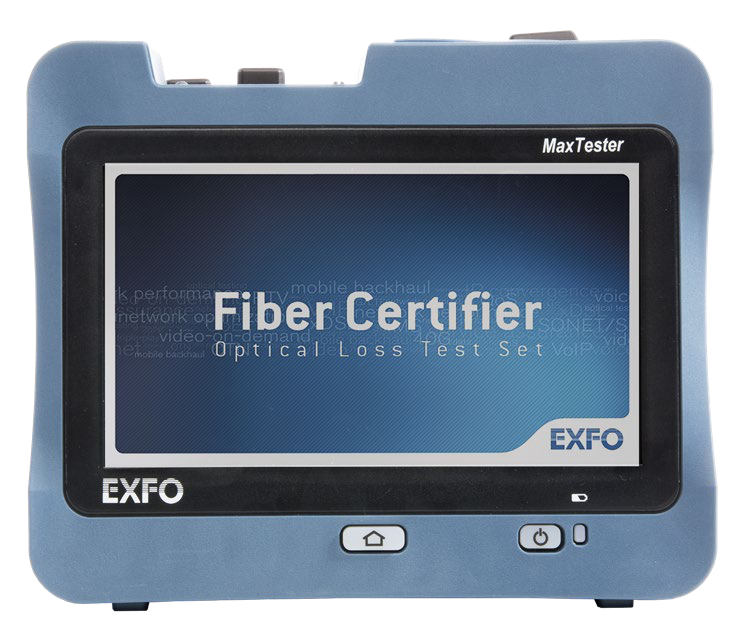

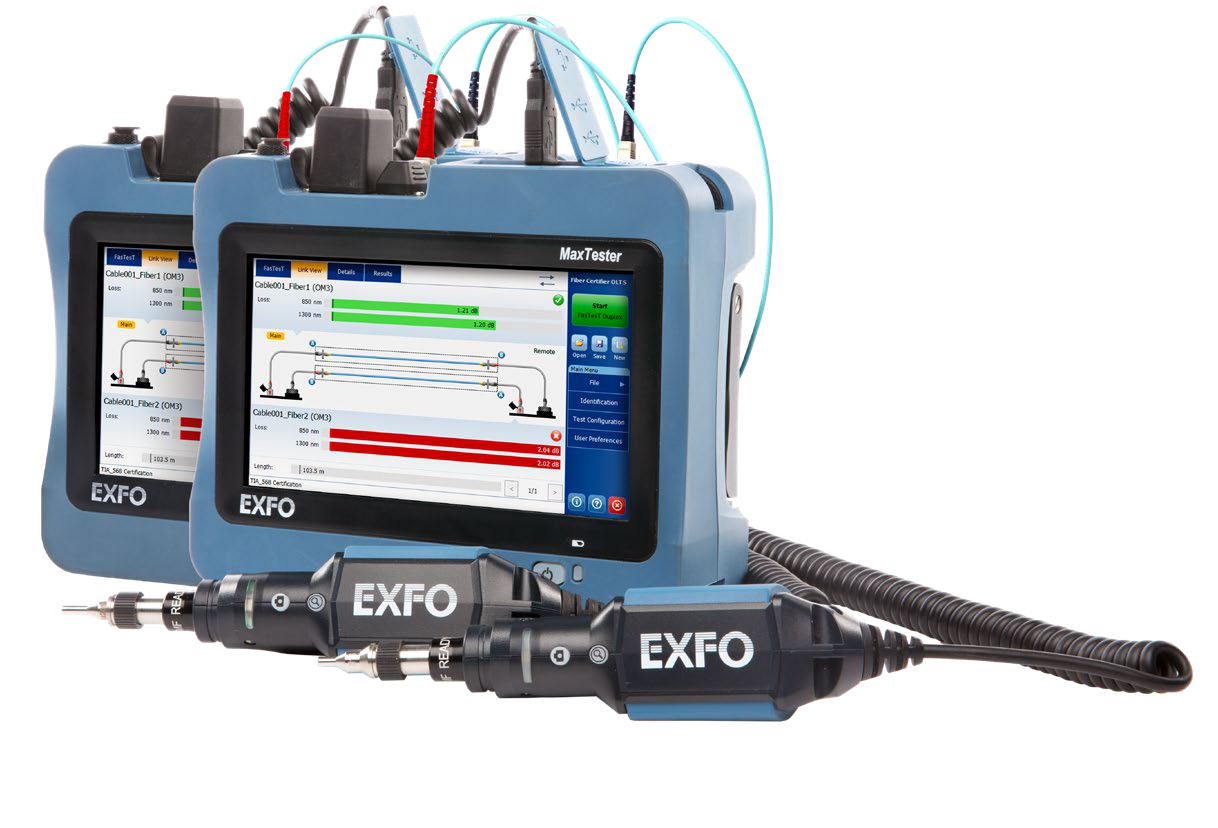

MaxTester 945 Fiber Certifier OLTS
The MaxTester 945 Fiber Certifier OLTS is a fully featured Tier-1 fiber certifier designed for data center and enterprise networks. It offers a tablet-inspired design, intuitive interface, and fast learning curve, ensuring optimized and efficient fiber certification.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Software update | Ensure up-to-date software |
| VNC configuration | Allows remote control via computer or laptop |
| Microsoft Internet Explorer | Access the web directly from the device interface |
| Data mover | Transfer daily test results quickly and easily |
| Centralized documentation | Instant access to user guides and other documents |
| Wallpapers | Enhance work environment with colorful backgrounds |
| PDF Reader | View reports in PDF format |
| Bluetooth file sharing | Share files between MaxTester and Bluetooth-enabled devices |
| WiFi connection | Wireless inspection scope interface |
| WiFi connection | upload test results |
| WiFi connection | browse the Internet |

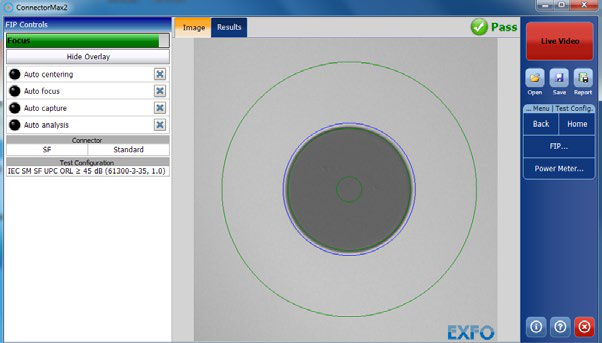

| Inspection scope | USB or WiFi scope to inspect and analyze connectors |
| Detector Type | GeX |
| Uncertainty | ±(5%+10nW) |
| Measurement Range (dBm) | 25 to -50 |
| Wavelengths range (nm) | 850,1300,1310,1490,1550,1577,1625,1650 |
| Tone Detection (Hz) | 270/330/1000/2000 |
| Testing Speed | FasTest Duplex: 2.6 seconds, FasTest Simplex: 5 seconds |

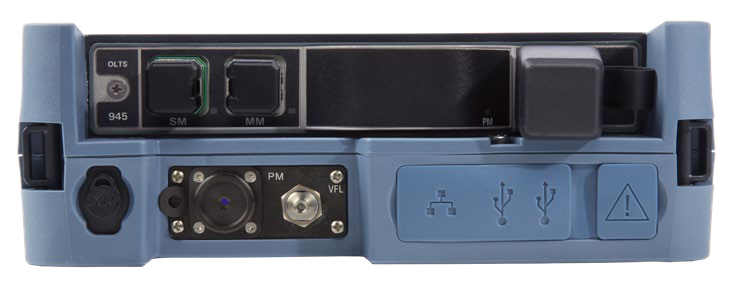

| Input/Output Connectors | Interchangeable adapter (LC, SC or FC) |
| Wavelengths (nm) | 850±20, 1300±20, 1310±20, 1550±20 |
| Source type | LED (multimode), Laser (singlemode) |
| Launch Condition | EF compliance guaranteed at multimode source port |
| Loss range (dB) | Multimode: 20, Singlemode Simplex: 45, Singlemode Duplex: 50 |
| Length measurement range (km) | Multimode: 20, Singlemode: 160 |
| Length Measurement Uncertainty | ±(0.5%×length) |
| ORL Measurement Range (dB) | 50 |
| ORL Measurement Uncertainty (dB) | ±1 |
| Output power (dBm) | Multimode: -25, Singlemode: 2.5 |
| Output Power Stability (dB) | ±0.05 over 8h |
| Spectral width (FWHM) (nm) | 850nm: 30-60, 1300nm: 100-150 |
| Display | 7-inch (178mm) touchscreen, 800×480 TFT |
| Size (H×W×D) | 166mm×200mm×68mm |
| Weight (with battery) | 1.5kg (3.3lb) |
| Interfaces | Two USB2.0 ports, RJ45 LAN 10/100Mbit/s |
| Storage | 6GB internal memory (150,000 test results) |
| Battery | Rechargeable lithium-polymer battery, 12 hours of operation |
| Power Supply | AC/DC adapter, input 100-240VAC, 50-60Hz, 9-16V DCIN 20W minimum |
| Warranty | 1 year |
| Calibration interval (years) | 3 years |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -30°C to 70°C |
| Relative Humidity | 0% to 95% non-condensing |
| Laser Safety Class | Class 1 |
| Visual fault locator laser wavelength (nm) | 650±10 |
| Visual fault locator typical power (dBm) | -1.5 |
| Visual fault locator modulation frequency (Hz) | 1 |
