FIP-400B Fiber Inspection Scope Series

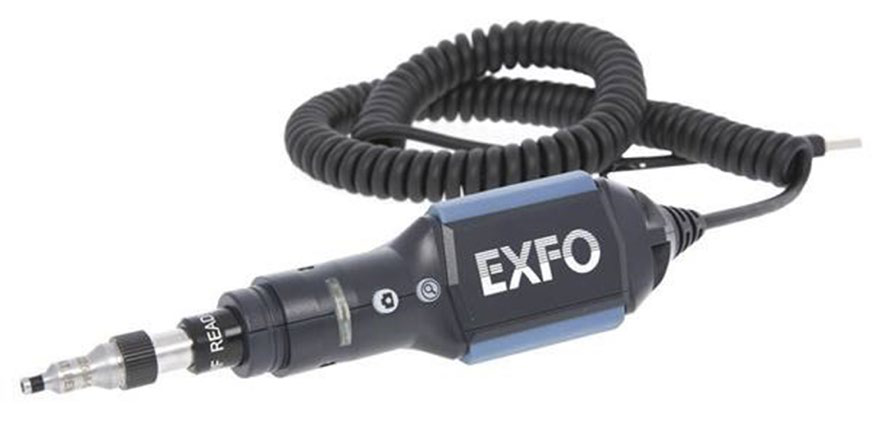

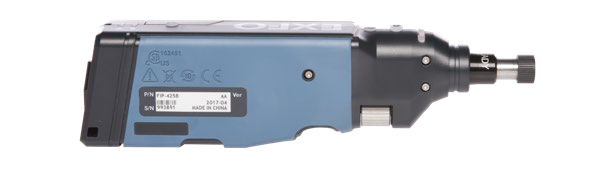

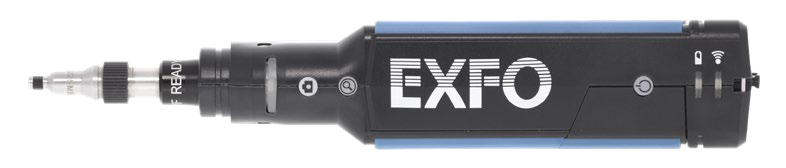

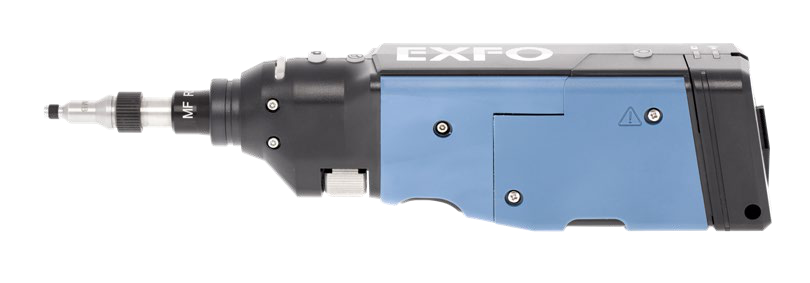

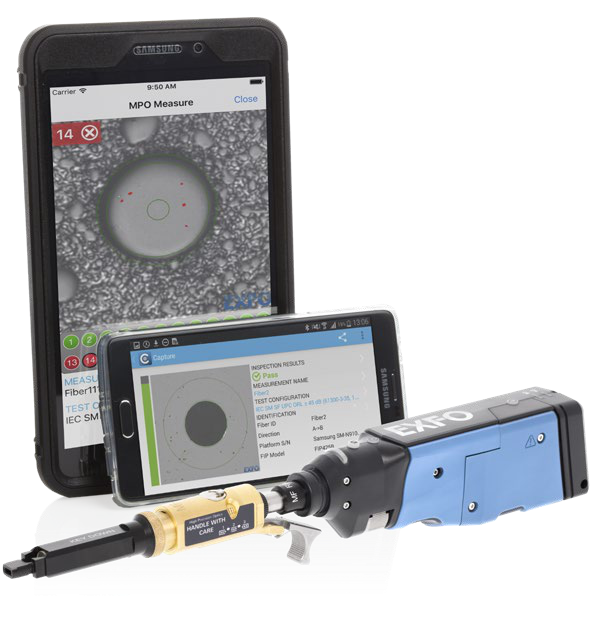

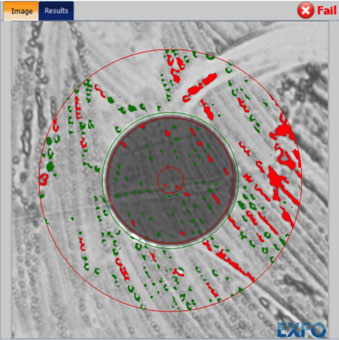

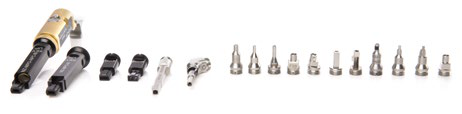

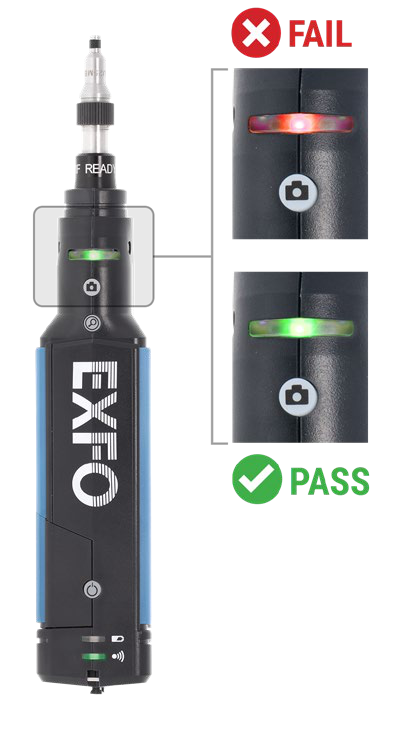

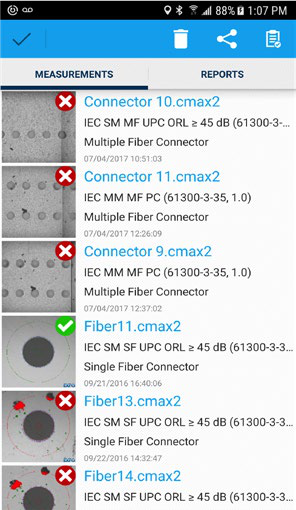

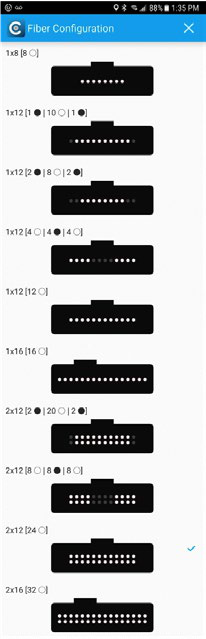

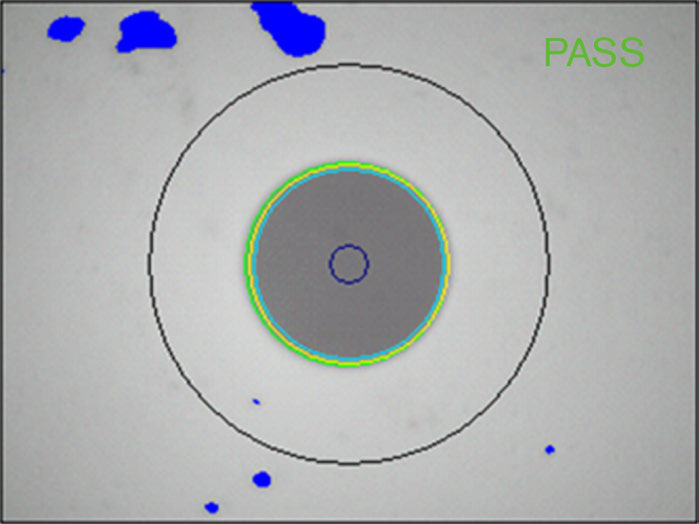

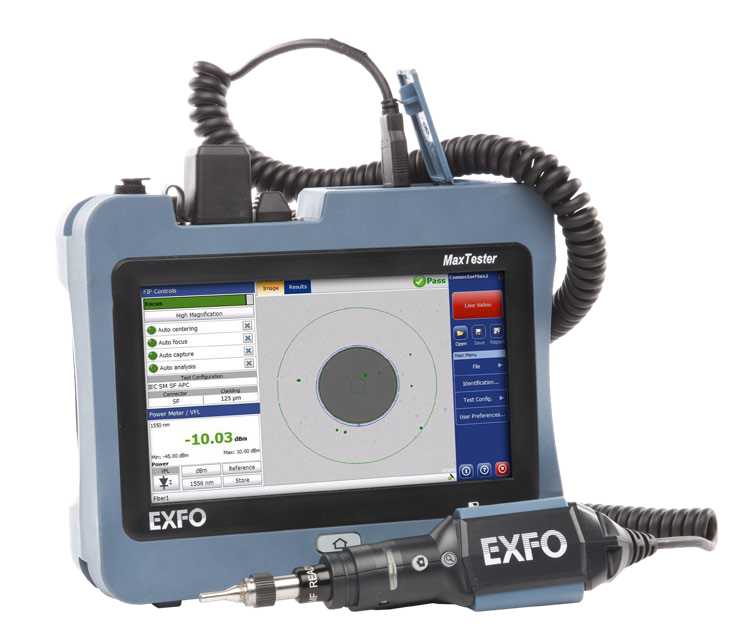

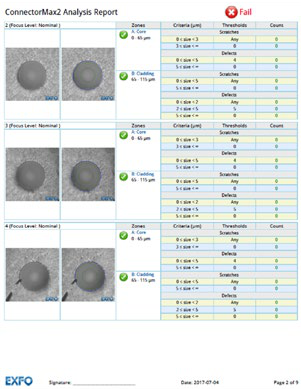

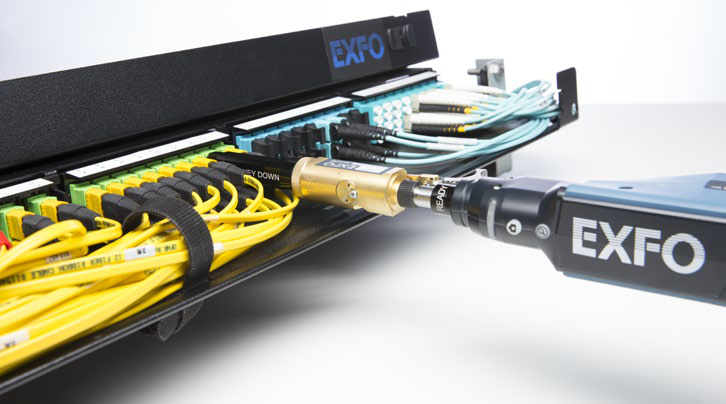

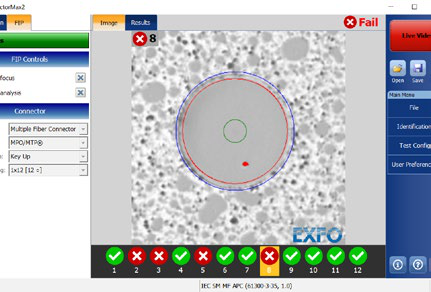

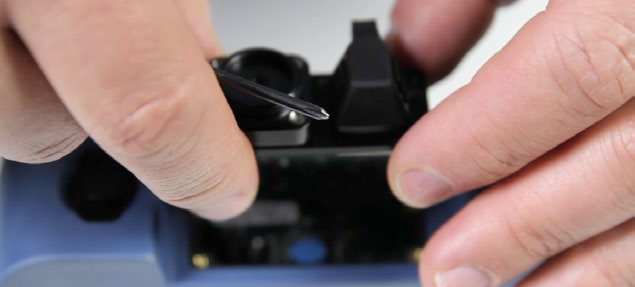

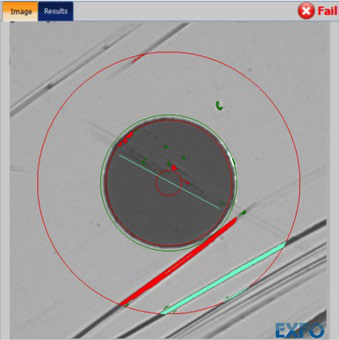

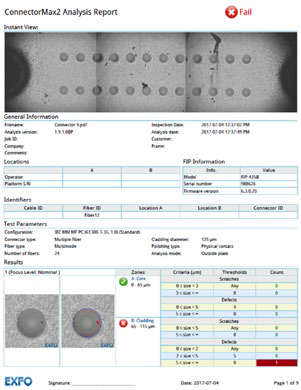

The FIP-400B Fiber Inspection Scope Series is a fully automated solution for inspecting single and multifiber connectors. It simplifies the inspection process, delivers accurate and consistent test results, and provides pass/fail assessments quickly and easily.
Save to Favorites
Overview
Specifications

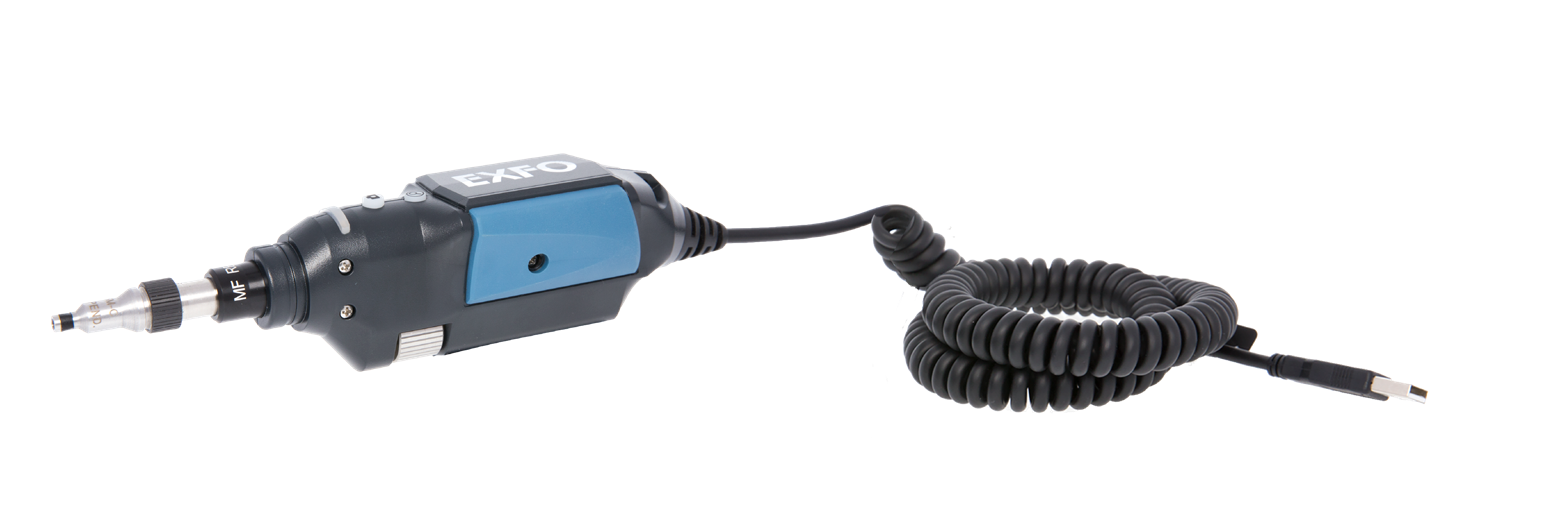

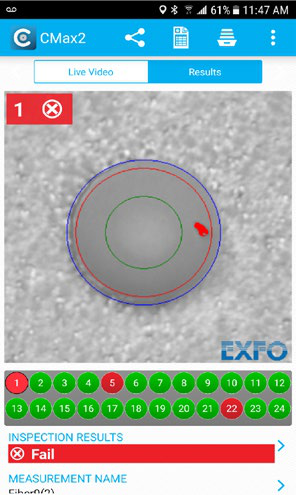

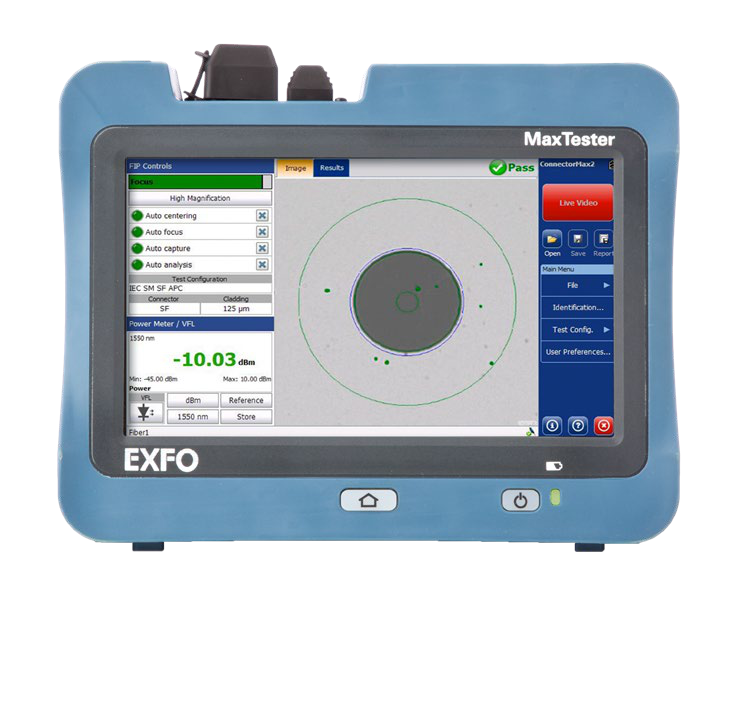

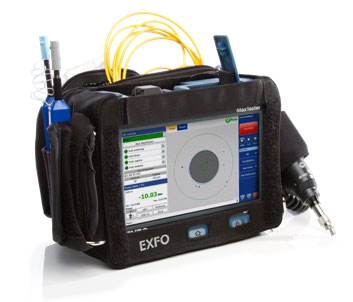

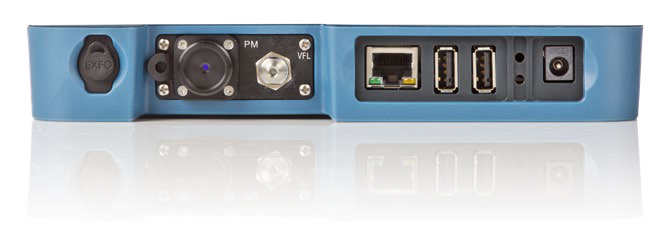

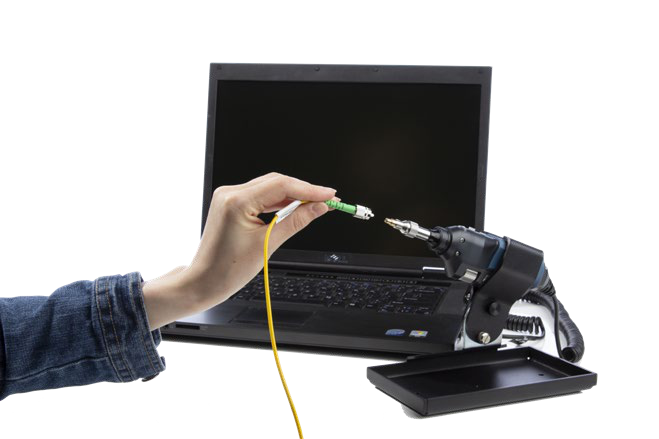

| Parameter | Value |
|---|---|
| Size (H×W×D) FIP-435B | 55mm×39mm×207mm |
| Size (H×W×D) FIP-4X0B | 47mm×42mm×162mm |
| Weight | 0.3kg |
| Resolution | 0.55μm |
| Camera Sensor | Five-megapixel CMOS |
| Visual Detection Capability | <1μm |
| Field of View (High Magnification) | 304μm×304μm |
| Field of View (Mid Magnification) | 608μm×608μm |
| Field of View (Low Magnification) | 912μm×912μm |
| Light Source | Blue LED |
| Lighting Technique | Coaxial |
| Capture Button | Available on all models |
| Magnification Button | Available on all models |
| Digital Magnification | Three levels |
| Connector FIP-435B | Micro USB |
| Connector FIP-4X0B | Minimum USB 2.0 |
| WiFi | 802.11g |
| Frequency Band | 2.4GHz |
| Smart Device OS Compatibility | Android 4.4 and above, iOS 9 and above |
| Power | 1×removable battery |
| Battery Autonomy | ≥8hours |
| Recharge Time | <4hours |
| Distance Range | 2.5m |
| Operating Temperature | -10°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 0% to 95% non-condensing |
| Internal Memory | 2GB |
| Screen Size | 7-inch touchscreen |
| Calibrated Wavelengths | 850, 1300, 1310, 1490, 1550, 1625, 1650 |
| Power Range (dBm) | 27 to -50 |
| Uncertainty | ±5%±10nW |
| Display Resolution (dB) | 0.01±max to -40dBm |
| Automatic Offset Ruling Range | 0.1±-40dBm to -50dBm |
| Tone Detection (Hz) | 270/330/1000/2000 |
| Laser Wavelength | 650nm±10nm |
| Laser Safety Class | Class 2 |
| PC Operating System Compatibility | Windows 7/8/10 (32-bit and 64-bit) |
| Processor | Pentium (1.6GHz or higher recommended) |
| RAM | 512MB (2GB recommended) |
| Disk Space | 40MB |
| Other | Latest version of .NET Framework 3.5, DirectX 9.0, USB2.0, minimum |
