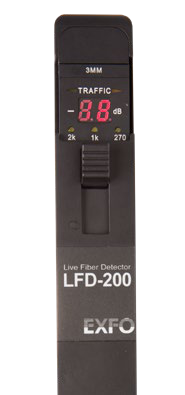

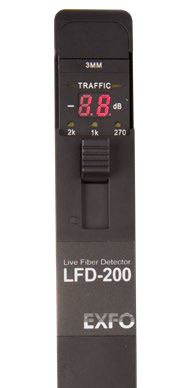

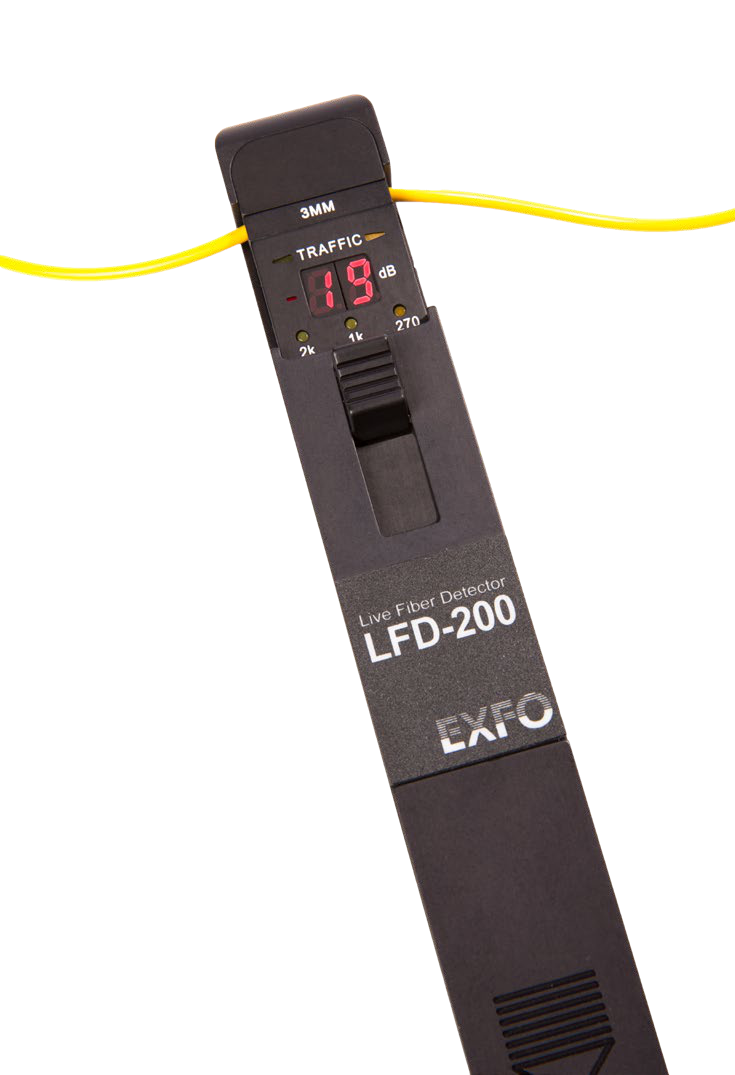

LFD-200 Live Fiber Detector
The LFD-200 Live Fiber Detector allows users to detect traffic and measure signals on singlemode fibers without disconnecting them. It also identifies signal presence for rerouting or maintenance, performs continuity tests, and verifies cable labeling using non-destructive macrobending technology.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Type | Single fiber |

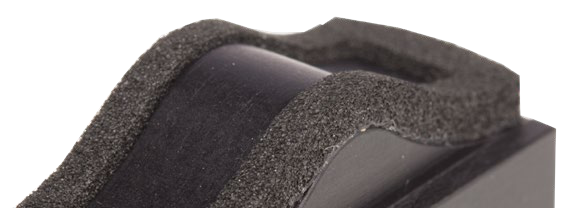

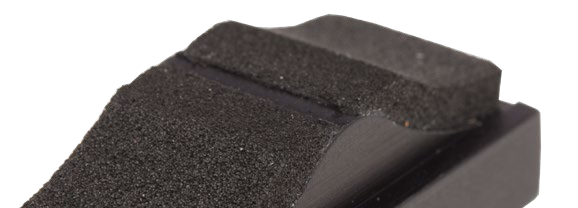

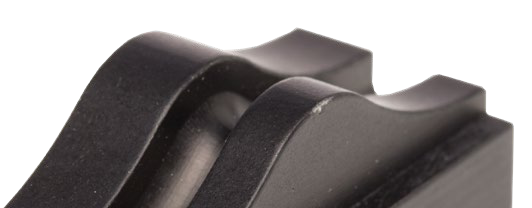

| Fiber Heads | 3mm / 900 / 250/RIB |
| Coating Diameter | 250μm |
| Coating | High refractive index |
| Coating | acrylate |
| Core Power Display | Yes |
| Maximum Power Range | 0 to -40dBm (LFD-202), 23 to -50dBm (LFD-202E) |
| Over-range Indicator | Yes |
| Optical Tone Receiver | 270Hz, 1kHz, 2kHz |
| Detection Technique | Non-destructive macrobending |
| Loss | <0.6dB at 1310nm |
| Spectral Response | 800nm to 1650nm |
| Minimum Fiber Slack | 1.2cm (1/2in) required for detection |
| Size | 236mm x 30mm x 32mm |
| Weight | 0.3kg |
| Battery Type | Standard 9V alkaline battery |
| Battery Life | Approx. 5000 readings |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -40°C to 60°C |
| Humidity | 0% to 90% non-condensing at 35°C |
