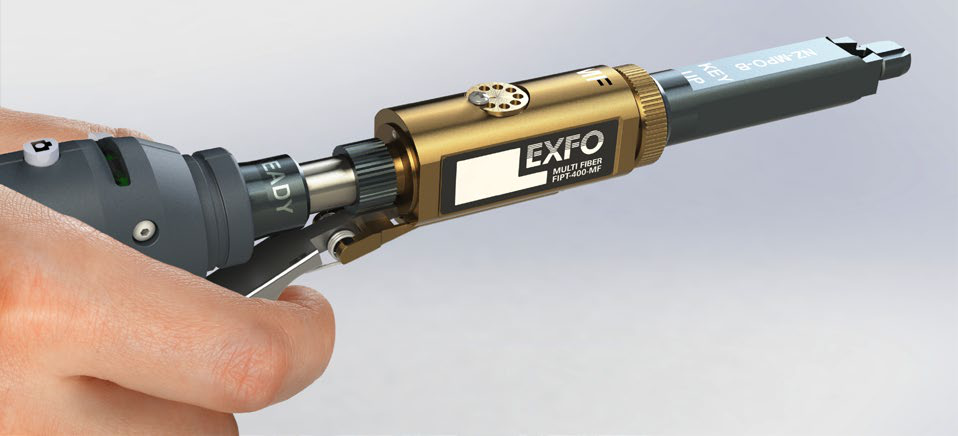

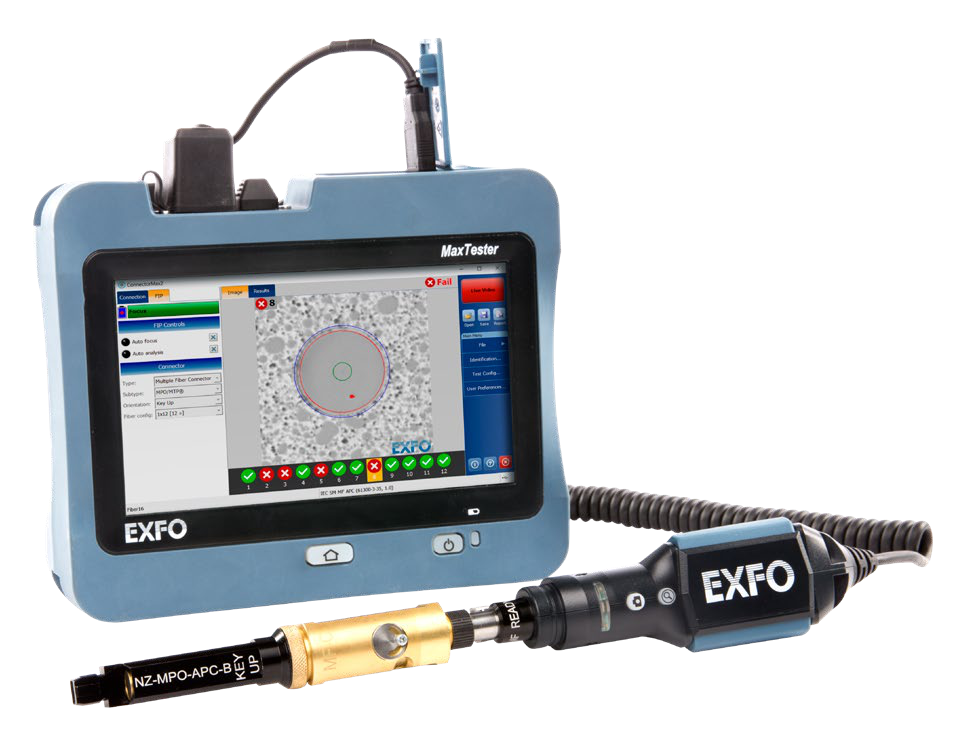

FIPT-400-MF Automated Multifiber Inspection Solution

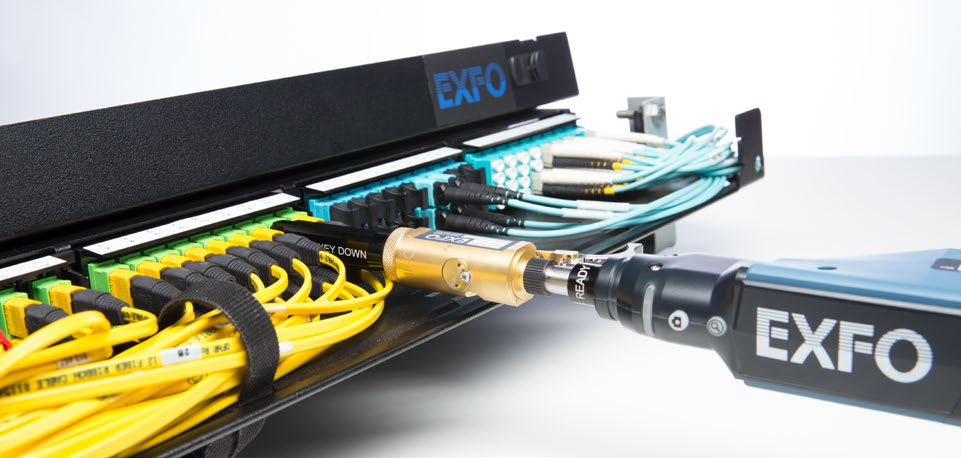

The FIPT-400-MF is a fully automated multifiber inspection solution designed to inspect MPO dense panels, reach recessed connectors, and perform pass/fail assessments quickly and efficiently.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

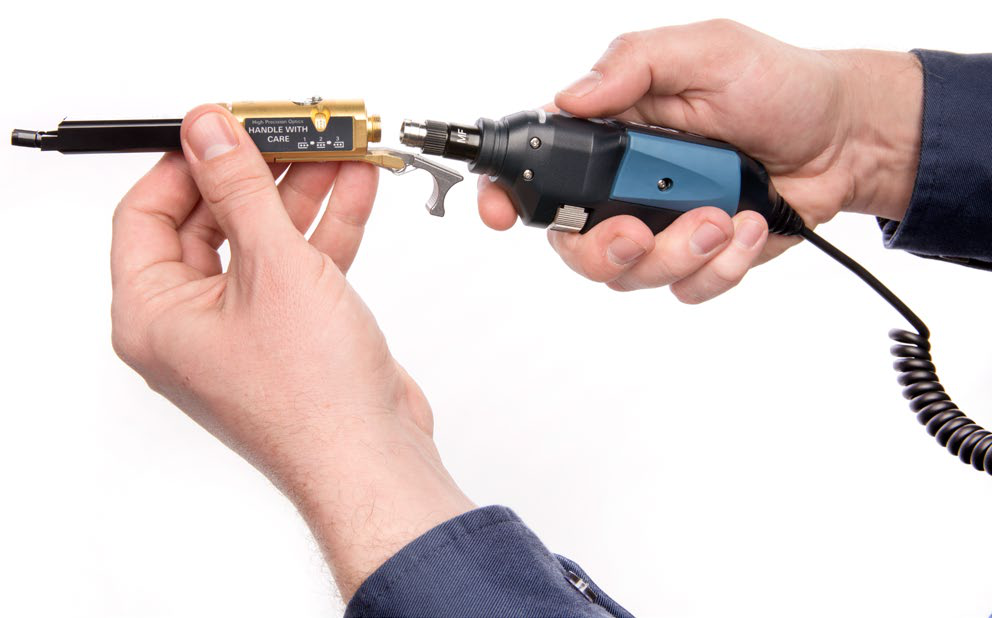

| Probe Model | FIP-410B, FIP-420B, FIP-425B, FIP-435B |
| Compatible Connector Types | MPO, MTP, Q-ODC-12, HFMFOC, OptiTip MT connectors |

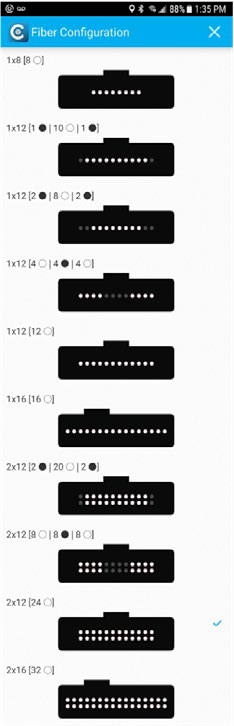

| Single or Dual-row Fiber Connectors | 12/24 or 16/32 |
| Single-fiber Connectors | SC |
| Single-fiber Connectors | LC |
| Single-fiber Connectors | and others |
| Battery Life | All-day battery life |

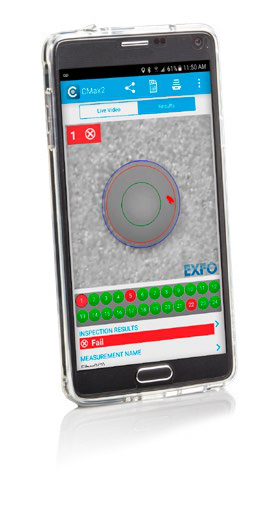

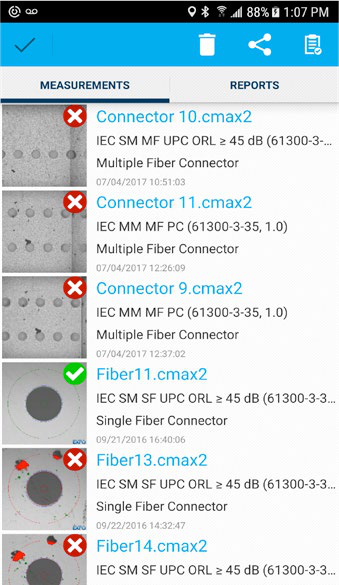

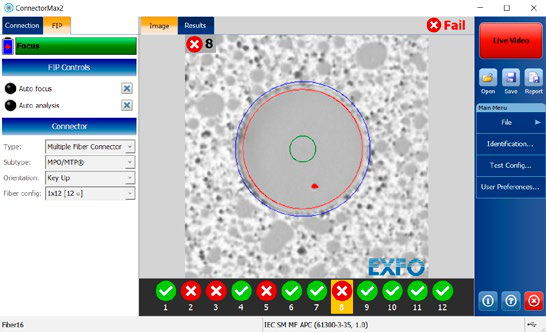

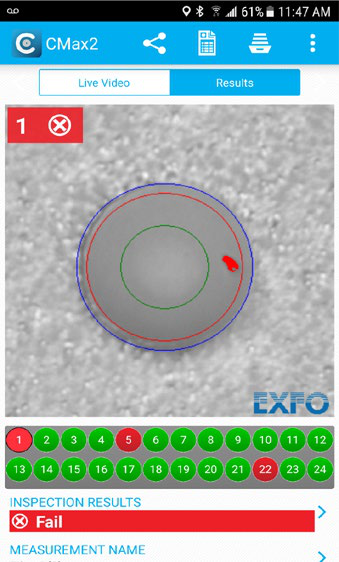

| Software Supported Platforms | MaxTester, FTB-1v2, FTB-2, FTB-4 Pro, iOS, Android |

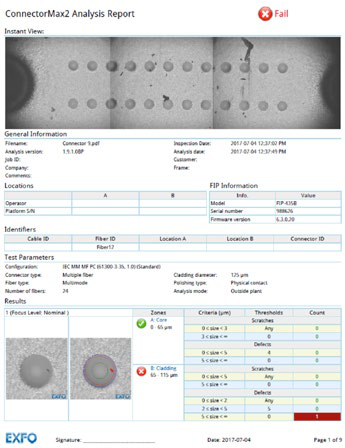

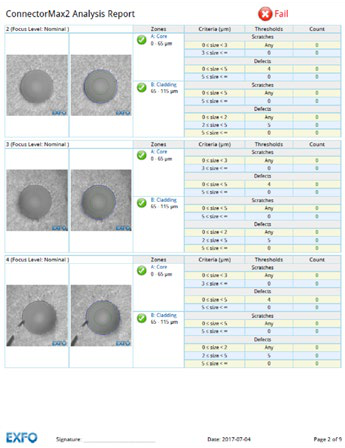

| Fiber Endface Analysis Standards | IEC |
| Fiber Endface Analysis Standards | IPC |
| Fiber Endface Analysis Standards | or custom |
| Probe Field of View | Extra-wide field of view |
| Probe Type | MF-ready |

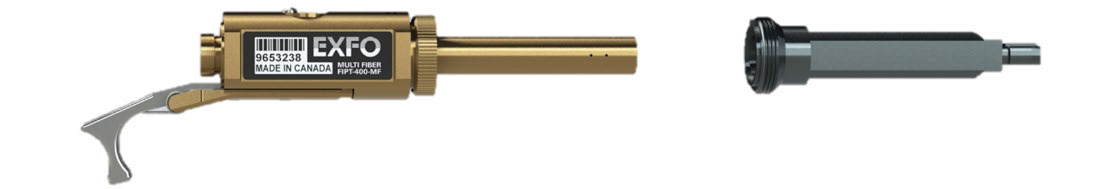

| Removable Nozzle | Yes |
| Supported Fiber Types | APC or UPC polishing type, 12-fiber-row ferrule type, 16-fiber-row ferrule type |
