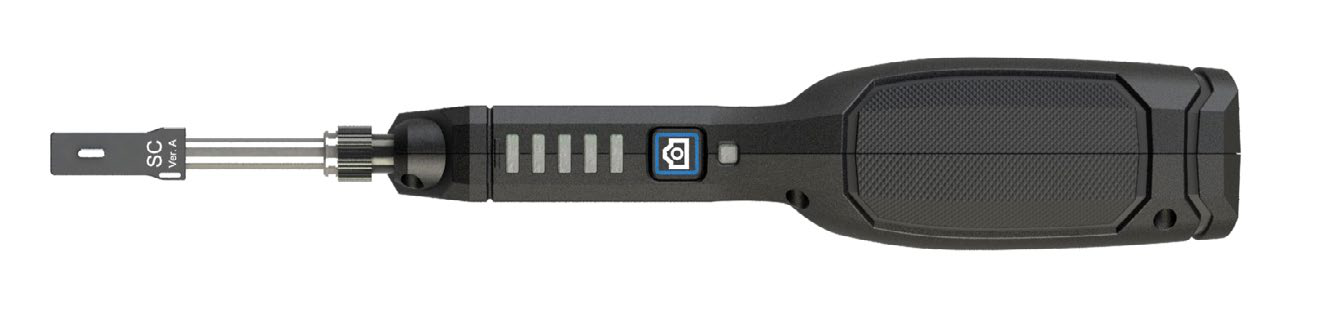

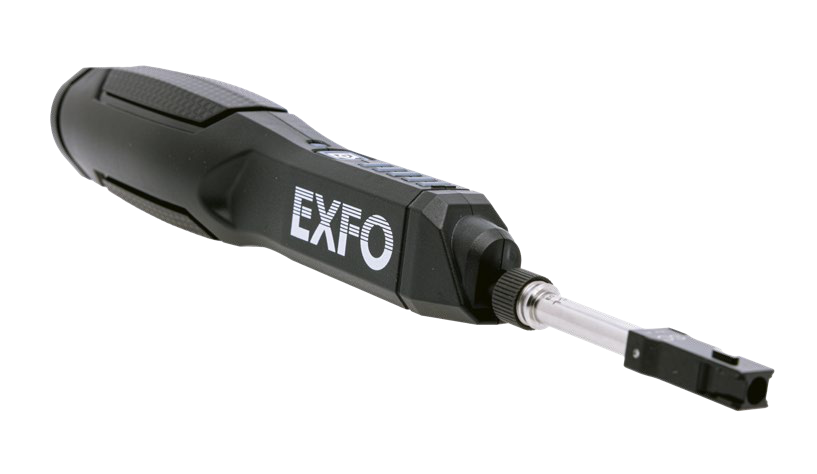

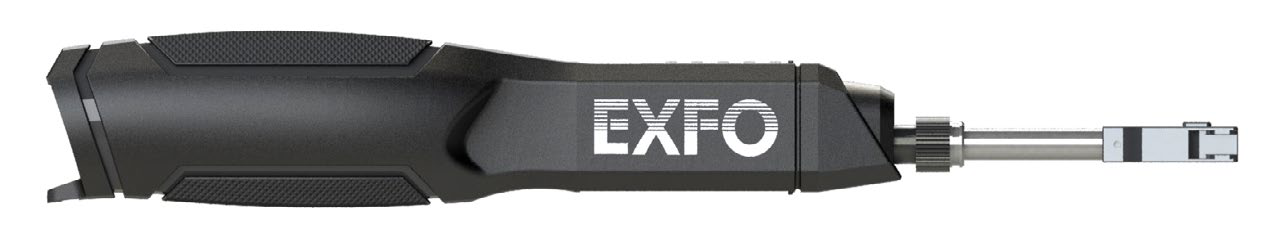

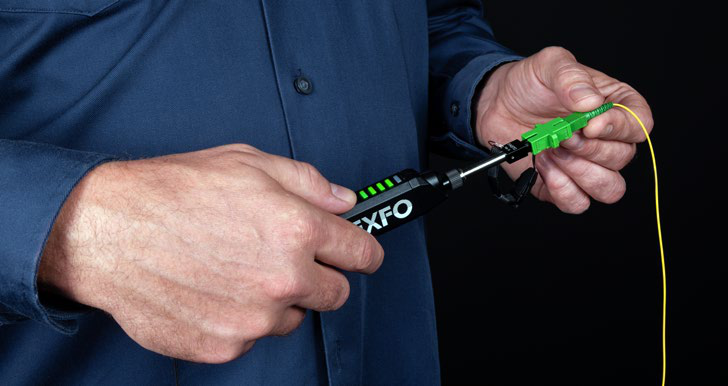

FIP-200 Connector Checker

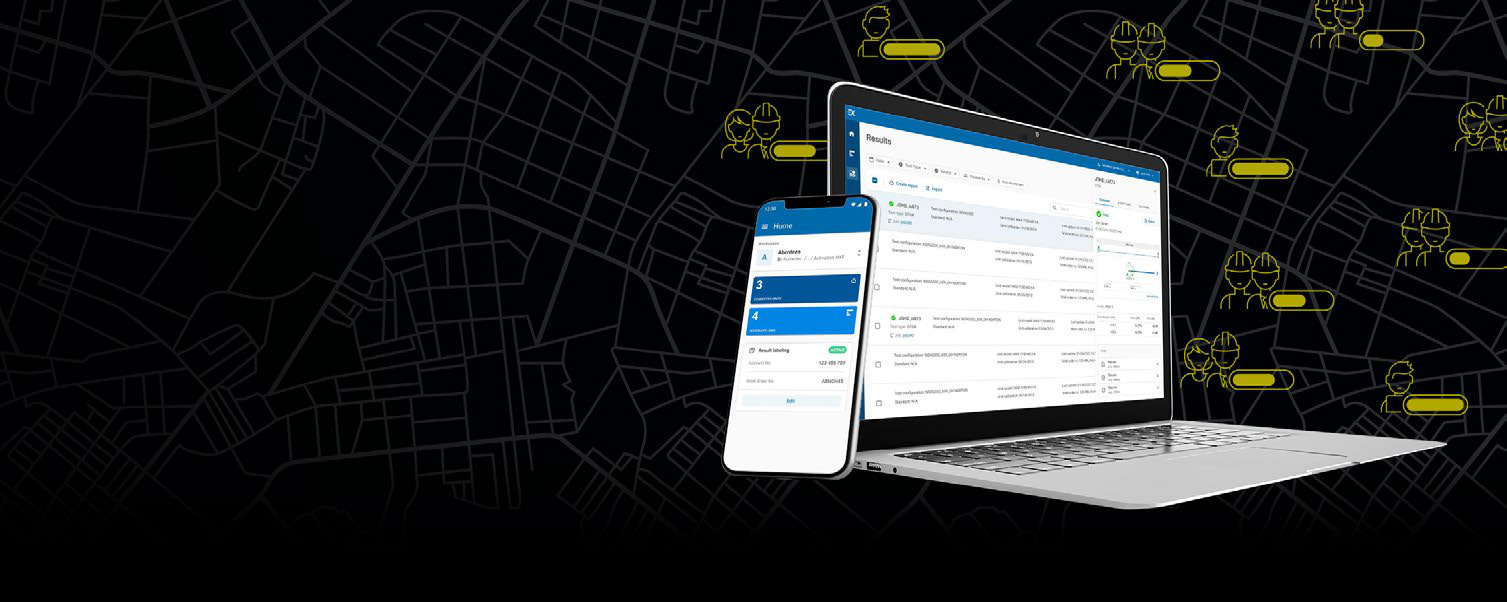

The FIP-200 Connector Checker is a compact and intuitive tool designed for broadband service activation. It ensures compliance and trouble-free activation with one-click pass/fail thresholds and cloud-hosted job management.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| End-to-end inspection and analysis time | 7seconds |
| Field of View | Single-fiber:0.75mm×0.75mm |
| Pass/fail analysis | 5-bar rating for FTTH networks |
| Camera sensor | 5megapixels |
| Light Source | BlueLEDat460±10nm |
| CPU | 1.4GHzdualcore |
| Connectivity | BluetoothandWi-Fi |
| Battery Type | Lithium-ionpolymer(Li-Po)rechargeablebattery |
| Autonomous operation | Yes |
| Battery life | 210captures3h30at1captureperminute |
| Charging time | 46minutesto50%,120minutesto100% |
| Connector | USB-C |
| Localstoragecapability | 100single-fibermeasurements |
| EXFOExchange synchronization | Yes |
| Size(H×W×D) | 247mm×40mm×38mm(9¾in×1⅝in×1½in) |
| Reach(long-head) | 60mm(2⅜in) |
| Weight | 137g(0.3lb) |
| Operatingtemperature | -10°Cto40°C(14°Fto104°F) |
| Storagetemperature | -20°Cto60°C(-4°Fto140°F) |
| Supportedlanguages(usermanual) | English |
| Supportedlanguages(usermanual) | French |
