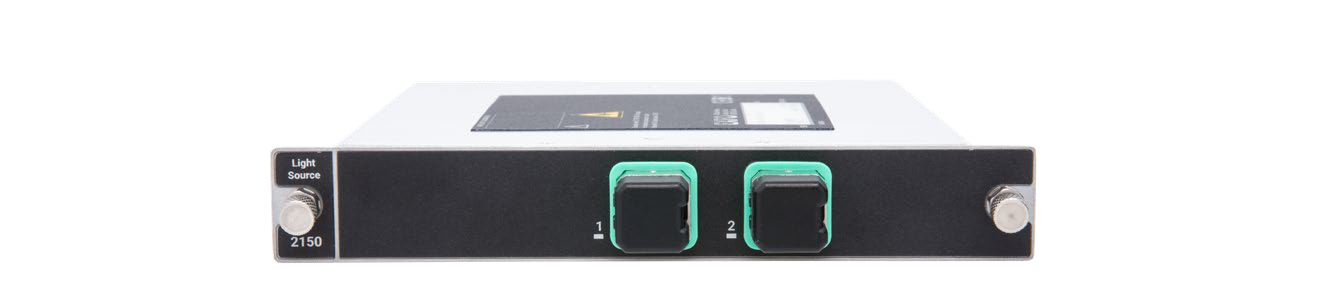

FTBx-2150 Optical Light Source
The FTBx-2150 is a high-performance, stable light source designed for accurate and reliable test results in advanced testing environments. It offers optimal stability, steady drive circuitry, and precision optical components for low-loss, narrow-beam, and efficient output coupling.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength (nm) 00238-2 | 1310±6.5, 1550±6.5 |
| Wavelength (nm) 0234B-3 | 1310±6.5, 1550±6.5, 1625±10 |
| Wavelength (nm) 0236B-3 | 1310±6.5, 1490±6.5, 1550±6.5 |
| Wavelength (nm) 2346B-4 | 1310±6.5, 1490±6.5, 1550±6.5, 1625±10 |
| Spectral Width (nm) IL/ORL optimized DFBs | <1 |
| Spectral Width (nm) LED light sources | 30 to 60, 100 to 140 |
| Output Power (dBm) IL/ORL optimized DFBs | ≥1 |
| Output Power (dBm) LED light sources | ≥-25.0 |
| Stability (dB) IL/ORL optimized DFBs | 15 minutes ±0.07 |
| Stability (dB) LED light sources | 15 minutes ±0.06 |
| Attenuation Range (dB) | ≥9 |
| Modulation | None, 270Hz, 330Hz, 1kHz, 2kHz, ORL optimized |
| Size (HxWxD) | 25mm x 159mm x 175mm |
| Weight | 0.35kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 0% to 80% non-condensing |
| LTB-8 Operation | Windows 10 |
| Remote Control (Automation) | With LTB-8 GPIB (IEEE-488.1, IEEE-488.2), Ethernet and RS-232 |
