Encircled Flux (EF) Test Solutions
Encircled Flux (EF) Test Solutions are designed for controlled multimode loss testing, ensuring maximum accuracy and repeatability for Tier-1/2 multimode fiber testing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

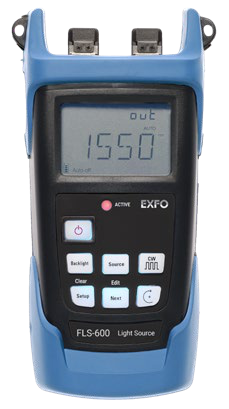

| Central Wavelength (nm) 12C | 850±25, 1300±20 |
| Central Wavelength (nm) 23BL | 1310±20, 1550±20 |
| Spectral Width (nm) 12C | 50/135 |
| Spectral Width (nm) 23BL | ≤5 |
| Launch Conditions | Encircled Flux compliant at 50μm, 850/1300nm (guaranteed) |
| Auto-Switching | Yes |
| Tone Generation | 270Hz, 1kHz, 2kHz |
| Battery Life (hours) | 50 |
| Warranty (year) | 1 |
| Size (H×W×D) | 190mm×100mm×62mm |
| Weight | 0.48kg |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 0% to 95% non-condensing |

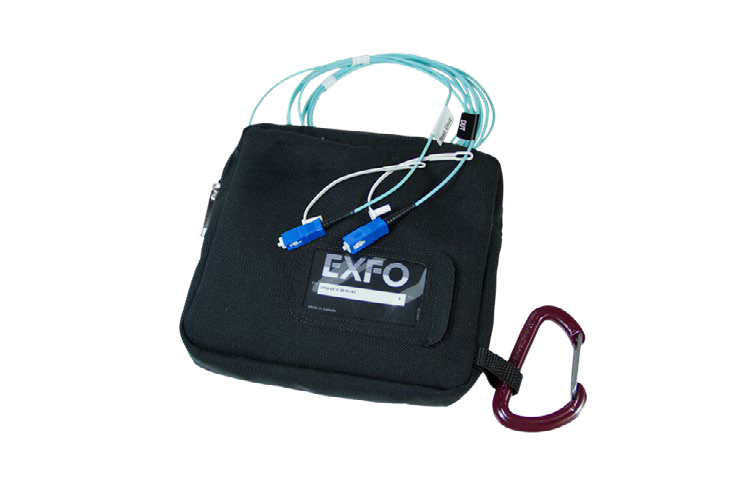

| Total Insertion Loss (dB) SPSB-EF-C30 | <1 |
| Fiber Length | 34m |
| Size (H×W×D) SPSB-EF-C30 | 165mm×165mm×40mm |
| Weight SPSB-EF-C30 | 0.3kg |
| Operating Temperature SPSB-EF-C30 | -10°C to 50°C |
| Storage Temperature SPSB-EF-C30 | -40°C to 70°C |
| Relative Humidity SPSB-EF-C30 | 0% to 95% non-condensing |
