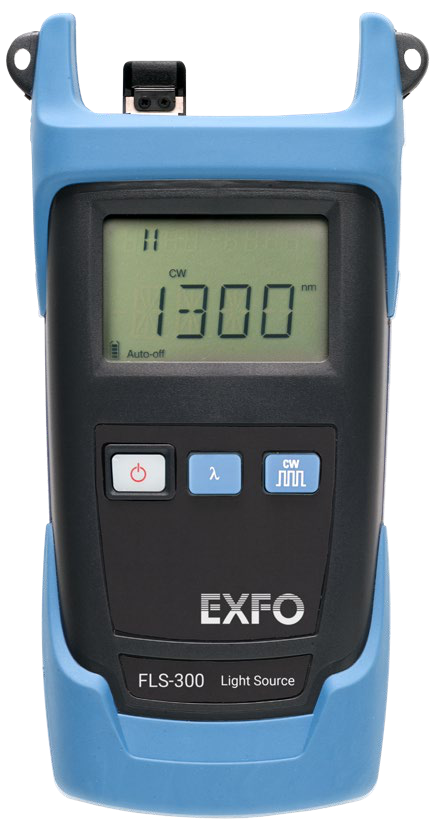

FLS-300 Light Source
The FLS-300 Light Source is a handheld device designed for network optical testing, offering dual-wavelength singlemode and four-wavelength options for multimode and singlemode applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Central Wavelength (nm) 23BL | 1310±20, 1550±20 |
| Central Wavelength (nm) 12D | 850±25, 1300±20 |
| Spectral Width (nm) 23BL | ≤5 |
| Spectral Width (nm) 12D | ≤50/135 |
| Output Power (dBm) 23BL | ≥-1/≥1 |
| Output Power (dBm) 12D | ≥-20/≥-20 (62.5/125μm) |
| Power Stability (dB) 23BL | ±0.10 |
| Power Stability (dB) 12D | ±0.10 |
| Battery Life (hours) | 120 |
| Enables Automatic Wavelength Recognition | Yes |
| Tone Generation | 270Hz, 1kHz, 2kHz |
| Recommended Calibration Interval (years) | 3 |
| Warranty (year) | 1 |
| Size (HxWxD) | 185mmx100mmx55mm (7 1/4inx4inx2 1/8in) |
| Weight | 0.4kg (0.9lb) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 0% to 95% non-condensing |
| Power Supply | 3 AA alkaline batteries |
Applications
Key Features
Datasheet
