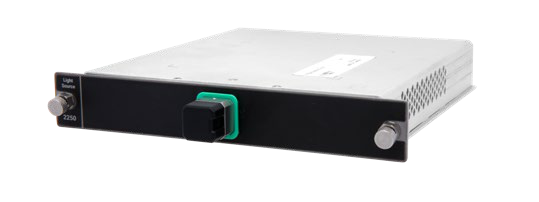

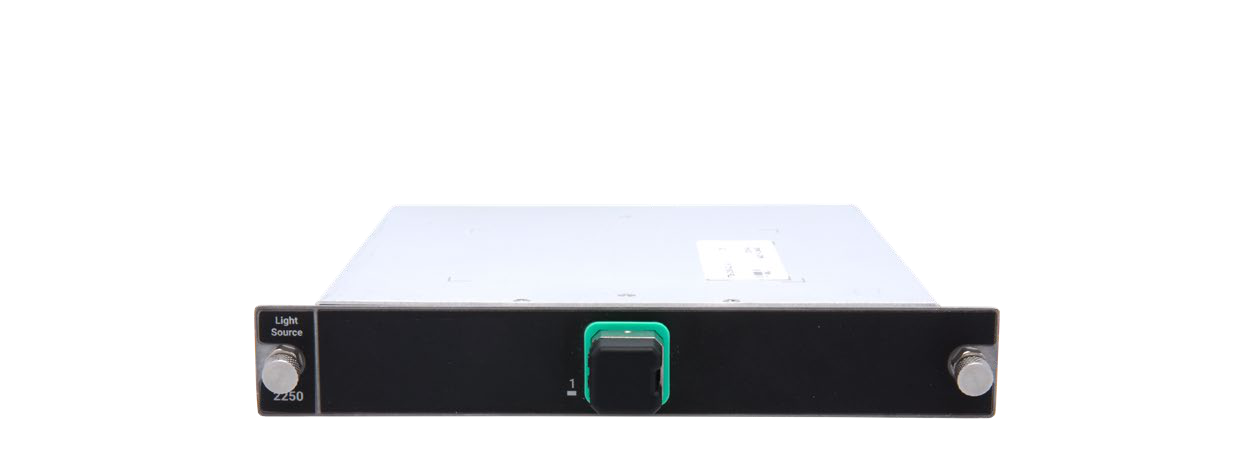

FTBx-2250 Broadband Source
The FTBx-2250 is a compact and rugged broadband source designed for telecommunications applications, including CWDM network testing, passive optical network manufacturing, fiber-optic sensing, and spectroscopy.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Mean Wavelength (nm) | 1550±25 |
| Output Power (dBm) | ≥3 |
| Peak Spectral Density (dBm/nm) | -23 |
| Minimum Spectral Density (dBm/nm) | -27 |
| Total Power Stability (dB) 15 min | ±0.017 |
| Total Power Stability (dB) 8 hours | ±0.02 |
| Spectral Density Stability (dB) ≤15 min | ±0.035 (typical) |
| Spectral Density Stability (dB) ≤8 hours | ±0.046 (typical) |
| Ripple (dB) | 0.35 |
| Fiber Type | 9/125 |
| Size (HxWxD) | 25mmx159mmx175mm |
| Weight | 0.35kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 0% to 80% non-condensing |
| LTB-8 Operation | Windows 10 |
| Instrument Drivers | IVI Drivers, LabVIEW™ drivers and SCPI commands |
| Remote Control (Automation) | With LTB-8: GPIB (IEEE-488.1, IEEE-488.2), Ethernet and RS-232 |
