NS-XY400Z100-01
The NS-XY400Z100-01 is a high-precision motion control platform designed for XYZ axis movement. It features capacitive sensors and is constructed with aluminum alloy for durability and lightweight performance.
Save to Favorites
Overview

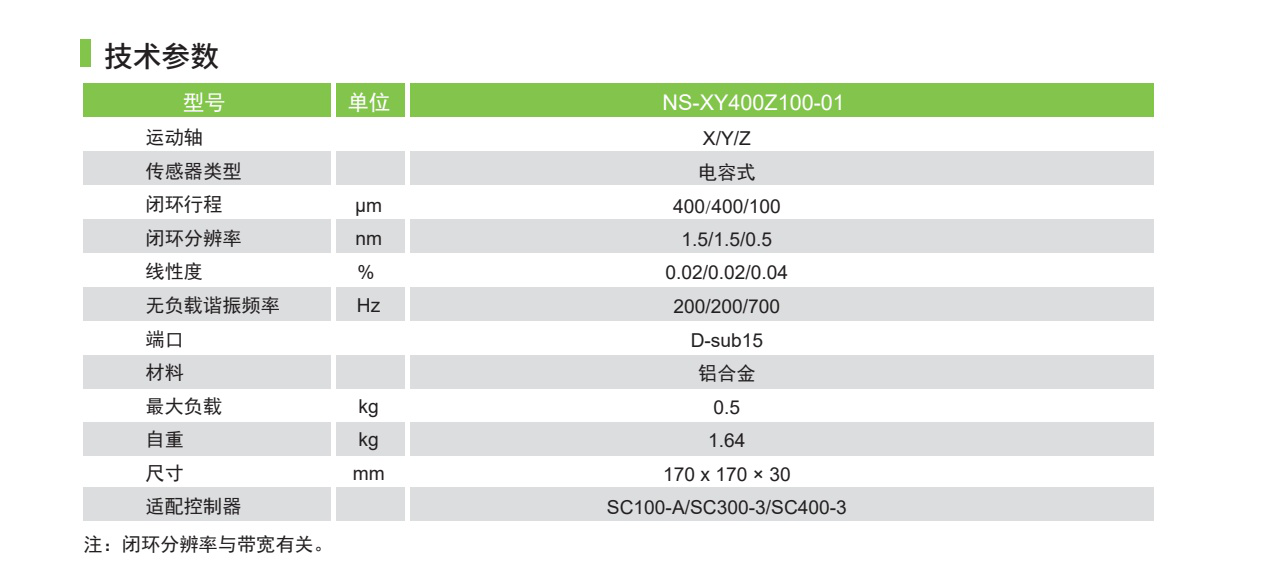

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | X/Y/Z |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 400/400/100 |
| Closed-loop Resolution (nm) | 1.5/1.5/0.5 |
| Linearity (%) | 0.02/0.02/0.04 |
| No-load Resonant Frequency (Hz) | 200/200/700 |
| Port | D-sub15 |
| Material | Aluminum Alloy |
| Maximum Load (kg) | 0.5 |
| Self Weight (kg) | 1.64 |

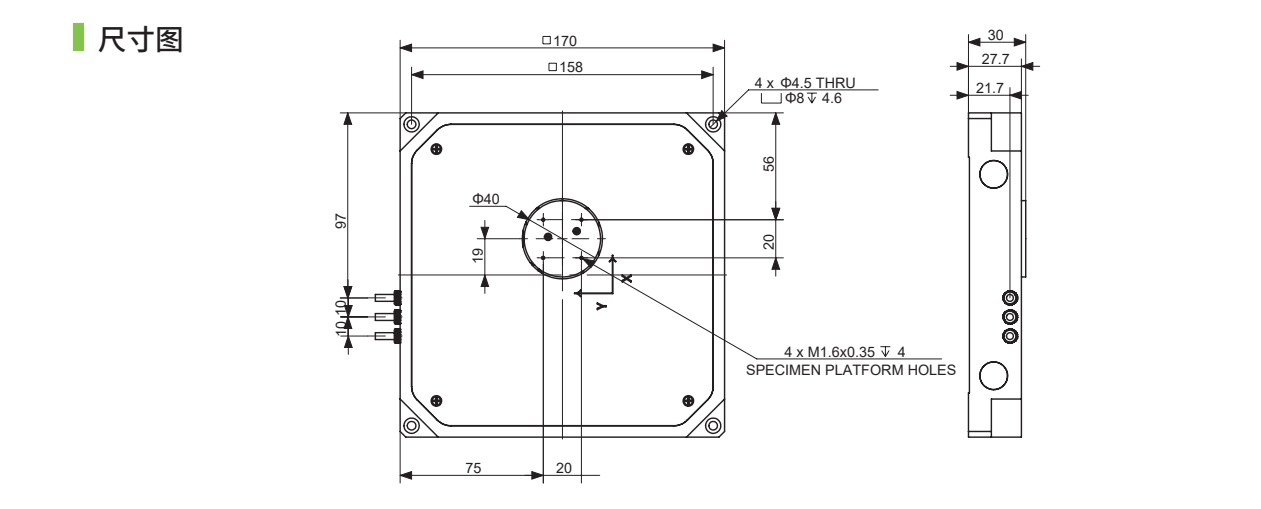

| Dimensions (mm) | 170×170×30 |
| Compatible Controller | SC100-A/SC300-3/SC400-3 |
