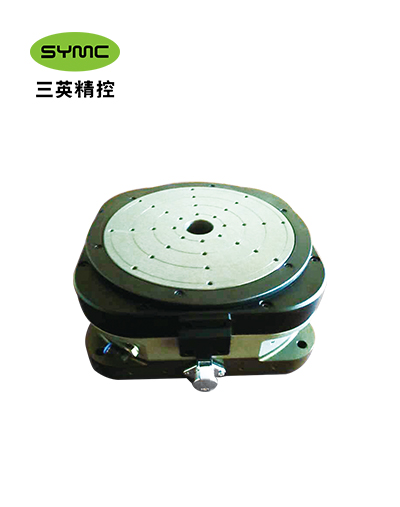

ZT-AB-D Series Precision Rotation Stage
The ZT-AB-D series precision rotary table is designed for high-precision rotational positioning applications. It features excellent load capacity, minimal runout, and high torque, making it suitable for various industrial and scientific uses.
Save to Favorites
Overview
Specifications

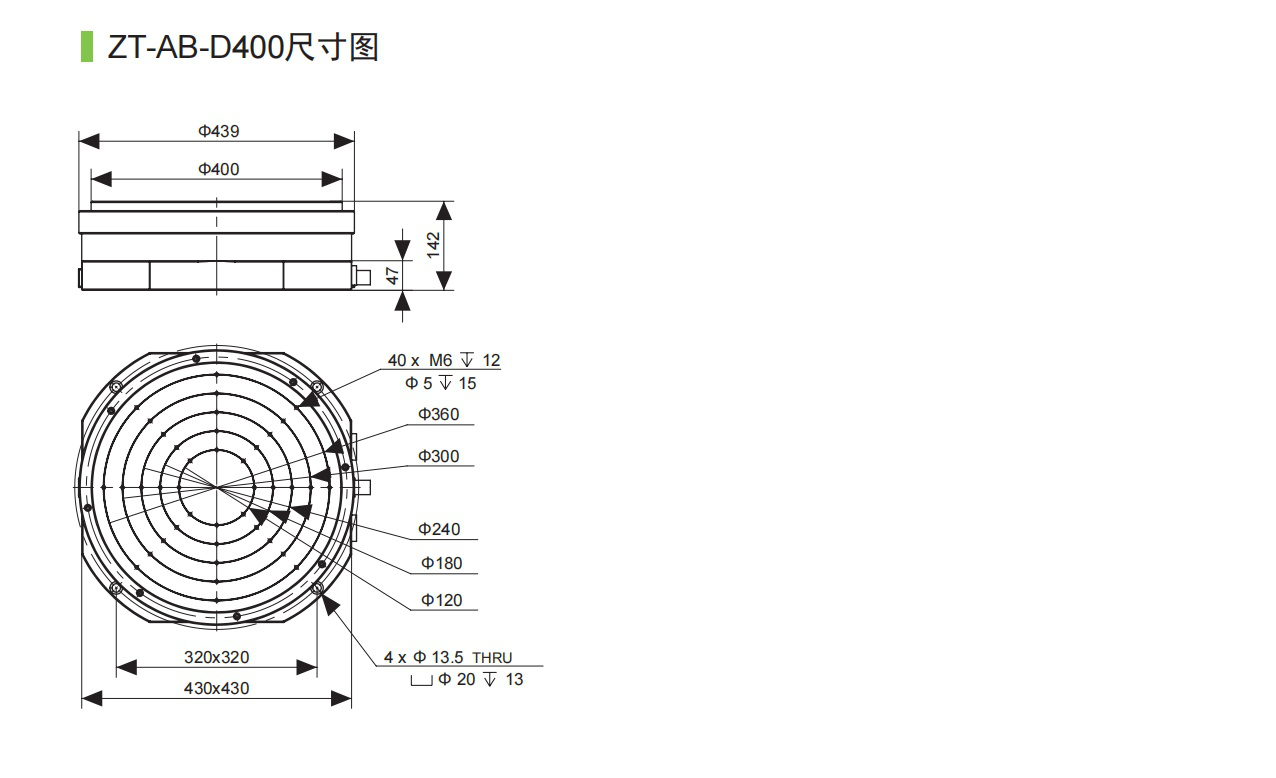

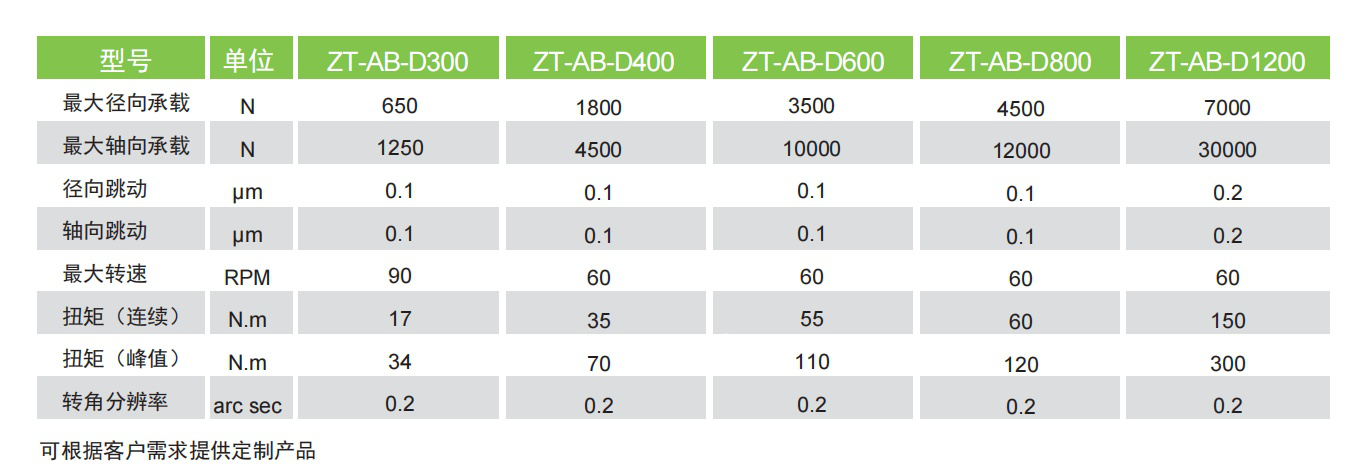

| Parameter | Value |
|---|---|
| Maximum Radial Load (N) ZT-AB-D300 | 650N |
| Maximum Radial Load (N) ZT-AB-D400 | 1800N |
| Maximum Radial Load (N) ZT-AB-D600 | 3500N |
| Maximum Radial Load (N) ZT-AB-D800 | 4500N |
| Maximum Radial Load (N) ZT-AB-D1200 | 7000N |
| Maximum Axial Load (N) ZT-AB-D300 | 1250N |
| Maximum Axial Load (N) ZT-AB-D400 | 4500N |
| Maximum Axial Load (N) ZT-AB-D600 | 10000N |
| Maximum Axial Load (N) ZT-AB-D800 | 12000N |
| Maximum Axial Load (N) ZT-AB-D1200 | 30000N |
| Radial Runout (μm) ZT-AB-D300 | 0.1μm |
| Radial Runout (μm) ZT-AB-D400 | 0.1μm |
| Radial Runout (μm) ZT-AB-D600 | 0.1μm |
| Radial Runout (μm) ZT-AB-D800 | 0.1μm |
| Radial Runout (μm) ZT-AB-D1200 | 0.2μm |
| Axial Runout (μm) ZT-AB-D300 | 0.1μm |
| Axial Runout (μm) ZT-AB-D400 | 0.1μm |
| Axial Runout (μm) ZT-AB-D600 | 0.1μm |
| Axial Runout (μm) ZT-AB-D800 | 0.1μm |
| Axial Runout (μm) ZT-AB-D1200 | 0.2μm |
| Maximum Rotational Speed (RPM) ZT-AB-D300 | 90 |
| Maximum Rotational Speed (RPM) ZT-AB-D400 | 60 |
| Maximum Rotational Speed (RPM) ZT-AB-D600 | 60 |
| Maximum Rotational Speed (RPM) ZT-AB-D800 | 60 |
| Maximum Rotational Speed (RPM) ZT-AB-D1200 | 60 |
| Torque (Continuous) (N·m) ZT-AB-D300 | 17 |
| Torque (Continuous) (N·m) ZT-AB-D400 | 35 |
| Torque (Continuous) (N·m) ZT-AB-D600 | 55 |
| Torque (Continuous) (N·m) ZT-AB-D800 | 60 |
| Torque (Continuous) (N·m) ZT-AB-D1200 | 150 |
| Torque (Peak) (N·m) ZT-AB-D300 | 34 |
| Torque (Peak) (N·m) ZT-AB-D400 | 70 |
| Torque (Peak) (N·m) ZT-AB-D600 | 110 |
| Torque (Peak) (N·m) ZT-AB-D800 | 120 |
| Torque (Peak) (N·m) ZT-AB-D1200 | 300 |
| Angular Resolution (arc sec) ZT-AB-D300 | 0.2arc sec |
| Angular Resolution (arc sec) ZT-AB-D400 | 0.2arc sec |
| Angular Resolution (arc sec) ZT-AB-D600 | 0.2arc sec |
| Angular Resolution (arc sec) ZT-AB-D800 | 0.2arc sec |
| Angular Resolution (arc sec) ZT-AB-D1200 | 0.2arc sec |
