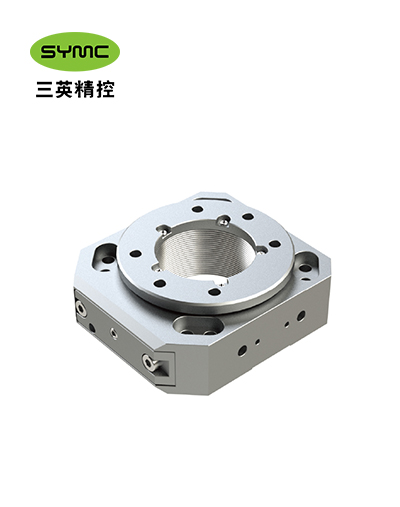

PR-50 Precision Rotary Stage
The PR-50 is a high-precision rotary stage designed for applications requiring unlimited 360° rotation with exceptional accuracy and stability.
Save to Favorites
Overview

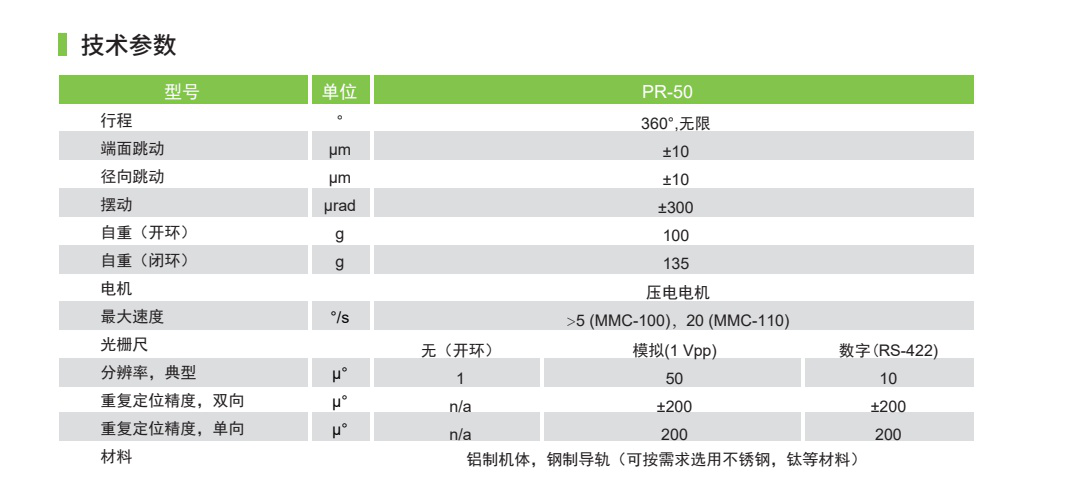

Specifications
| Parameter | Value |
|---|---|
| Travel Range | 360°, Unlimited |
| End Face Runout (μm) | ±10 |
| Radial Runout (μm) | ±10 |
| Swing (μrad) | ±300 |
| Weight (open loop) (g) | 100 |
| Weight (closed loop) (g) | 135 |
| Motor | Piezoelectric Motor |
| Maximum Speed (°/s) | >5 (MMC-100), 20 (MMC-110) |
| Grating Size | None (Open Loop) |
| Resolution, typical (μ°) | 1 |
| Repeatability, bidirectional (μ°) | n/a |
| Repeatability, unidirectional (μ°) | 200 |
| Material | Aluminum body, steel guide rail (optional stainless steel or titanium materials) |
| Maximum Load - Radial Force (Fr) (N) | 20 |
| Maximum Load - Axial Force (Fz) (N) | 30 |
| Maximum Load - Overturning Moment (Mr) (N·m) | 5 |
| Maximum Load - Torque (Mz) (N·m) | 0.05 |
| Maximum Load - Angular Stiffness (kar) (μrad/N·m) | 150 |
