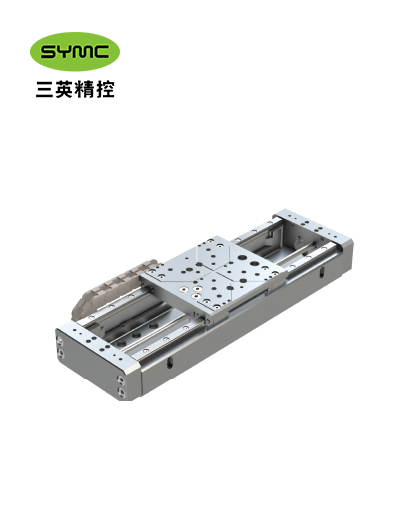

PPS-60LM Linear Motor Stage
The PPS-60LM Linear Motor Stage is a high-precision motion control device designed for applications requiring accurate positioning and smooth linear motion.
Save to Favorites
Overview

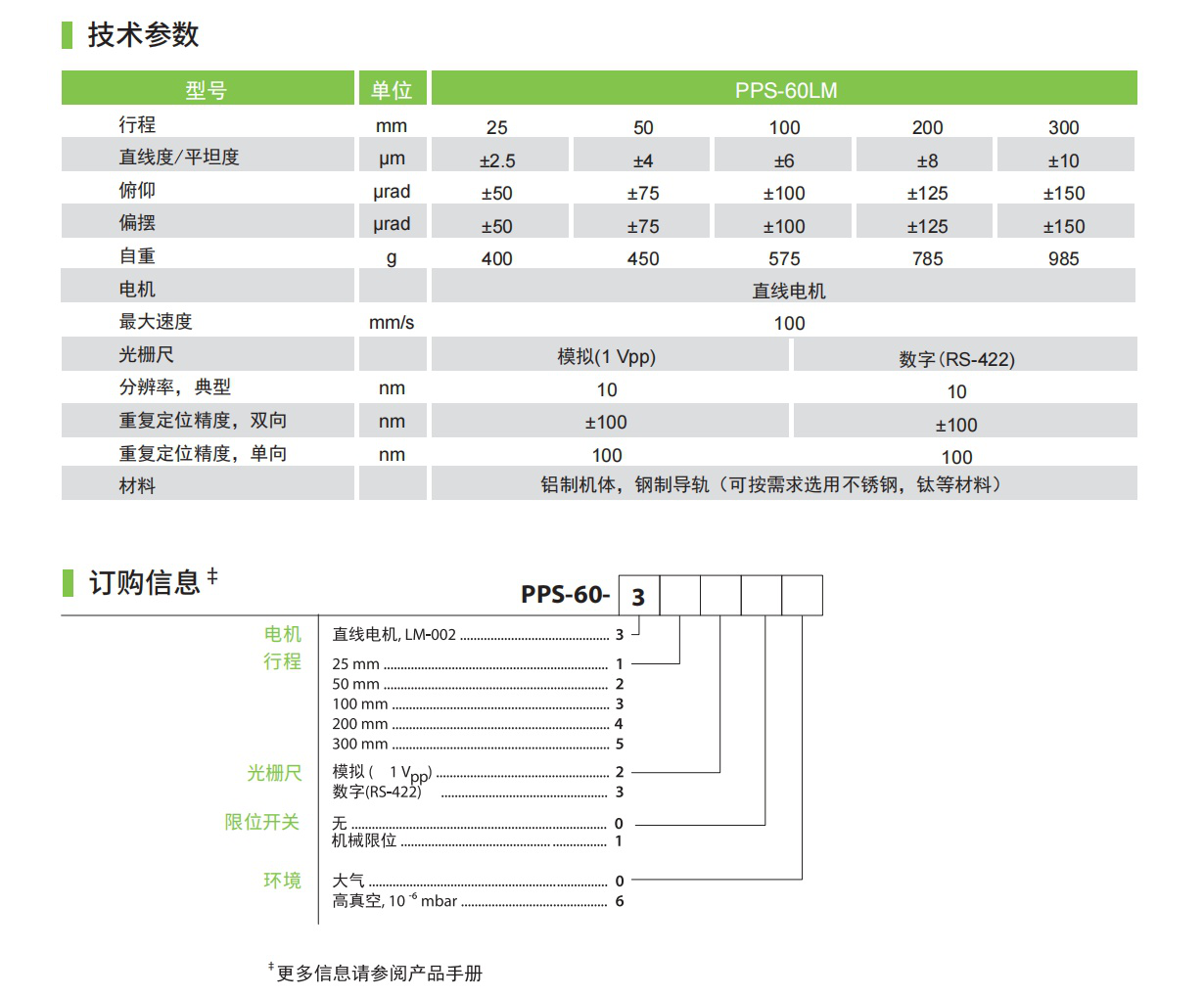

Specifications
| Parameter | Value |
|---|---|
| Travel (mm) 25 | 25mm |
| Travel (mm) 50 | 50mm |
| Straightness/Flatness (μm) 25 | ±2.5μm |
| Straightness/Flatness (μm) 50 | ±4μm |
| Pitch (μrad) 25 | ±50 |
| Pitch (μrad) 50 | ±75 |
| Yaw (μrad) 25 | ±50 |
| Yaw (μrad) 50 | ±75 |
| Weight (g) 25 | 400g |
| Weight (g) 50 | 450g |
| Weight (g) 100 | 575g |
| Encoder | Analog (1Vpp), Digital (RS-422) |
| Repeatability, Bidirectional (nm) | ±100nm |
| Repeatability, Unidirectional (nm) | 100nm |
| Max Load FX (N) | 100N |
| Max Load FY (N) | 50N |
| Max Load FZ (N) | 10N |
| Max Load MX (N·m) | 10 |
| Max Load MY (N·m) | 10 |
| Max Load MZ (N·m) | 10 |
| Max Load kαX (μrad/N·m) | 100 |
| Max Load kαY (μrad/N·m) | 100 |
