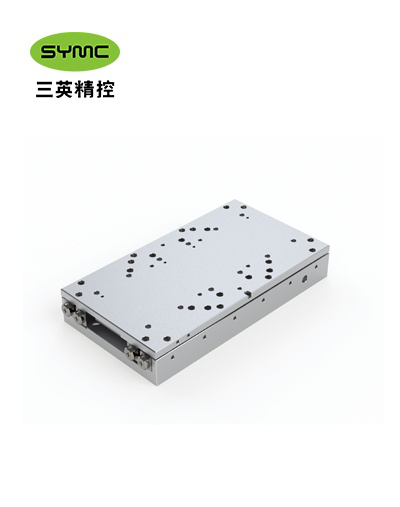

PPS-50
The PPS-50 is a precision linear stage designed for high-accuracy positioning applications. It features piezo motors and offers various travel ranges, resolutions, and environmental compatibility.
Save to Favorites
Overview
Specifications

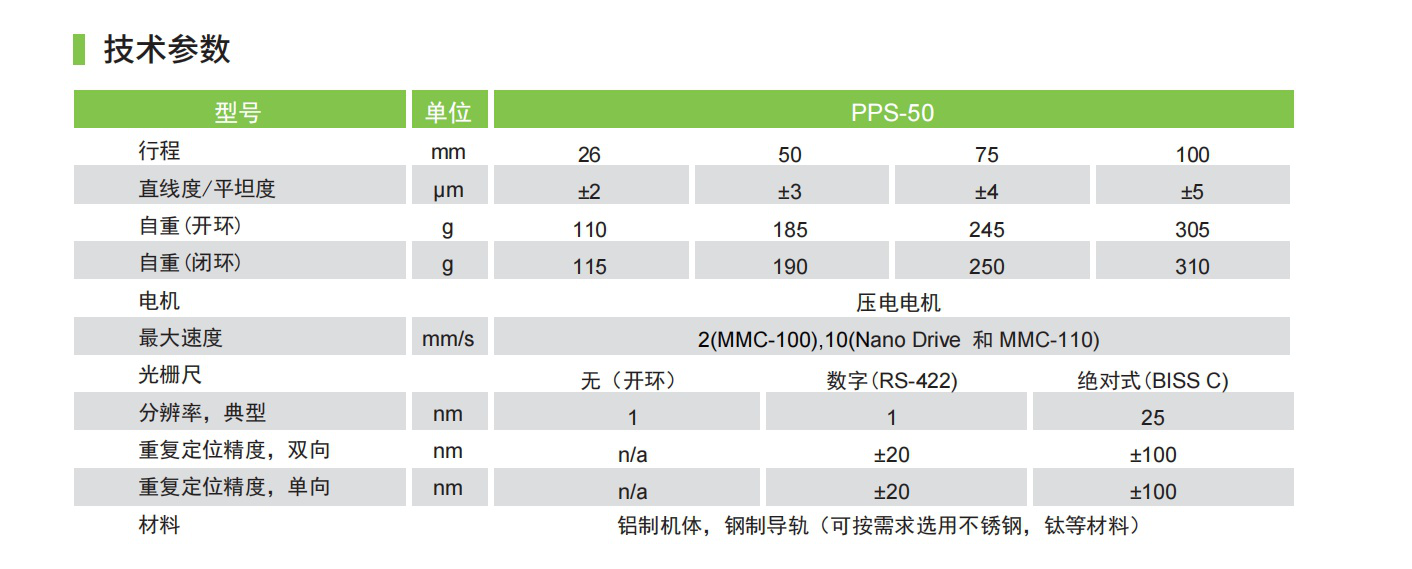

| Parameter | Value |
|---|---|
| Travel Range (mm) | 26, 50, 75, 100 |
| Straightness/Flatness (μm) | ±2, ±3, ±4, ±5 |
| Weight (Open Loop) (g) | 110, 185, 245, 305 |
| Weight (Closed Loop) (g) | 115, 190, 250, 310 |
| Motor | Piezo Motor |
| Max Speed (mm/s) | 2(MMC-100), 10(Nano Drive and MMC-110) |
| Encoder | None (Open Loop), Digital (RS-422), Absolute (BiSS C) |
| Resolution (nm) | 1, 25 |
| Repeatability (Bidirectional) (nm) | n/a, ±20, ±100 |
| Repeatability (Unidirectional) (nm) | n/a, ±20, ±100 |
| Material | Aluminum body |
| Material | steel guide rails |
