PPS-28 Precision Linear Stage

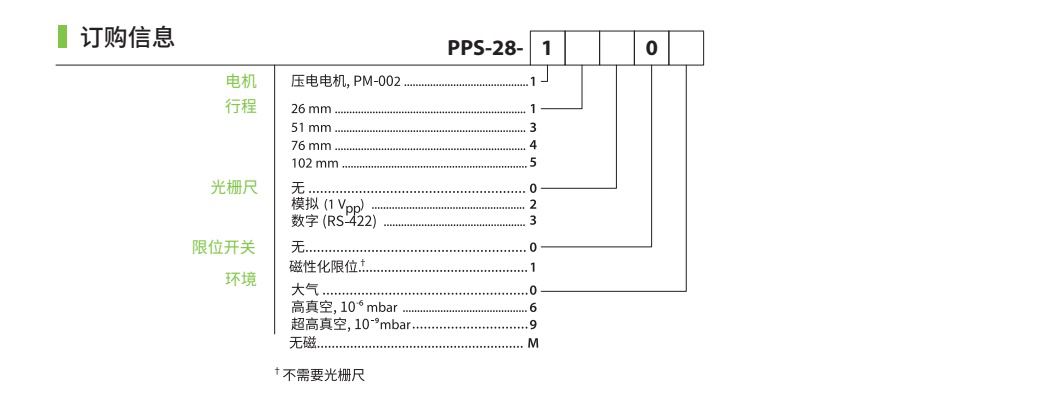

PPS-28 is a high-precision linear stage designed for applications requiring precise positioning and stability. It features a compact design and is suitable for various environments, including atmospheric, high vacuum, and ultra-high vacuum conditions.
Save to Favorites
Overview
Specifications

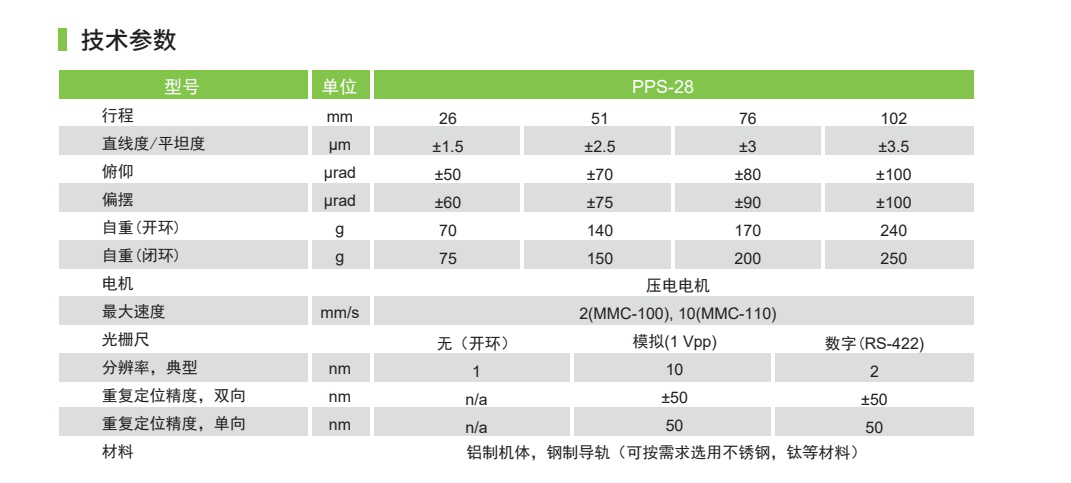

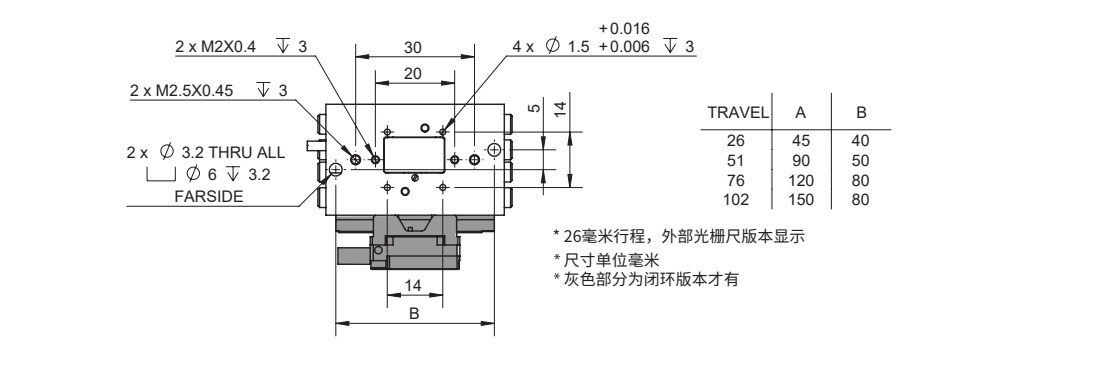

| Parameter | Value |
|---|---|
| Travel (mm) PPS-28-26 | 26 |
| Travel (mm) PPS-28-51 | 51 |
| Travel (mm) PPS-28-76 | 76 |
| Travel (mm) PPS-28-102 | 102 |
| Straightness/Flatness (μm) PPS-28-26 | ±1.5 |
| Straightness/Flatness (μm) PPS-28-51 | ±2.5 |
| Straightness/Flatness (μm) PPS-28-76 | ±3 |
| Straightness/Flatness (μm) PPS-28-102 | ±3.5 |
| Pitch (μrad) PPS-28-26 | ±50 |
| Pitch (μrad) PPS-28-51 | ±70 |
| Pitch (μrad) PPS-28-76 | ±80 |
| Pitch (μrad) PPS-28-102 | ±90 |
| Yaw (μrad) PPS-28-26 | ±60 |
| Yaw (μrad) PPS-28-51 | ±75 |
| Yaw (μrad) PPS-28-76 | ±90 |
| Yaw (μrad) PPS-28-102 | ±100 |
| Weight (Open Loop) (g) PPS-28-26 | 70 |
| Weight (Open Loop) (g) PPS-28-51 | 140 |
| Weight (Open Loop) (g) PPS-28-76 | 170 |
| Weight (Open Loop) (g) PPS-28-102 | 240 |
| Weight (Closed Loop) (g) PPS-28-26 | 75 |
| Weight (Closed Loop) (g) PPS-28-51 | 150 |
| Weight (Closed Loop) (g) PPS-28-76 | 200 |
| Weight (Closed Loop) (g) PPS-28-102 | 250 |
| Motor | 压电电机 |
| Maximum Speed (mm/s) PPS-28-26 | 2(MMC-100), 10(MMC-110) |
| Maximum Speed (mm/s) PPS-28-51 | 2(MMC-100), 10(MMC-110) |
| Maximum Speed (mm/s) PPS-28-76 | 2(MMC-100), 10(MMC-110) |
| Maximum Speed (mm/s) PPS-28-102 | 2(MMC-100), 10(MMC-110) |
| Encoder | None(开环), 模拟(1Vpp), 数字(RS-422) |
| Resolution, Typical (nm) PPS-28-26 | 1 |
| Resolution, Typical (nm) PPS-28-51 | 10 |
| Resolution, Typical (nm) PPS-28-76 | 10 |
| Resolution, Typical (nm) PPS-28-102 | 2 |
| Repeatability, Bidirectional (nm) PPS-28-26 | n/a |
| Repeatability, Bidirectional (nm) PPS-28-51 | ±50 |
| Repeatability, Bidirectional (nm) PPS-28-76 | ±50 |
| Repeatability, Bidirectional (nm) PPS-28-102 | ±50 |
| Repeatability, Unidirectional (nm) PPS-28-26 | n/a |
| Repeatability, Unidirectional (nm) PPS-28-51 | ±50 |
| Repeatability, Unidirectional (nm) PPS-28-76 | ±50 |
| Repeatability, Unidirectional (nm) PPS-28-102 | ±50 |
| Material | 铝制机体, 钢制导轨 (可按需求选用不锈钢, 铍等材料) |

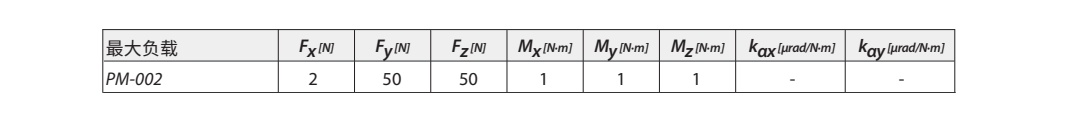

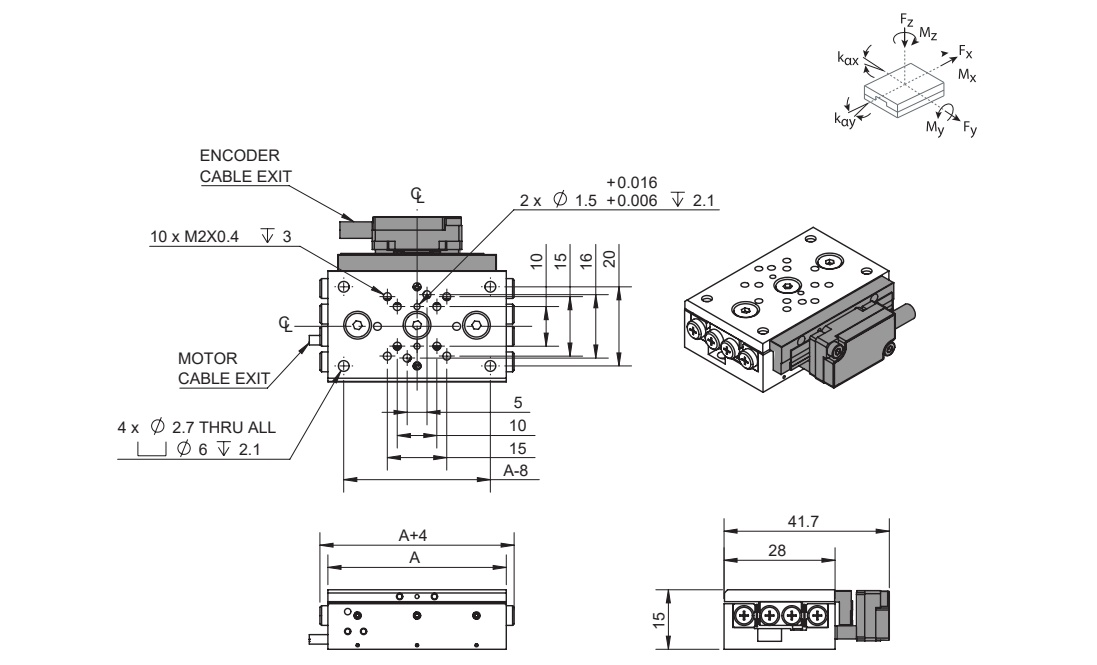

| Maximum load Fx (N) | 2 |
| Maximum load Fy (N) | 50 |
| Maximum load Fz (N) | 50 |
| Maximum Load Mx (N·m) | 1 |
| Maximum Load My (N·m) | 1 |
| Maximum Load Mz (N·m) | 1 |
| Maximum Load kax (μrad/N·m) | - |
| Maximum Load kay (μrad/N·m) | - |
