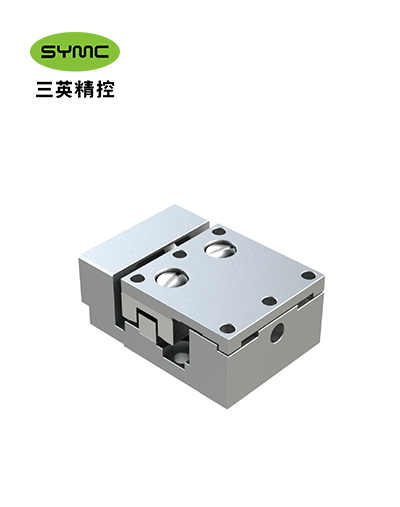

PP-12 Precision Positioning Stage
The PP-12 is a compact precision positioning stage designed for high-accuracy applications in optical systems, scientific research, and industrial automation.
Save to Favorites
Overview

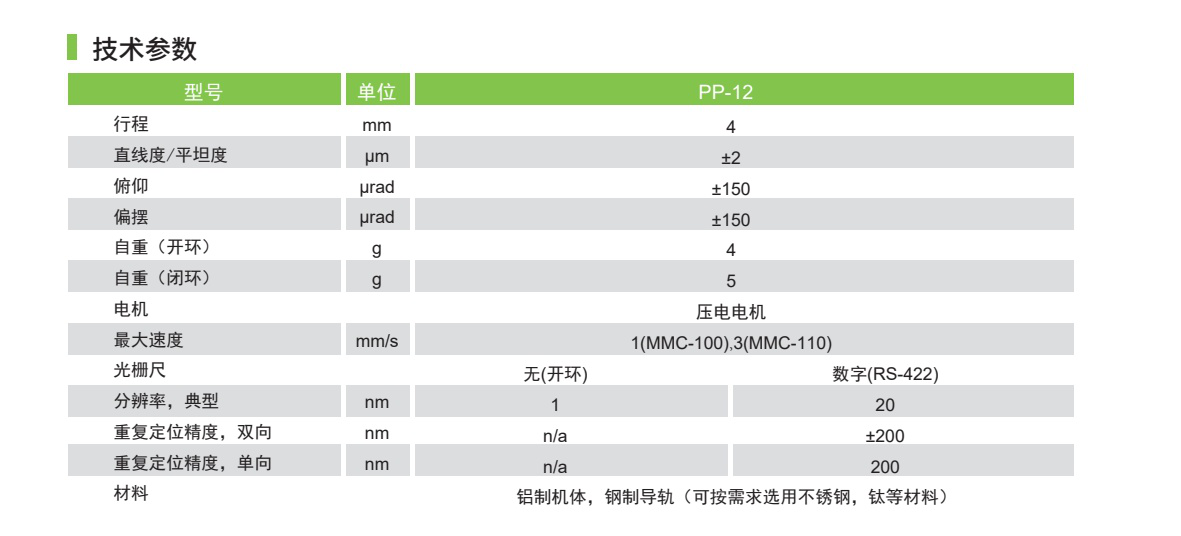

Specifications
| Parameter | Value |
|---|---|
| Travel Range(mm) | 4 |
| Straightness/Flatness(μm) | ±2 |
| Pitch(μrad) | ±150 |
| Yaw(μrad) | ±150 |
| Weight(Open Loop)(g) | 4 |
| Weight(Closed Loop)(g) | 5 |
| Motor | 压电电机 |
| Max Speed(mm/s) | 1(MMC-100),3(MMC-110) |
| Grating Scale(Open Loop) | None |
| Grating Scale(Closed Loop) | 数字(RS-422) |
| Resolution, Typical(nm) | 20 |
| Repeatability, Bidirectional(nm) | ±200 |
| Repeatability, Unidirectional(nm) | 200 |
| Material | 铝制机体，钢制导轨（可按需求选用不锈钢、钛等材料） |
| Max Load Fx(N) | 1 |
| Max Load Fy(N) | 1 |
| Max Load Fz(N) | 1 |
| Max Load Mx(N·m) | 0.1 |
| Max Load My(N·m) | 0.1 |
| Max Load Mz(N·m) | 0.1 |
| Stiffness kαx(μrad/N·m) | - |
| Stiffness kαy(μrad/N·m) | - |
