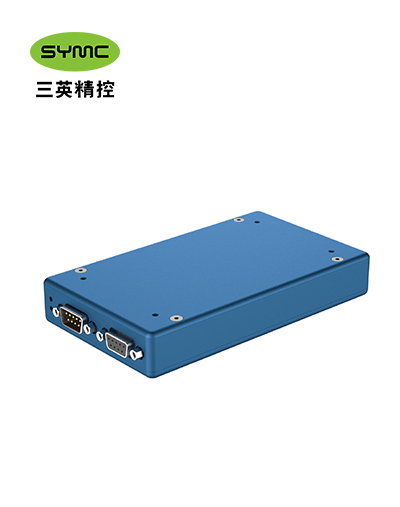

MMC-100
MMC-100 is a compact and versatile motion controller designed for precise control of piezoelectric motors. It supports up to 16 axes and offers high resolution and speed for demanding applications.
Save to Favorites
Overview

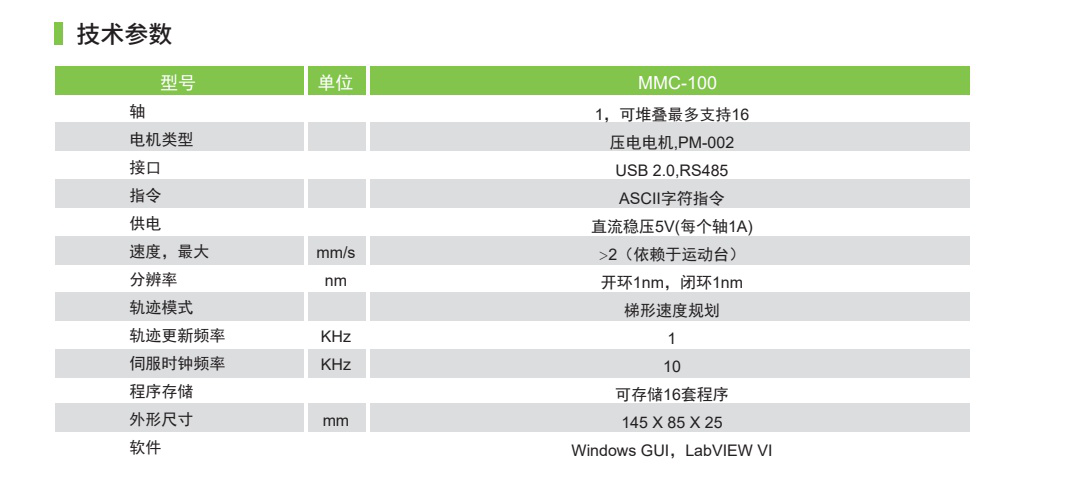

Specifications
| Parameter | Value |
|---|---|
| Axes | 1, up to 16 |
| Motor Type | Piezoelectric motor, PM-002 |
| Command | ASCII character command |
| Power Supply | DC stable voltage 5V (1A per axis) |
| Maximum Speed (mm/s) | >2 (depending on the stage) |
| Trajectory Mode | Step speed planning |
| Trajectory Update Frequency (KHz) | 1 |
| Servo Clock Frequency (KHz) | 10 |

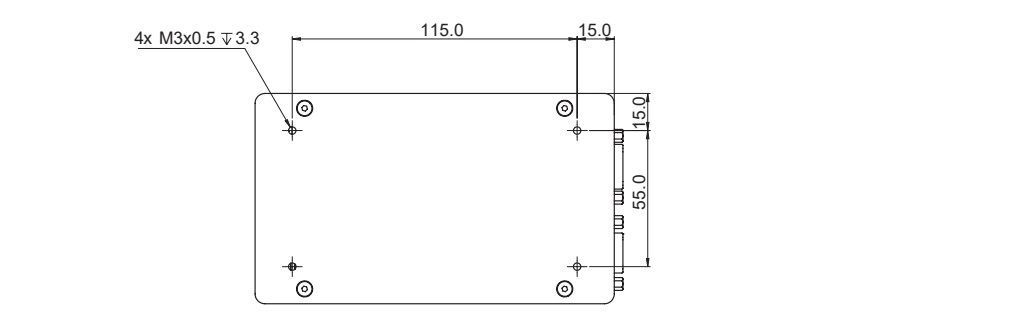

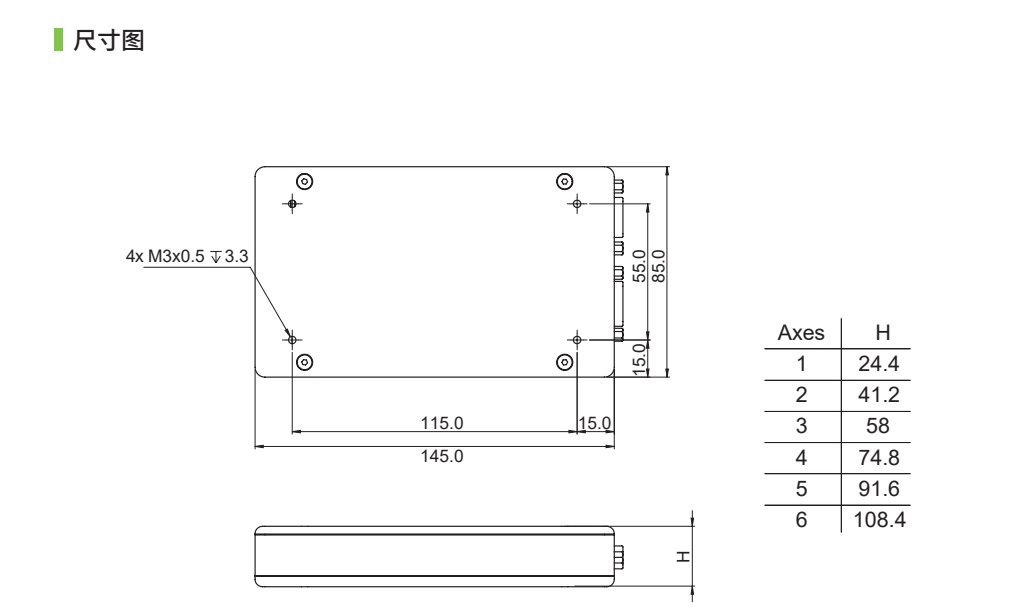

| Dimensions (mm) | 145x85x25 |
| Software | Windows GUI |
| Software | LabVIEW VI |
Applications
Key Features
Datasheet
