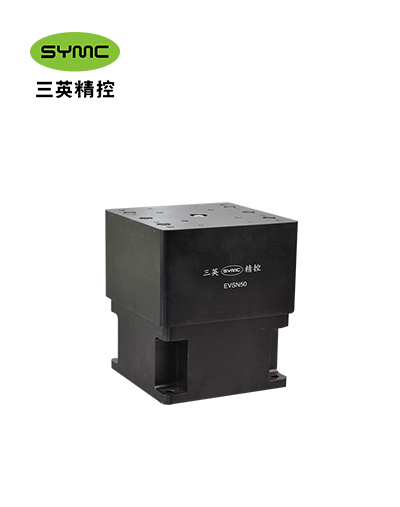

EVSN50 Series
The EVSN50 series is a high-precision linear stage designed for applications requiring precise positioning and stability. It features advanced control methods and high load capacity, making it suitable for various industrial and scientific applications.
Save to Favorites
Overview

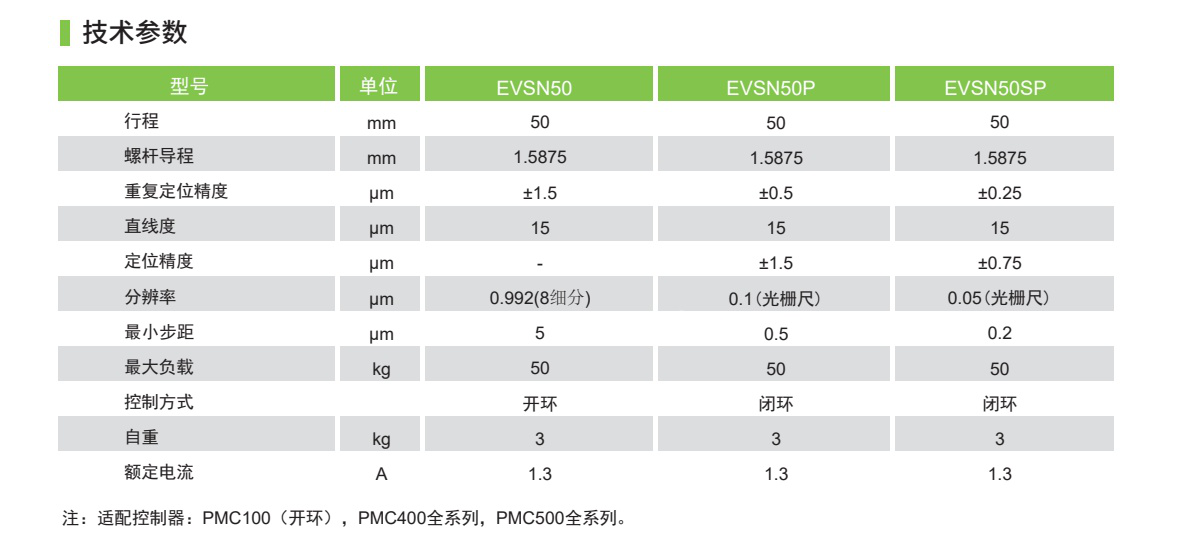

Specifications
| Parameter | Value |
|---|---|
| Screw Lead | 1.5875mm |
| Repeat Positioning Accuracy EVSN50 | ±1.5μm |
| Repeat Positioning Accuracy EVSN50P | ±0.5μm |
| Repeat Positioning Accuracy EVSN50SP | ±0.25μm |
| Linearity | 15μm |
| Positioning Accuracy EVSN50 | ±1.5μm |
| Positioning Accuracy EVSN50SP | ±0.75μm |
| Resolution EVSN50 | 0.992μm (8 subdivisions) |
| Resolution EVSN50P | 0.1μm (optical scale) |
| Resolution EVSN50SP | 0.05μm (optical scale) |
| Minimum Step Distance EVSN50 | 5μm |
| Minimum Step Distance EVSN50P | 0.5μm |
| Minimum Step Distance EVSN50SP | 0.2μm |
| Control Method EVSN50 | Open-loop |
| Control Method EVSN50P | Closed-loop |
| Control Method EVSN50SP | Closed-loop |
| Self Weight | 3kg |
| Rated current | 1.3A |
