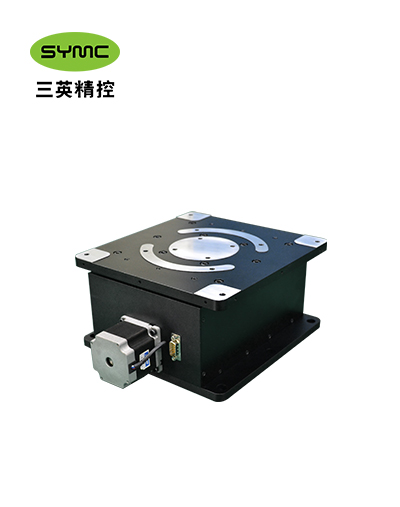

EVSN30 Series Motorized Rotation Stage
The EVSN30 series electric rotary stage is a high-precision positioning device designed for applications requiring precise rotational movement. It features a compact design, high load capacity, and excellent repeatability, making it suitable for various industrial and scientific applications.
Save to Favorites
Overview

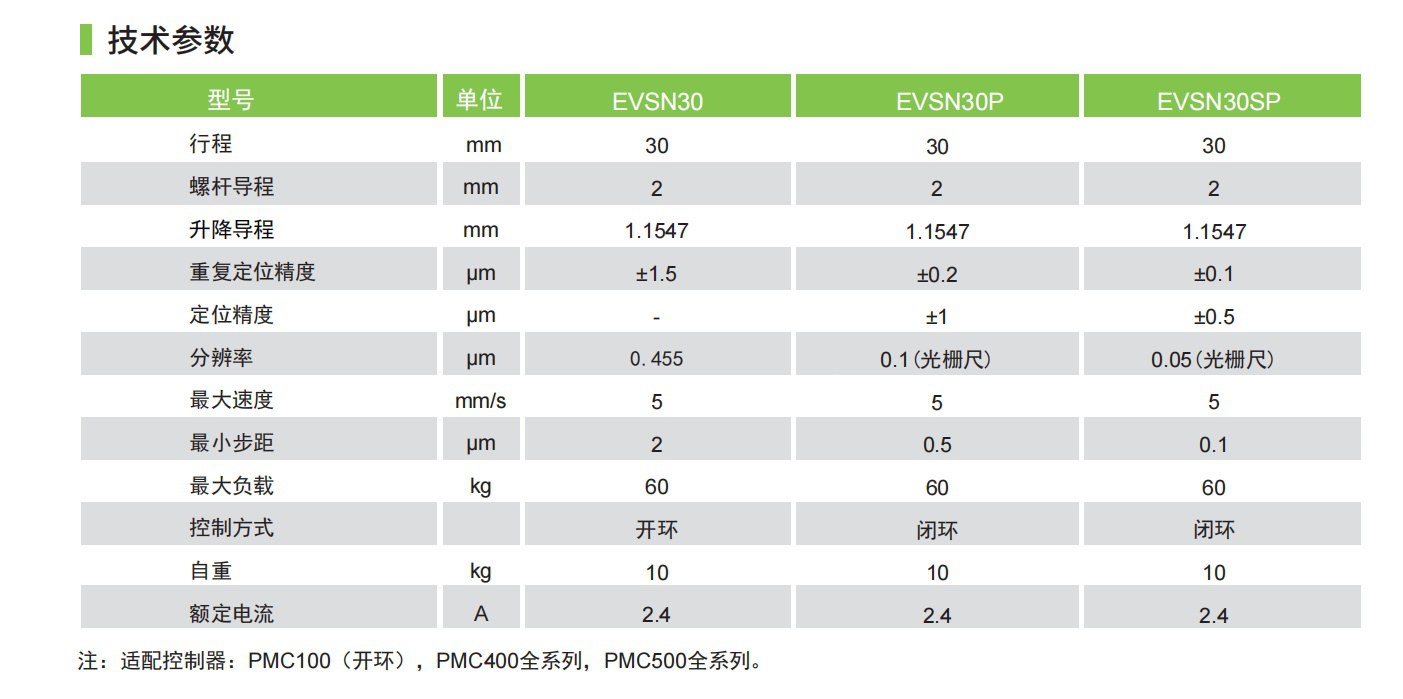

Specifications
| Parameter | Value |
|---|---|
| Travel Range EVSN30 | 30mm |
| Travel Range EVSN30P | 30mm |
| Travel Range EVSN30SP | 30mm |
| Lead Screw Pitch EVSN30 | 2mm |
| Lead Screw Pitch EVSN30P | 2mm |
| Lead Screw Pitch EVSN30SP | 2mm |
| Lifting Lead EVSN30 | 1.1547mm |
| Lifting Lead EVSN30P | 1.1547mm |
| Lifting Lead EVSN30SP | 1.1547mm |
| Repeatability EVSN30 | ±1.5μm |
| Repeatability EVSN30P | ±0.2μm |
| Repeatability EVSN30SP | ±0.1μm |
| Positioning Accuracy EVSN30 | - |
| Positioning Accuracy EVSN30P | ±1μm |
| Positioning Accuracy EVSN30SP | ±0.5μm |
| Resolution EVSN30 | 0.455μm |
| Resolution EVSN30P | 0.1μm (optical encoder) |
| Resolution EVSN30SP | 0.05μm (optical encoder) |
| Max Speed EVSN30 | 5mm/s |
| Max Speed EVSN30P | 5mm/s |
| Max Speed EVSN30SP | 5mm/s |
| Minimum Step EVSN30 | 2μm |
| Minimum Step EVSN30P | 0.5μm |
| Minimum Step EVSN30SP | 0.1μm |
| Max Load EVSN30 | 60kg |
| Max Load EVSN30P | 60kg |
| Max Load EVSN30SP | 60kg |
| Control Method EVSN30 | Open-loop |
| Control Method EVSN30P | Closed-loop |
| Control Method EVSN30SP | Closed-loop |
| Weight EVSN30 | 10kg |
| Weight EVSN30P | 10kg |
| Weight EVSN30SP | 10kg |
| Rated Current EVSN30 | 2.4A |
| Rated Current EVSN30P | 2.4A |
| Rated Current EVSN30SP | 2.4A |
Applications
Key Features
Datasheet
