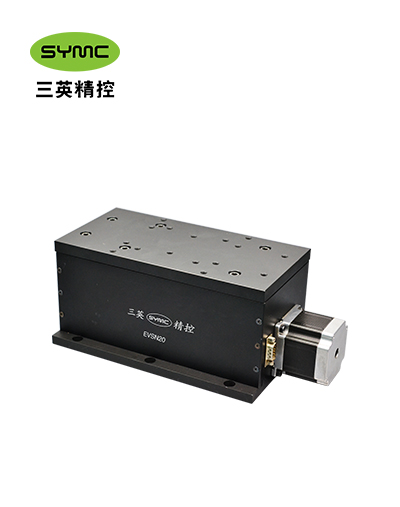

EVSN20系列电动滑台
EVSN20系列电动滑台是一款高精度线性运动Platform，适用于精密定位 and 自动化Application。
Save to Favorites
Overview

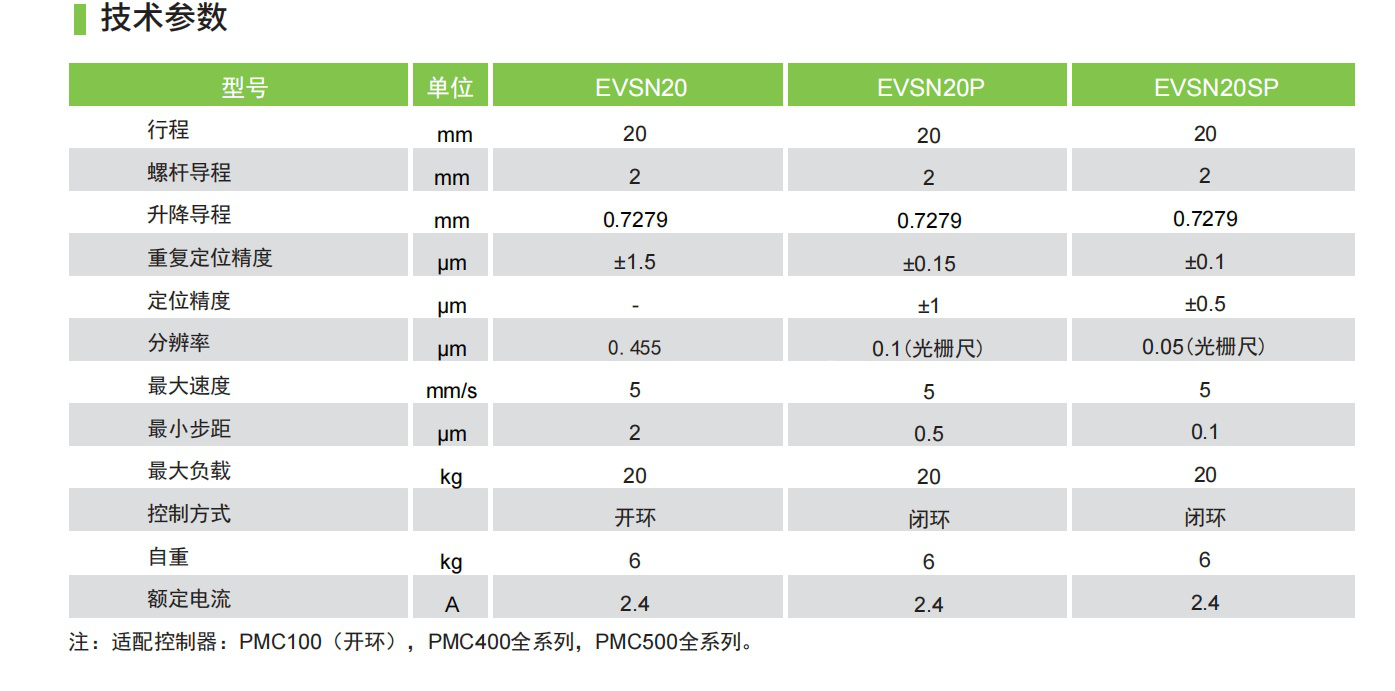

Specifications
| Parameter | Value |
|---|---|
| Travel Range | 20mm |
| Screw Lead | 2mm |
| Lifting Lead | 0.7279mm |
| Repeat Positioning Accuracy | ±1.5μm (EVSN20), ±0.15μm (EVSN20P), ±0.1μm (EVSN20SP) |
| Positioning Accuracy | - (EVSN20), ±1μm (EVSN20P), ±0.5μm (EVSN20SP) |
| Resolution | 0.455μm (EVSN20), 0.1μm (EVSN20P), 0.05μm (EVSN20SP) |
| Max Speed | 5mm/s |
| Min Step Distance | 5mm/s (EVSN20), 0.1mm/s (EVSN20P, EVSN20SP) |
| Max Load | 20kg |
| Control Method | 开环 (EVSN20), 闭环 (EVSN20P, EVSN20SP) |
| Self Weight | 6kg |
| Rated current | 2.4A |
