ERDA200

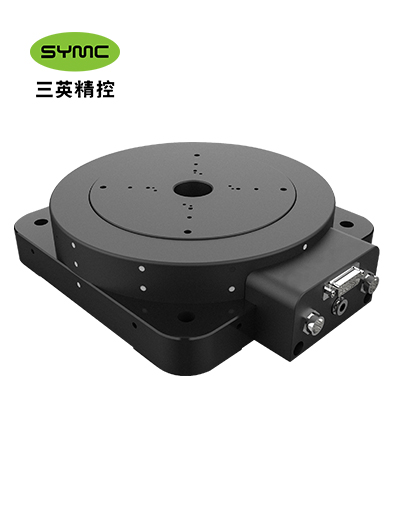

ERDA200 is a high-precision rotary stage designed for applications requiring accurate positioning and rotation. It features a direct drive motor and an optical encoder feedback system, ensuring excellent performance in demanding environments.
Save to Favorites
Overview

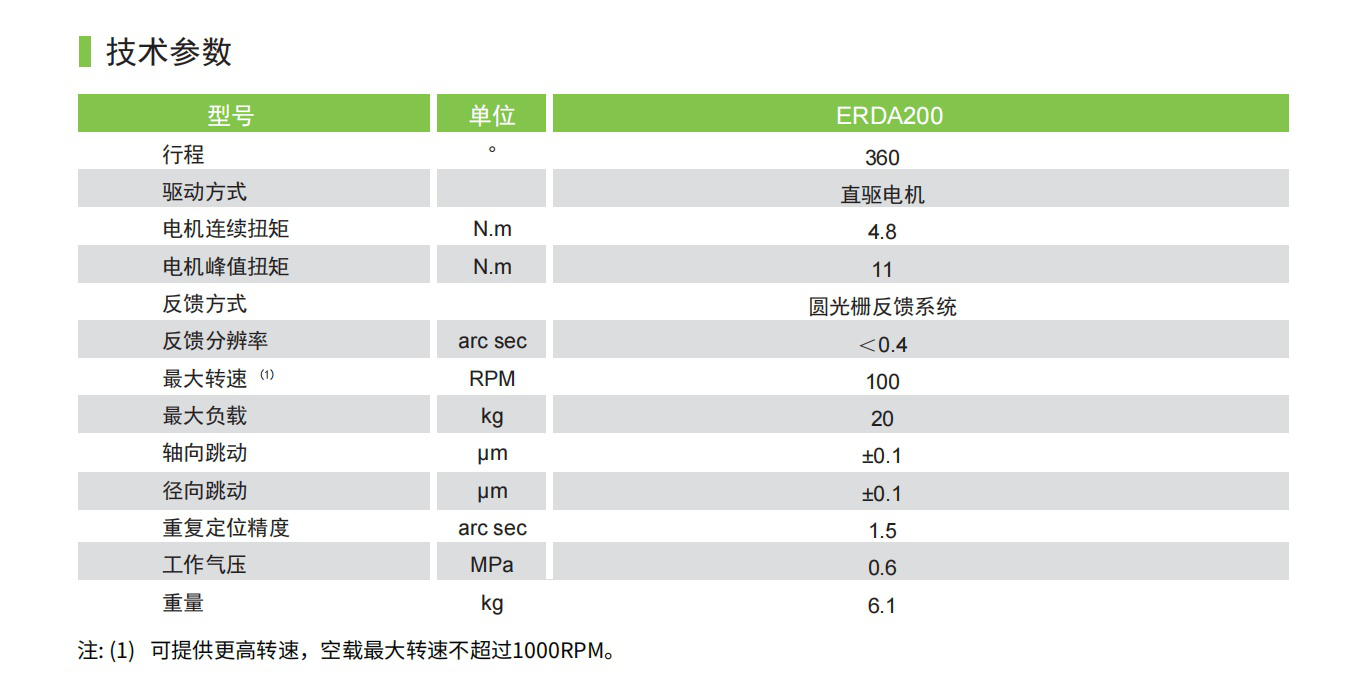

Specifications
| Parameter | Value |
|---|---|
| Travel Range | 360° |
| Drive Mode | Direct drive motor |
| Motor Continuous Torque | 4.8N·m |
| Motor Peak Torque | 11N·m |
| Feedback Mode | Optical encoder feedback system |
| Feedback Resolution | <0.4arcsec |
| Maximum Speed | 100RPM |
| Maximum Load | 20kg |
| Axial Runout | ±0.1μm |
| Radial Runout | ±0.1μm |
| Repeatability | 1.5arcsec |
| Working Air Pressure | 0.6MPa |
| Weight | 6.1kg |
