ERSP Series Precision Rotary Stages
The ERSP series precision rotary stages are designed for high-accuracy positioning and rotation applications. They feature robust construction, smooth operation, and precise control, making them ideal for various industrial and scientific uses.
Save to Favorites
Overview

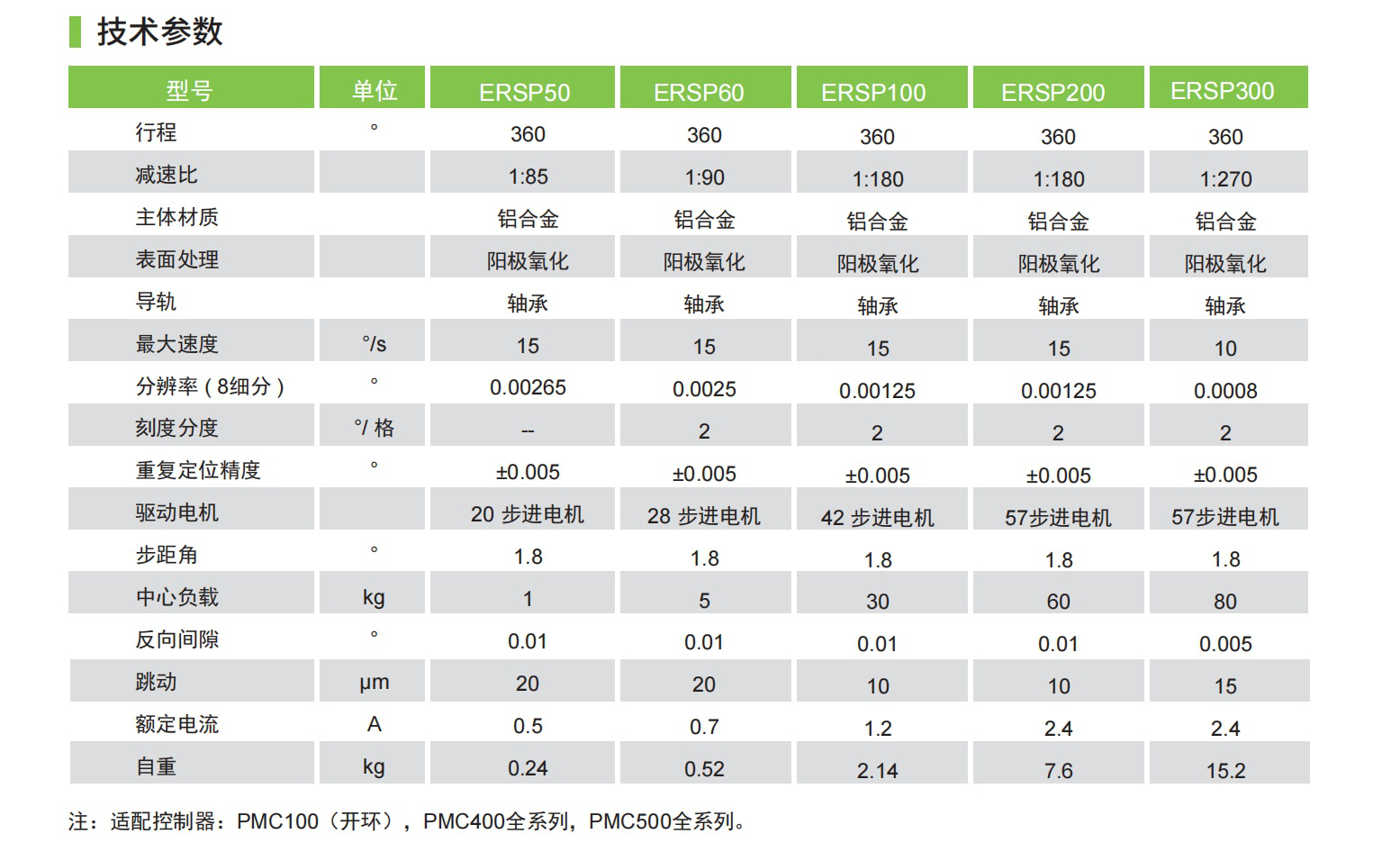

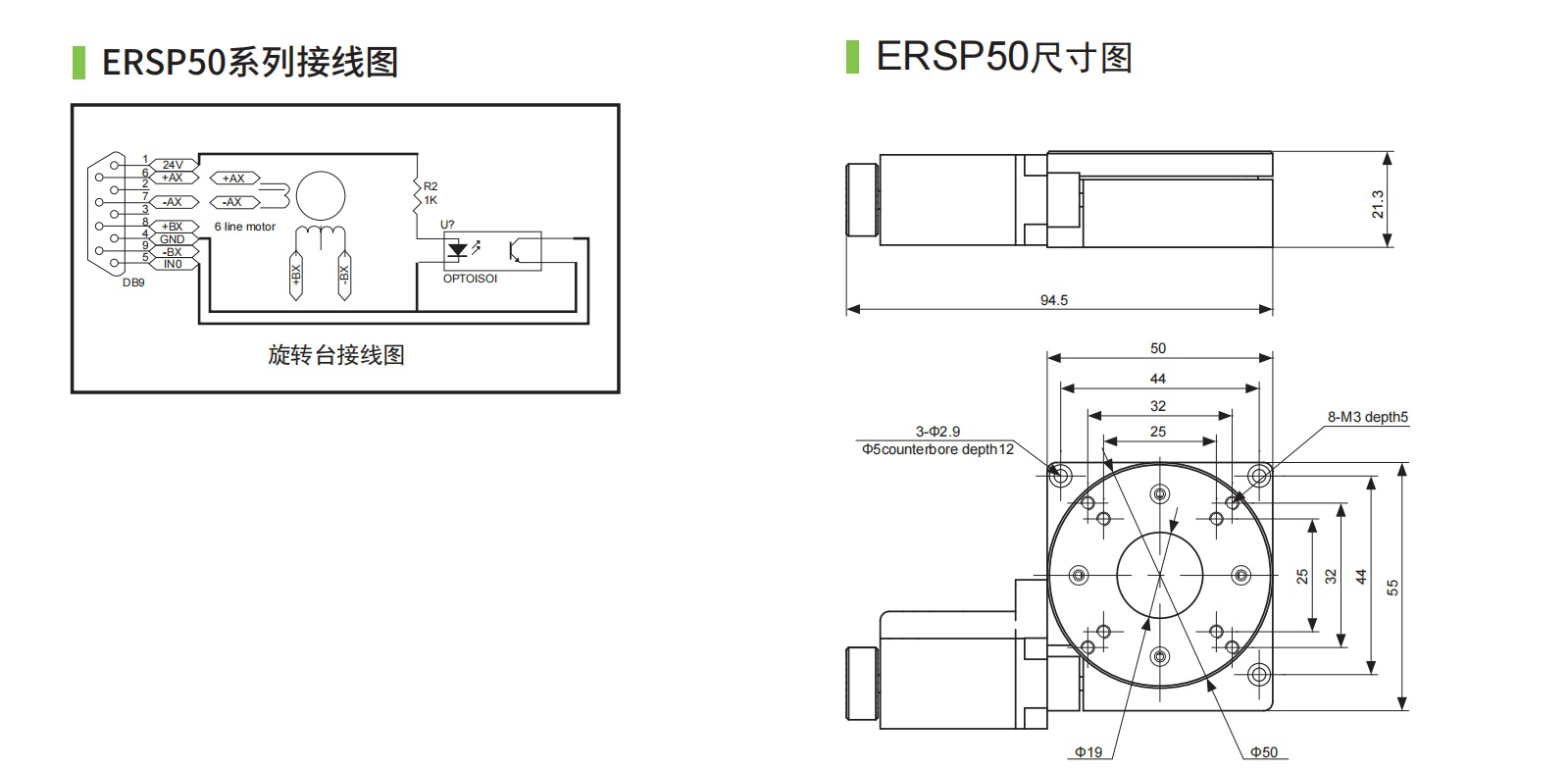

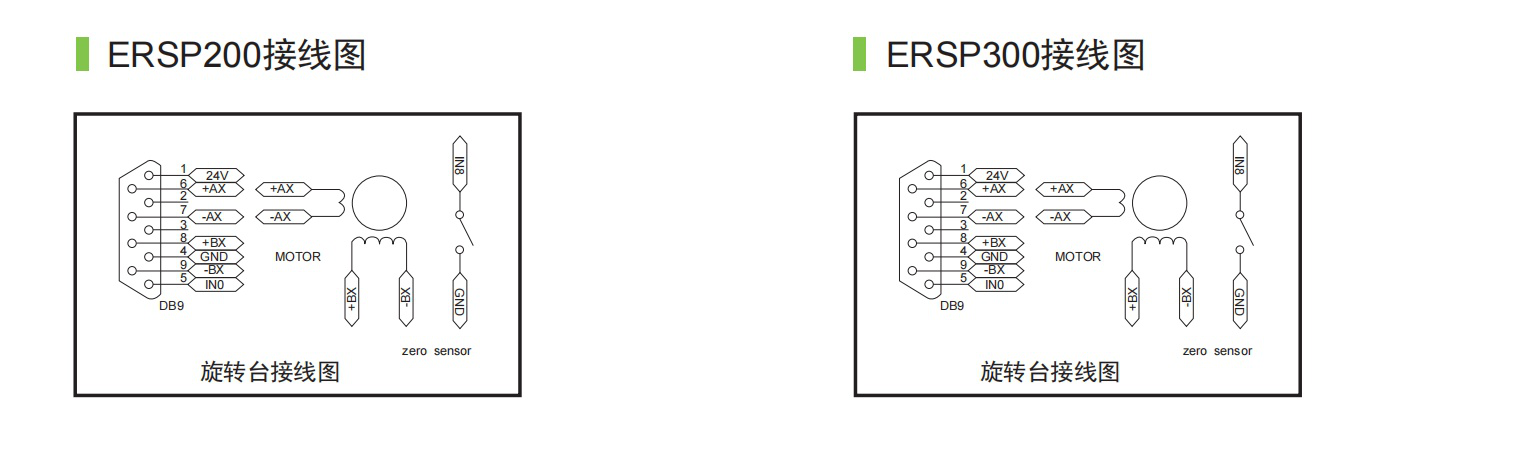

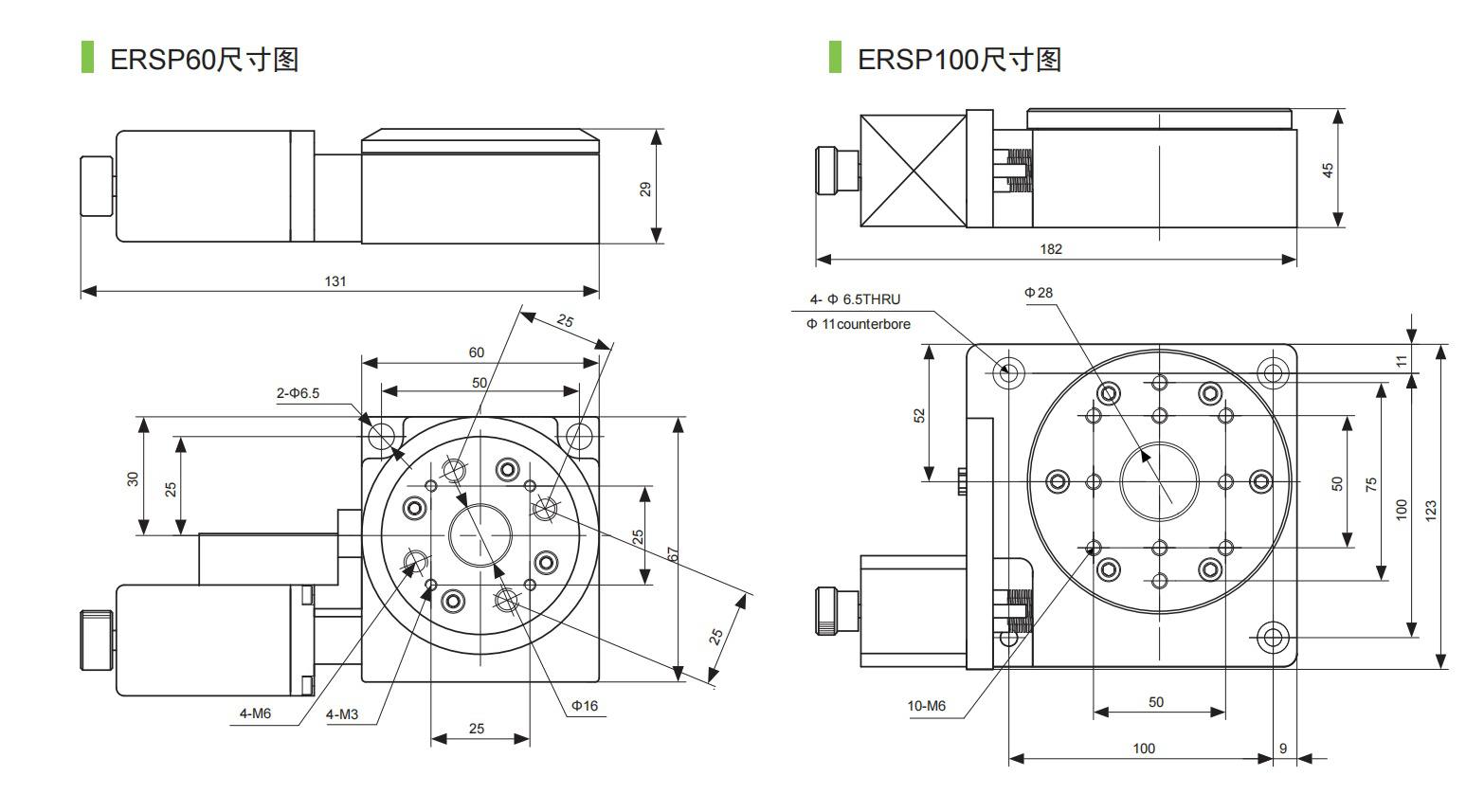

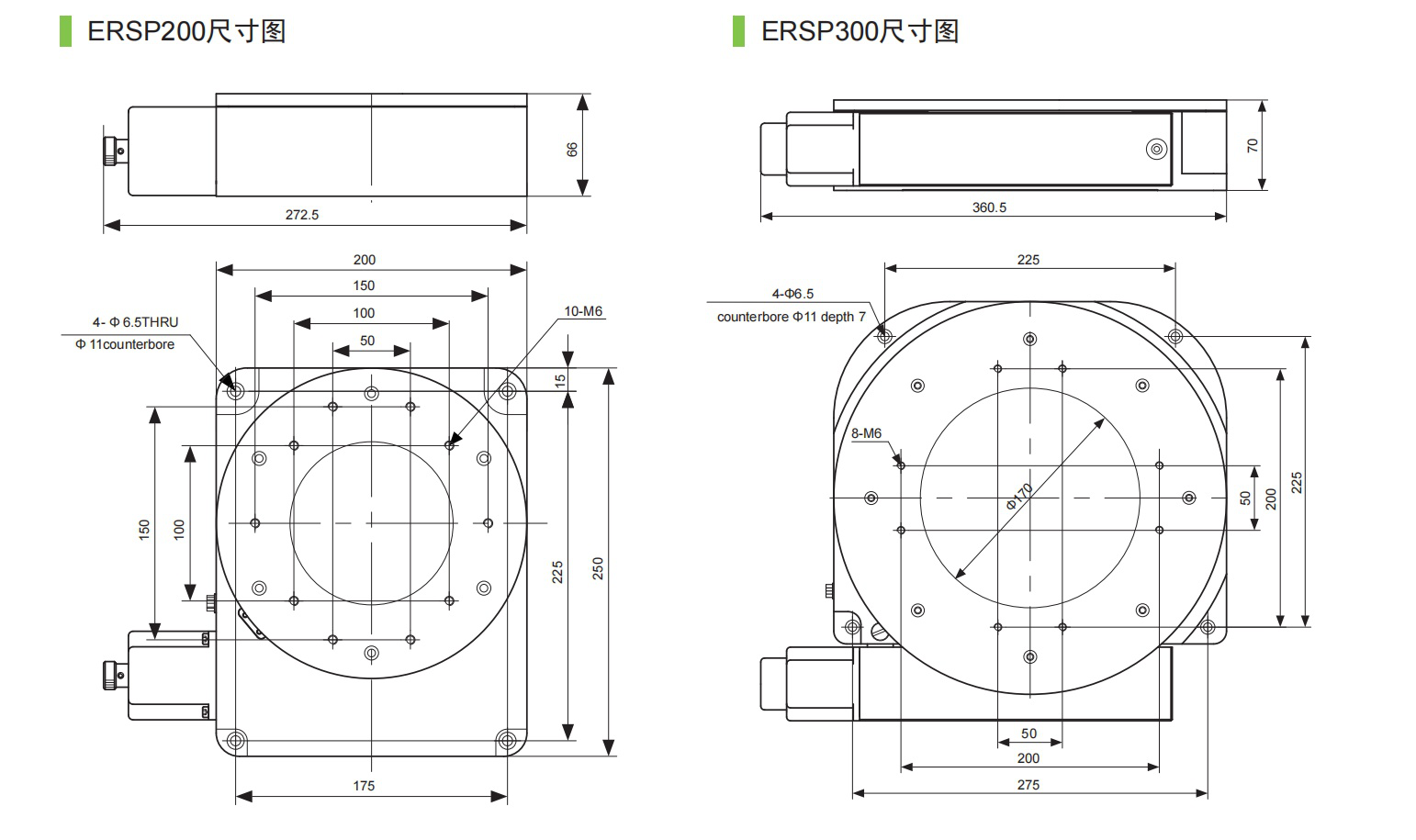

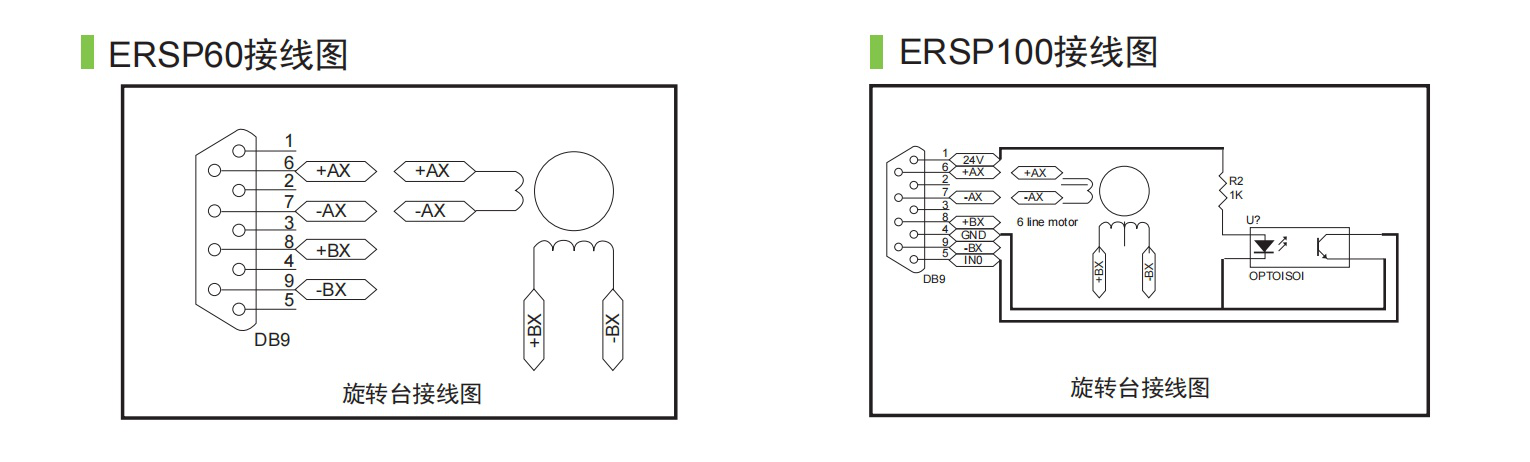

Specifications
| Parameter | Value |
|---|---|
| Travel Range (°) ERSP50 | 360° |
| Travel Range (°) ERSP60 | 360° |
| Travel Range (°) ERSP100 | 360° |
| Travel Range (°) ERSP200 | 360° |
| Travel Range (°) ERSP300 | 360° |
| Reduction Ratio ERSP50 | 1:85 |
| Reduction Ratio ERSP60 | 1:90 |
| Reduction Ratio ERSP100 | 1:180 |
| Reduction Ratio ERSP200 | 1:180 |
| Reduction Ratio ERSP300 | 1:270 |
| Main Material ERSP50 | Aluminum alloy |
| Main Material ERSP60 | Aluminum alloy |
| Main Material ERSP100 | Aluminum alloy |
| Main Material ERSP200 | Aluminum alloy |
| Main Material ERSP300 | Aluminum alloy |
| Surface Treatment ERSP50 | Anodized |
| Surface Treatment ERSP60 | Anodized |
| Surface Treatment ERSP100 | Anodized |
| Surface Treatment ERSP200 | Anodized |
| Surface Treatment ERSP300 | Anodized |
| Guide ERSP50 | Bearing |
| Guide ERSP60 | Bearing |
| Guide ERSP100 | Bearing |
| Guide ERSP200 | Bearing |
| Guide ERSP300 | Bearing |
| Maximum Speed (°/s) ERSP50 | 15 |
| Maximum Speed (°/s) ERSP60 | 15 |
| Maximum Speed (°/s) ERSP100 | 15 |
| Maximum Speed (°/s) ERSP200 | 10 |
| Maximum Speed (°/s) ERSP300 | 10 |
| Resolution (8 Subdivisions) ERSP50 | 0.00265 |
| Resolution (8 Subdivisions) ERSP60 | 0.0025 |
| Resolution (8 Subdivisions) ERSP100 | 0.00125 |
| Resolution (8 Subdivisions) ERSP200 | 0.00125 |
| Resolution (8 Subdivisions) ERSP300 | 0.0008 |
| Graduation ERSP50 | 2 |
| Graduation ERSP60 | 2 |
| Graduation ERSP100 | 2 |
| Graduation ERSP200 | 2 |
| Graduation ERSP300 | 2 |
| Repeatability ERSP50 | ±0.005 |
| Repeatability ERSP60 | ±0.005 |
| Repeatability ERSP100 | ±0.005 |
| Repeatability ERSP200 | ±0.005 |
| Repeatability ERSP300 | ±0.005 |
| Drive Motor ERSP50 | 20-step motor |
| Drive Motor ERSP60 | 28-step motor |
| Drive Motor ERSP100 | 42-step motor |
| Drive Motor ERSP200 | 57-step motor |
| Drive Motor ERSP300 | 57-step motor |
| Step Angle (°) ERSP50 | 1.8° |
| Step Angle (°) ERSP60 | 1.8° |
| Step Angle (°) ERSP100 | 1.8° |
| Step Angle (°) ERSP200 | 1.8° |
| Step Angle (°) ERSP300 | 1.8° |
| Central Load (kg) ERSP50 | 1kg |
| Central Load (kg) ERSP60 | 1kg |
| Central Load (kg) ERSP100 | 8kg |
| Central Load (kg) ERSP200 | 15kg |
| Central Load (kg) ERSP300 | 20kg |
| Backlash (°) ERSP50 | 0.01° |
| Backlash (°) ERSP60 | 0.01° |
| Backlash (°) ERSP100 | 0.01° |
| Backlash (°) ERSP200 | 0.01° |
| Backlash (°) ERSP300 | 0.01° |
| Runout (μm) ERSP50 | 4μm |
| Runout (μm) ERSP60 | 4μm |
| Runout (μm) ERSP100 | 4μm |
| Runout (μm) ERSP200 | 4μm |
| Runout (μm) ERSP300 | 4μm |
| Rated Current (A) ERSP50 | 0.5A |
| Rated Current (A) ERSP60 | 0.5A |
| Rated Current (A) ERSP100 | 1.2A |
| Rated Current (A) ERSP200 | 2.14A |
| Rated Current (A) ERSP300 | 2.14A |
| Weight (kg) ERSP50 | 0.24kg |
| Weight (kg) ERSP60 | 0.4kg |
| Weight (kg) ERSP100 | 1.5kg |
| Weight (kg) ERSP200 | 2.5kg |
| Weight (kg) ERSP300 | 3.2kg |
