PPS-110LM
PPS-110LM is a high-precision linear motor stage designed for applications requiring accurate positioning and smooth motion control.
Save to Favorites
Overview

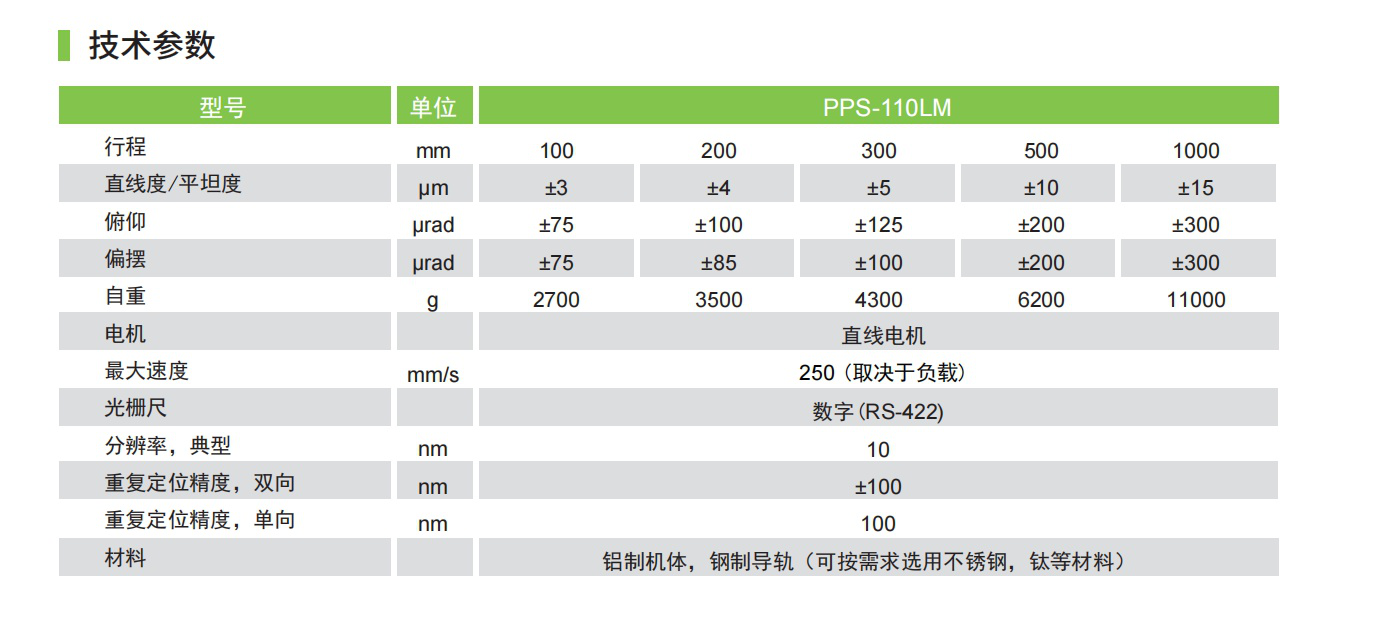

Specifications
| Parameter | Value |
|---|---|

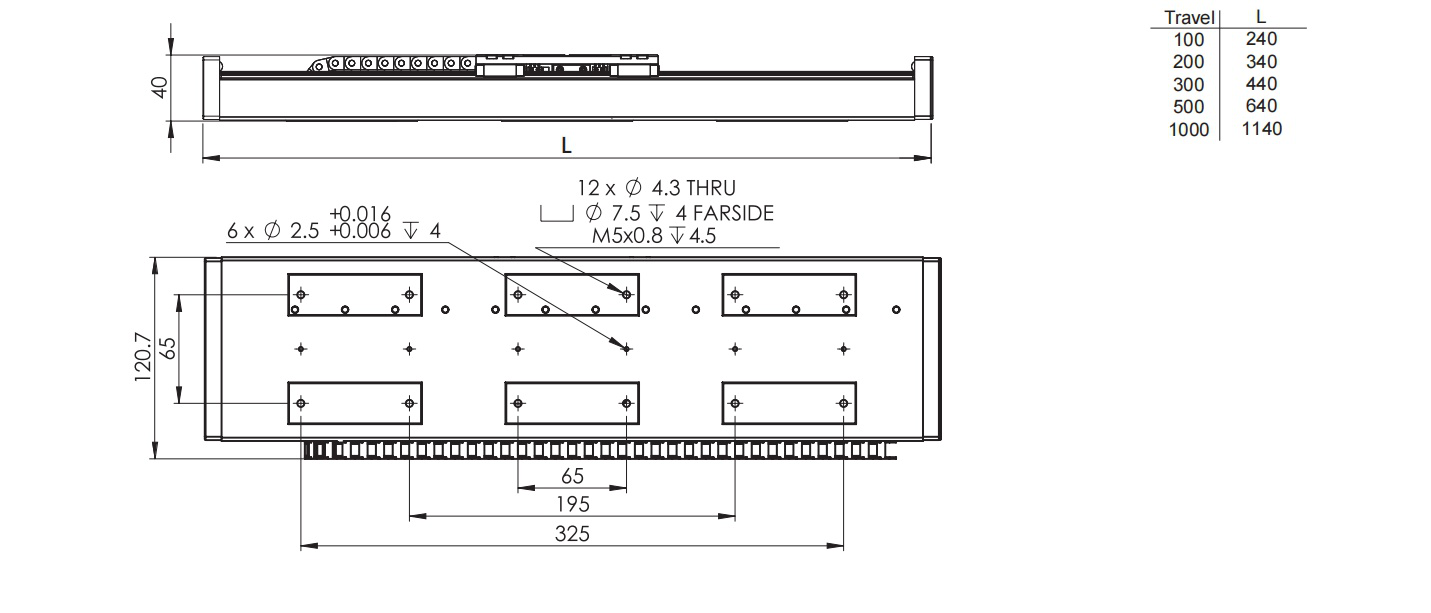

| Travel(mm) 100 | 100mm |
| Travel(mm) 200 | 200mm |
| Travel(mm) 300 | 300mm |
| Travel(mm) 500 | 500mm |
| Travel(mm) 1000 | 1000mm |
| Straightness/Flatness(μm) 100 | ±3μm |
| Straightness/Flatness(μm) 200 | ±4μm |
| Straightness/Flatness(μm) 300 | ±5μm |
| Straightness/Flatness(μm) 500 | ±10μm |
| Straightness/Flatness(μm) 1000 | ±15μm |
| Pitch(μrad) 100 | ±75 |
| Pitch(μrad) 200 | ±100 |
| Pitch(μrad) 300 | ±125 |
| Pitch(μrad) 500 | ±200 |
| Pitch(μrad) 1000 | ±300 |
| Yaw(μrad) 100 | ±75 |
| Yaw(μrad) 200 | ±85 |
| Yaw(μrad) 300 | ±100 |
| Yaw(μrad) 500 | ±200 |
| Yaw(μrad) 1000 | ±300 |
| Weight(g) 100 | 2700g |
| Weight(g) 200 | 3500g |
| Weight(g) 300 | 4300g |
| Weight(g) 500 | 6200g |
| Weight(g) 1000 | 11000g |
| Encoder | Digital (RS-422) |
| Resolution, Typical(nm) | 10nm |
| Unidirectional Repeatability(nm) | 100nm |

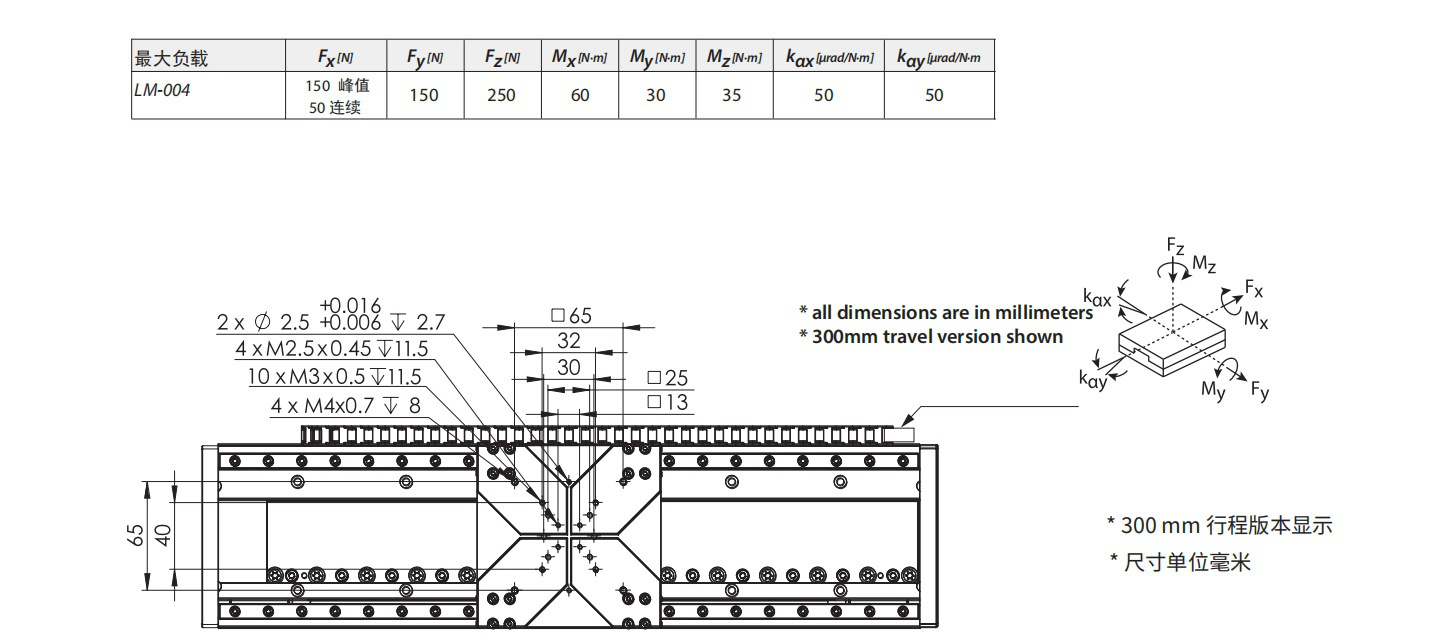

| Max Load Fx(N) | 150 peak, 50 continuousN |
| Max Load Fy(N) | 150N |
| Max Load Fz(N) | 250N |
| Max Load Mx(N·m) | 60N·m |
| Max Load My(N·m) | 35N·m |
| Max Load Mz(N·m) | 50N·m |
| Stiffness kxx(μrad/N·m) | 50 |
| Stiffness kxy(μrad/N·m) | 50 |
