NS-ZT15 Series Piezoelectric Actuator
The NS-ZT15 series piezoelectric actuator is a high-precision device designed for applications requiring precise linear motion control. It features compact dimensions, high thrust force, and low weight, making it suitable for various industrial and scientific applications.
Save to Favorites
Overview
Specifications

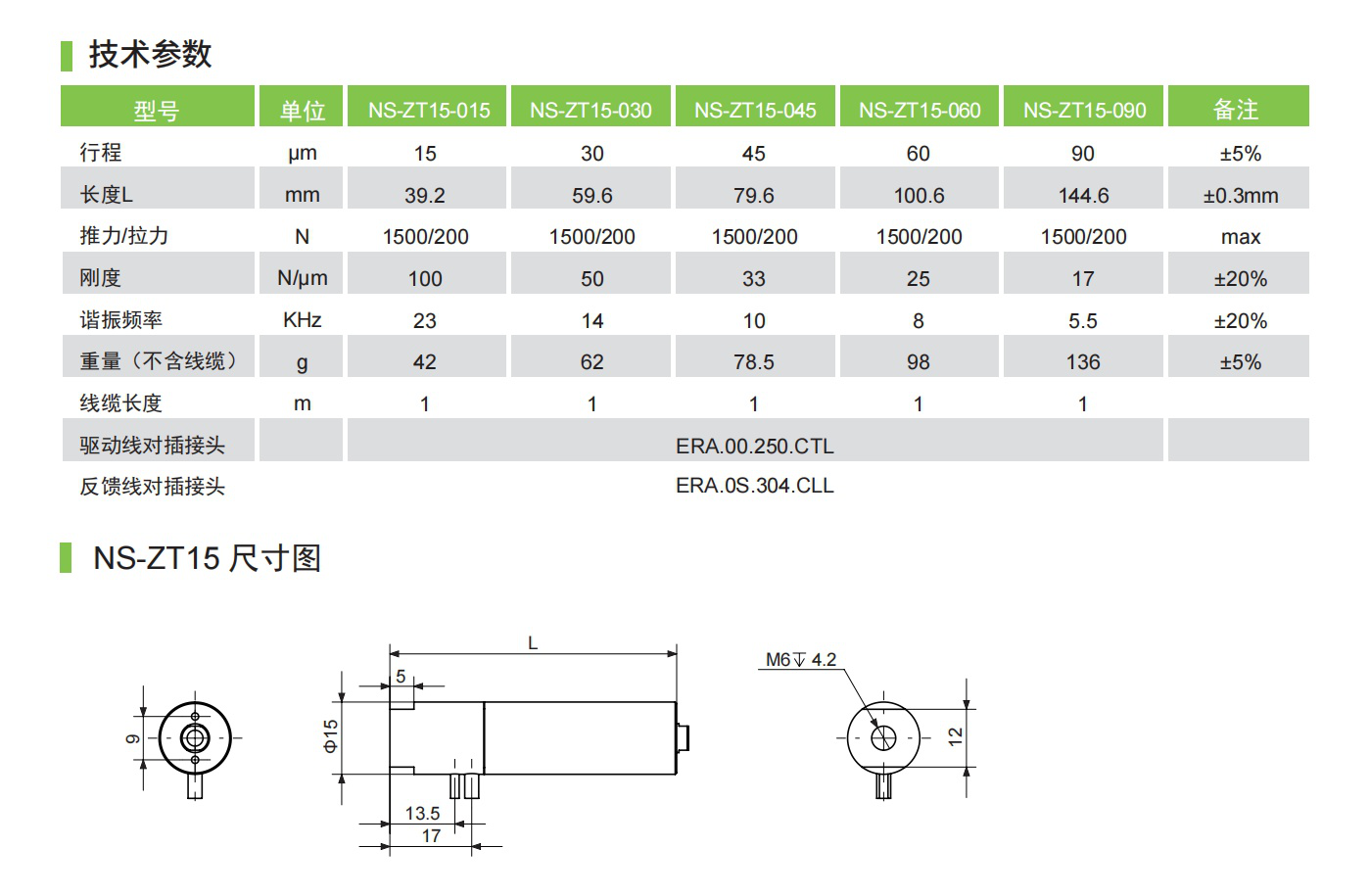

| Parameter | Value |
|---|---|
| Travel (μm) NS-ZT15-015 | 15±5% |
| Travel (μm) NS-ZT15-030 | 30±5% |
| Travel (μm) NS-ZT15-045 | 45±5% |
| Travel (μm) NS-ZT15-060 | 60±5% |
| Travel (μm) NS-ZT15-090 | 90±5% |
| Length (mm) NS-ZT15-015 | 39.2±0.3 |
| Length (mm) NS-ZT15-030 | 59.6±0.3 |
| Length (mm) NS-ZT15-045 | 79.6±0.3 |
| Length (mm) NS-ZT15-060 | 100.6±0.3 |
| Length (mm) NS-ZT15-090 | 144.6±0.3 |
| Thrust/Pull Force (N) NS-ZT15-015 | 1500/200 max |
| Thrust/Pull Force (N) NS-ZT15-030 | 1500/200 max |
| Thrust/Pull Force (N) NS-ZT15-045 | 1500/200 max |
| Thrust/Pull Force (N) NS-ZT15-060 | 1500/200 max |
| Thrust/Pull Force (N) NS-ZT15-090 | 1500/200 max |
| Stiffness (N/μm) NS-ZT15-015 | 100±20% |
| Stiffness (N/μm) NS-ZT15-030 | 50±20% |
| Stiffness (N/μm) NS-ZT15-045 | 33±20% |
| Stiffness (N/μm) NS-ZT15-060 | 25±20% |
| Stiffness (N/μm) NS-ZT15-090 | 17±20% |
| Resonant Frequency (KHz) NS-ZT15-015 | 23±20% |
| Resonant Frequency (KHz) NS-ZT15-030 | 14±20% |
| Resonant Frequency (KHz) NS-ZT15-045 | 10±20% |
| Resonant Frequency (KHz) NS-ZT15-060 | 8±20% |
| Resonant Frequency (KHz) NS-ZT15-090 | 5.5±20% |
| Weight (g) NS-ZT15-015 | 42±5% |
| Weight (g) NS-ZT15-030 | 62±5% |
| Weight (g) NS-ZT15-045 | 78.5±5% |
| Weight (g) NS-ZT15-060 | 98±5% |
| Weight (g) NS-ZT15-090 | 136±5% |
| Cable Length (m) | 1 |

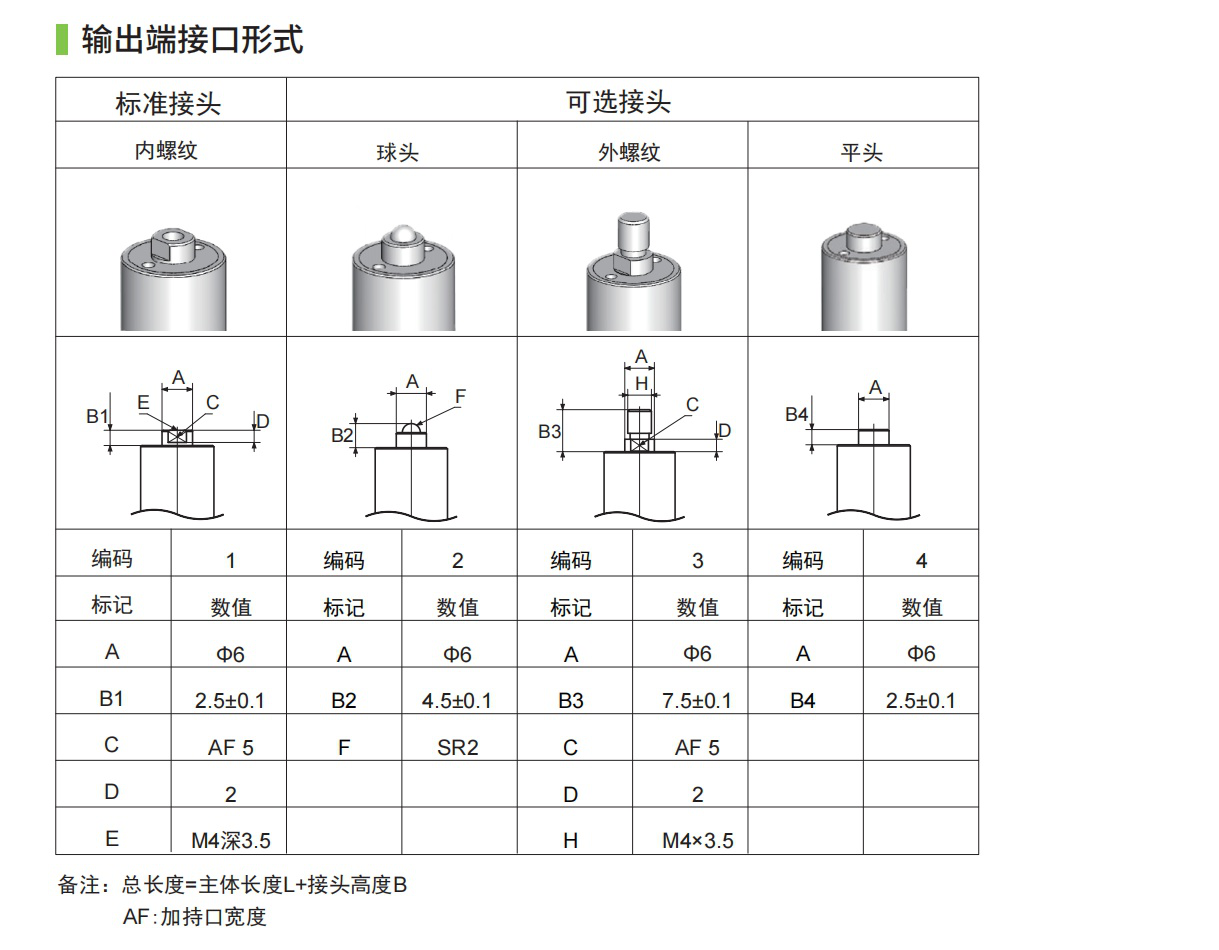

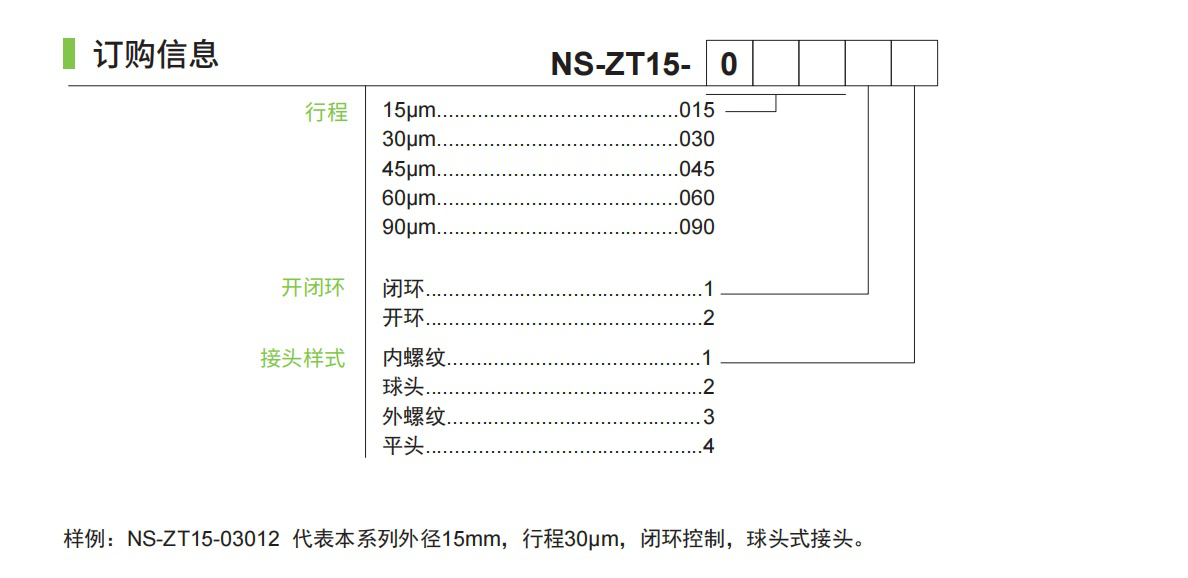

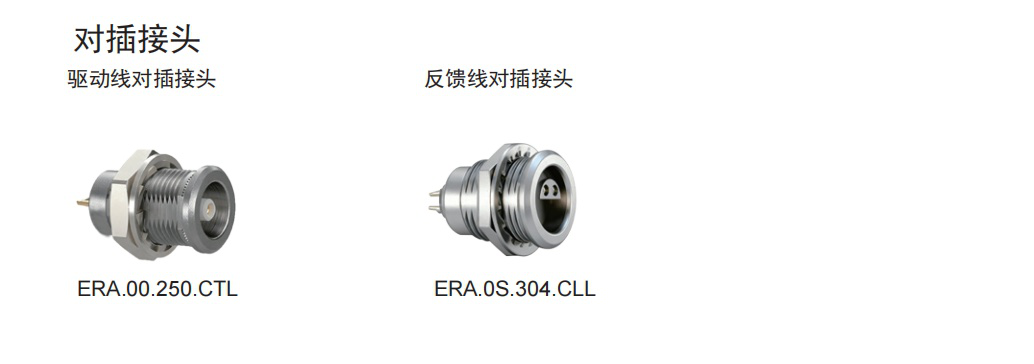

| Drive Line Plug | ERA.00.250.CTL |
| Feedback Line Plug | ERA.OS.304.CLL |
