NNS-ZTMF Series Actuators
The NNS-ZTMF series actuators are precision control devices designed for high-performance applications requiring accurate motion control and stability.
Save to Favorites
Overview
Specifications

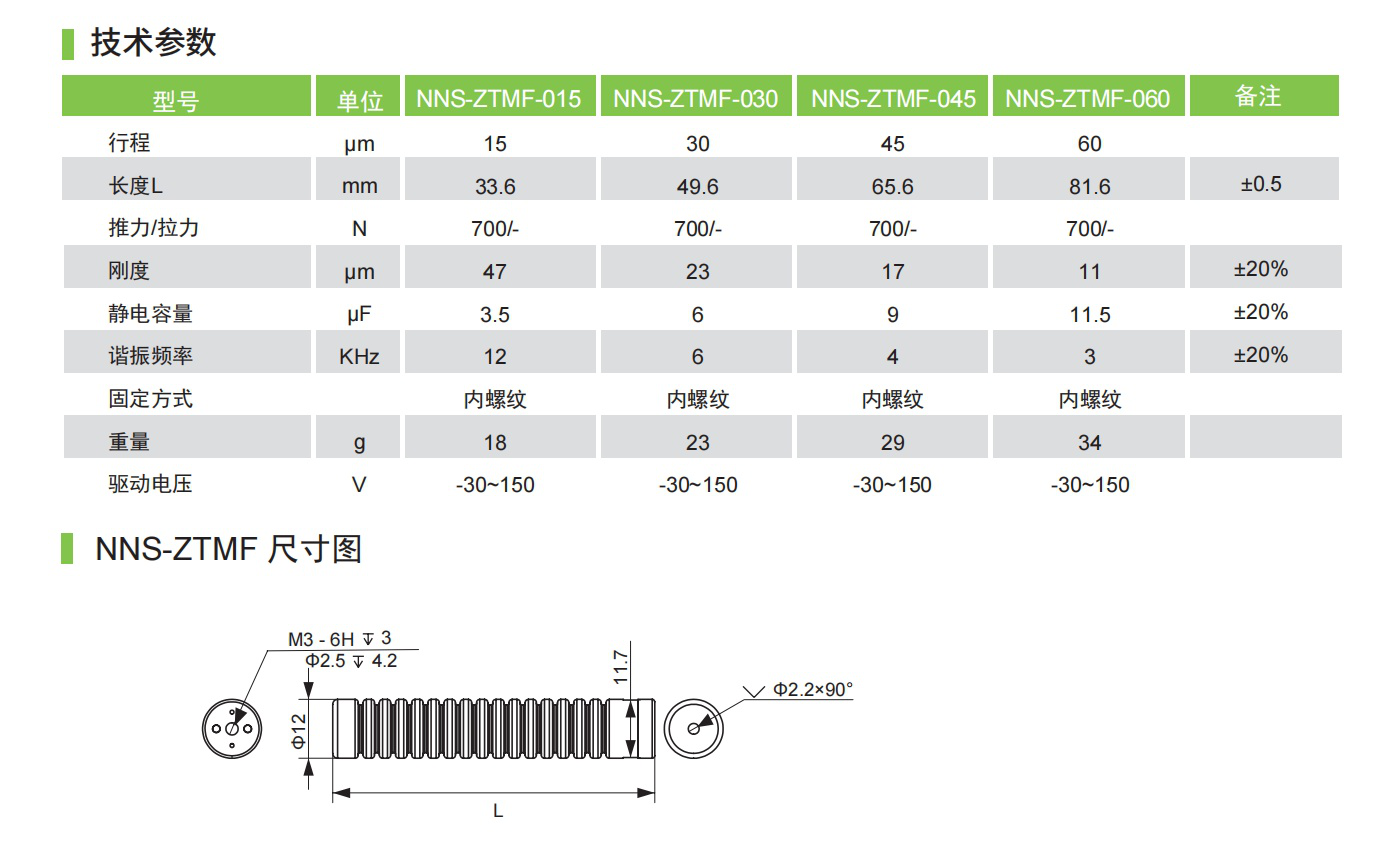

| Parameter | Value |
|---|---|
| Stroke (μm) NNS-ZTMF-015 | 15μm |
| Stroke (μm) NNS-ZTMF-030 | 30μm |
| Stroke (μm) NNS-ZTMF-045 | 45μm |
| Stroke (μm) NNS-ZTMF-060 | 60μm |
| Length L (mm) NNS-ZTMF-015 | 33.6mm |
| Length L (mm) NNS-ZTMF-030 | 49.6mm |
| Length L (mm) NNS-ZTMF-045 | 65.6mm |
| Length L (mm) NNS-ZTMF-060 | 81.6mm |
| Thrust/Force (N) NNS-ZTMF-015 | 700/- |
| Thrust/Force (N) NNS-ZTMF-030 | 700/- |
| Thrust/Force (N) NNS-ZTMF-045 | 700/- |
| Thrust/Force (N) NNS-ZTMF-060 | 700/- |
| Stiffness (μm) NNS-ZTMF-015 | 47μm |
| Stiffness (μm) NNS-ZTMF-030 | 23μm |
| Stiffness (μm) NNS-ZTMF-045 | 17μm |
| Stiffness (μm) NNS-ZTMF-060 | 11μm |
| Static Capacity (μF) NNS-ZTMF-015 | 3.5 |
| Static Capacity (μF) NNS-ZTMF-030 | 6 |
| Static Capacity (μF) NNS-ZTMF-045 | 9 |
| Static Capacity (μF) NNS-ZTMF-060 | 11.5 |
| Resonant Frequency (KHz) NNS-ZTMF-015 | 12 |
| Resonant Frequency (KHz) NNS-ZTMF-030 | 6 |
| Resonant Frequency (KHz) NNS-ZTMF-045 | 4 |
| Resonant Frequency (KHz) NNS-ZTMF-060 | 3 |
| Fixing Method NNS-ZTMF-015 | Internal thread |
| Fixing Method NNS-ZTMF-030 | Internal thread |
| Fixing Method NNS-ZTMF-045 | Internal thread |
| Fixing Method NNS-ZTMF-060 | Internal thread |
| Weight (g) NNS-ZTMF-015 | 18g |
| Weight (g) NNS-ZTMF-030 | 23g |
| Weight (g) NNS-ZTMF-045 | 29g |
| Weight (g) NNS-ZTMF-060 | 34g |
| Driving Voltage (V) NNS-ZTMF-015 | -30~150V |
| Driving Voltage (V) NNS-ZTMF-030 | -30~150V |
| Driving Voltage (V) NNS-ZTMF-045 | -30~150V |
| Driving Voltage (V) NNS-ZTMF-060 | -30~150V |
