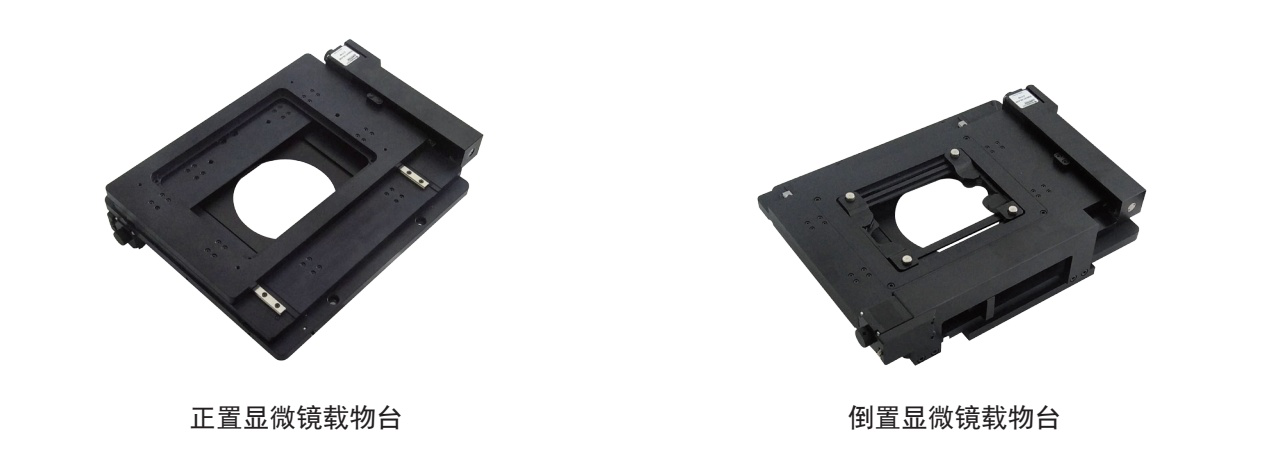

显微镜载物台系列
The microscope stage series is designed for precise positioning and stable operation, suitable for various upright and inverted microscopes.
Save to Favorites
Overview

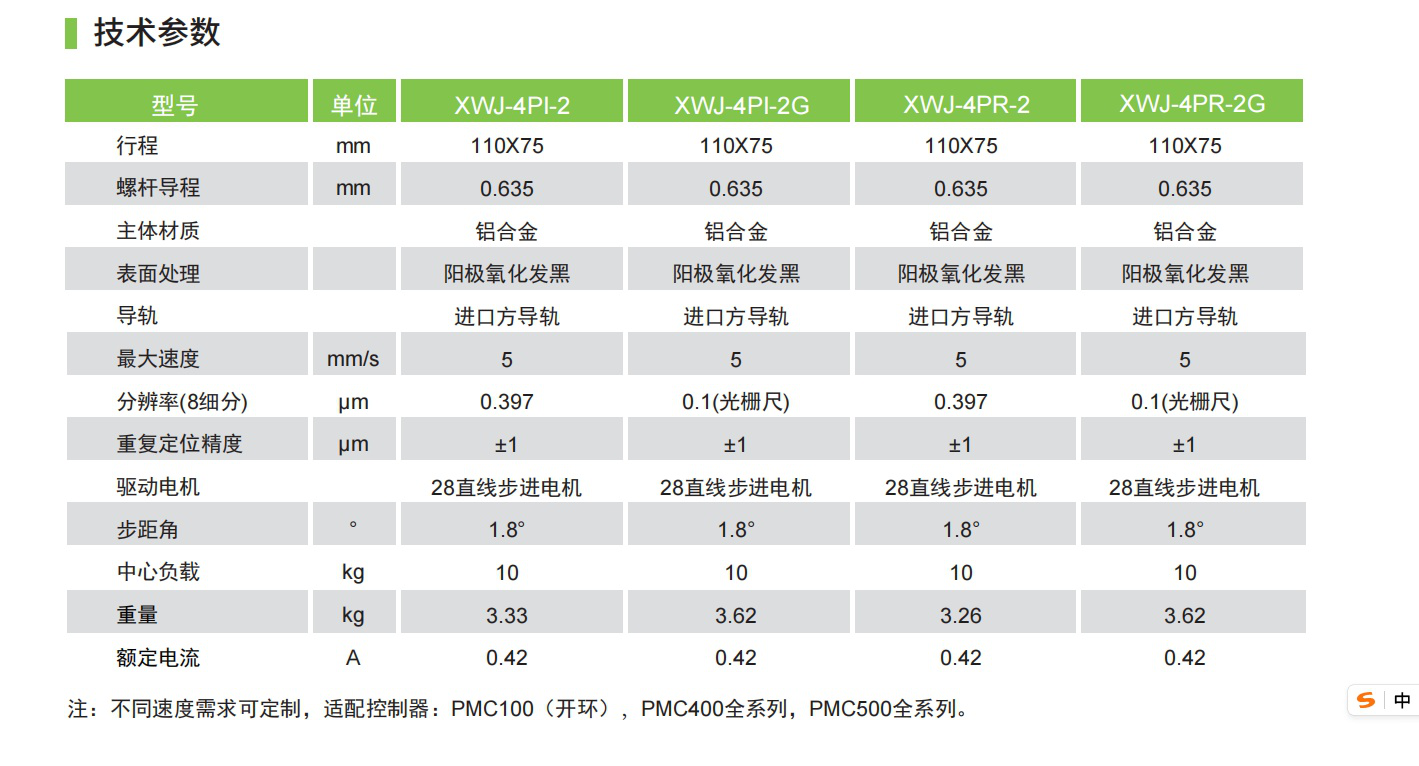

Specifications
| Parameter | Value |
|---|---|
| Travel Range | 110X75mm |
| Screw Lead | 0.635mm |
| Material | Aluminum alloy |
| Surface Treatment | Black anodizing |
| Guide Rail | Imported square guide rail |
| Max Speed | 5mm/s |
| Resolution (Subdivision) | 0.397μm |
| Repeat Positioning Accuracy | ±1μm |
| Drive Motor | 28 straight stepper motor |
| Step Angle | 1.8° |
| Central Load | 10kg |
| Weight | 3.33kg |
| Rated current | 0.42A |
Applications
Key Features
Datasheet
