NS-Z700-01
The NS-Z700-01 is a high-precision Z-axis actuator designed for applications requiring accurate positioning and stability. It features a capacitive sensor and is constructed with aluminum alloy for durability.
Save to Favorites
Overview

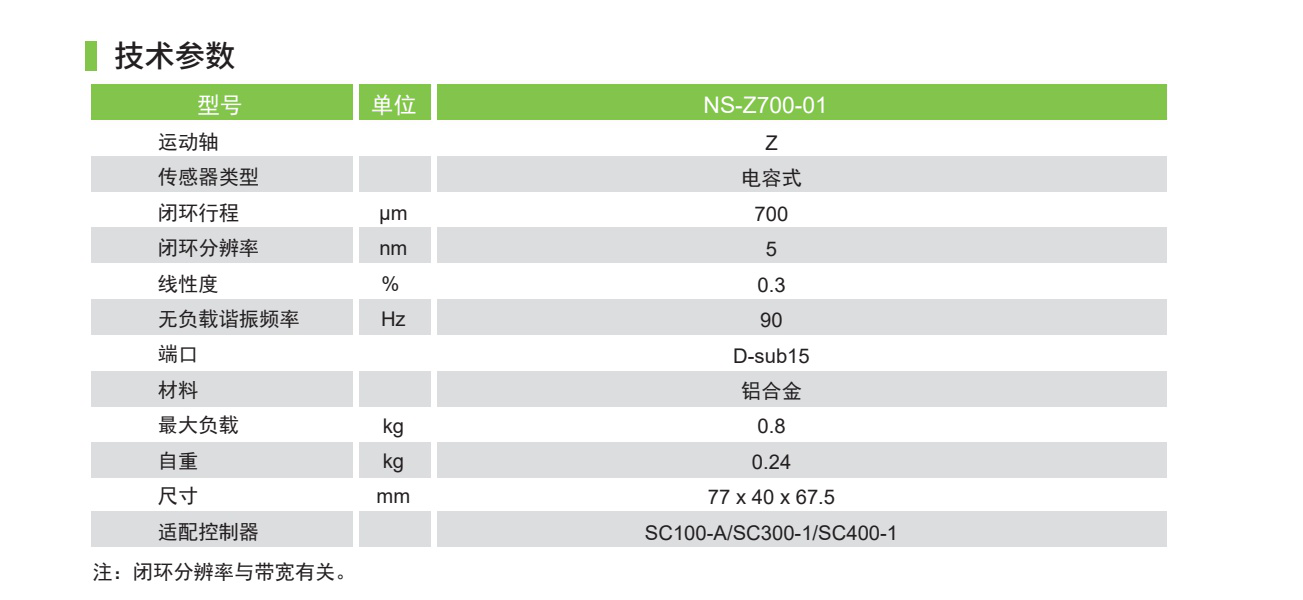

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | Z |
| Closed-loop Travel (μm) | 700μm |
| Closed-loop Resolution (nm) | 5nm |
| Linearity (%) | 0.3% |
| No-load Resonance Frequency (Hz) | 90Hz |
| Port | D-sub15 |
| Maximum Load (kg) | 0.8kg |
| Weight (kg) | 0.24kg |

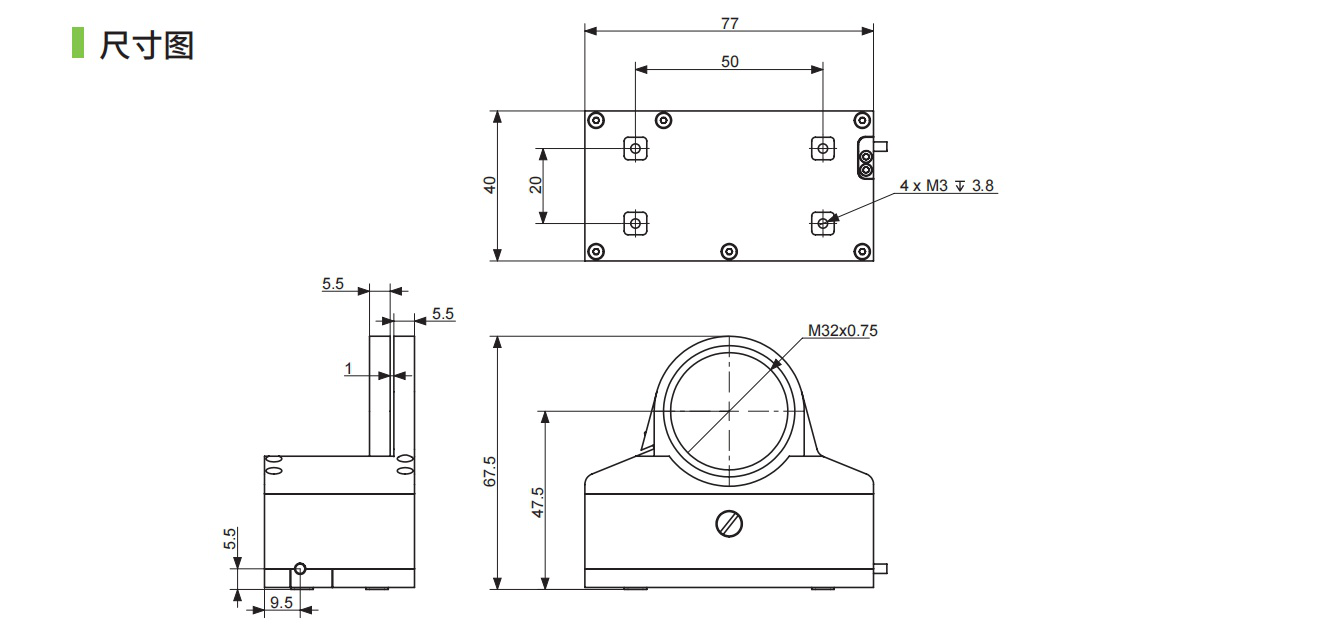

| Dimensions (mm) | 77x40x67.5 |
| Compatible Controllers | SC100-A/SC300-1/SC400-1 |
