HRXWJ-150R-2
The HRXWJ-150R-2 is a precision motion stage designed for high-accuracy positioning applications. It features advanced crossed roller guides and a robust aluminum alloy construction, ensuring smooth and stable operation.
Save to Favorites
Overview

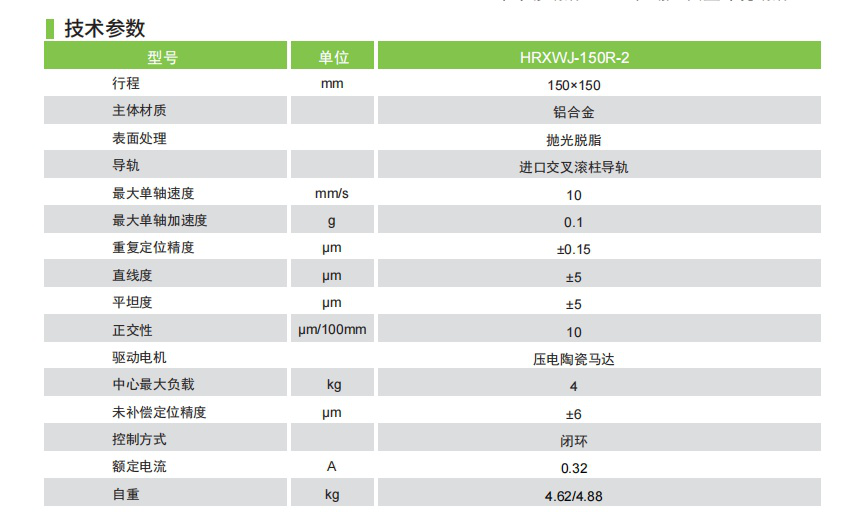

Specifications
| Parameter | Value |
|---|---|
| Travel Range (mm) | 150×150 |
| Main Material | Aluminum alloy |
| Surface Treatment | Polished and degreased |
| Guide | Imported crossed roller guides |
| Max Single Axis Speed (mm/s) | 10 |
| Max Single Axis Acceleration (mm/s²) | 0.1 |
| Repeatability (μm) | ±0.15 |
| Straightness (μm) | ±5 |
| Flatness (μm) | ±5 |
| Orthogonality (μm/100mm) | 10 |
| Drive Motor | Piezoelectric ceramic motor |
| Center Load (kg) | 4 |
| Uncompensated Positioning Accuracy (μm) | ±6 |
| Control Method | Closed loop |
| Rated Current (A) | 0.32 |
| Weight (kg) | 4.62/4.88 |
