PXIe-3063H
PXIe-3063H is a high-performance PXI Express chassis designed for advanced testing and measurement applications. It offers excellent system bandwidth, multiple slots, and reliable power management.
Save to Favorites
Overview

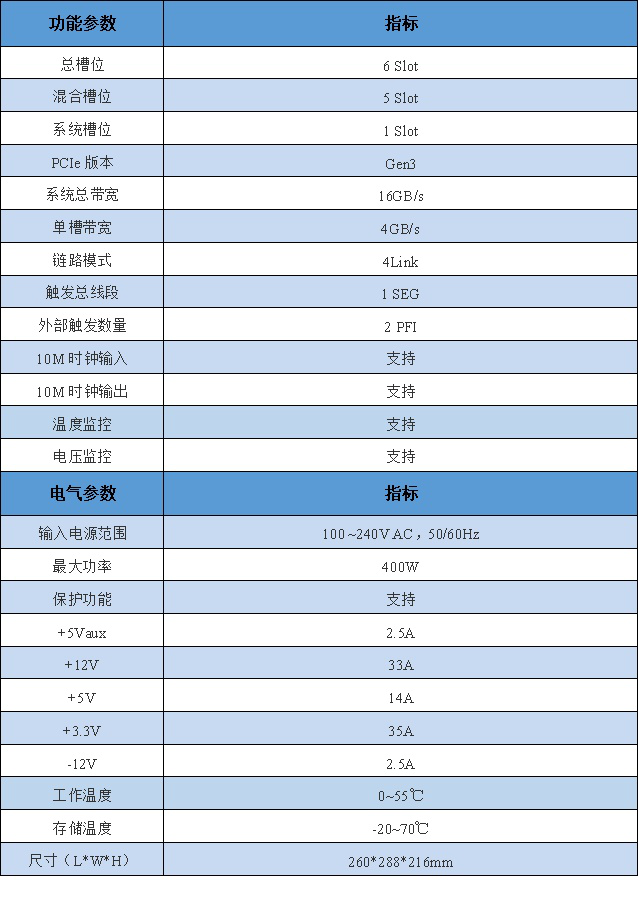

Specifications
| Parameter | Value |
|---|---|
| Total Slots | 6 Slot |
| Hybrid Slots | 5 Slot |
| System Slots | 1 Slot |
| PCIe Version | Gen3 |
| System Bandwidth | 16GB/s |
| Single Slot Bandwidth | 4GB/s |
| Link Mode | 4Link |
| Trigger Bus Segment | 1 SEG |
| External Trigger Quantity | 2 PFI |
| 10M Clock Input | Supported |
| 10M Clock Output | Supported |
| Temperature Monitoring | Supported |
| Voltage Monitoring | Supported |
| Input Power Range | 100~240VAC,50/60Hz |
| Maximum Power | 400W |
| Protection Function | Supported |
| +5Vaux | 2.5A |
| +12V | 33A |
| +5V | 14A |
| +3.3V | 35A |
| -12V | 2.5A |
| Operating Temperature | 0~55℃ |
| Storage Temperature | -20~70℃ |
| Dimensions (L*W*H) | 260*288*216mm |
