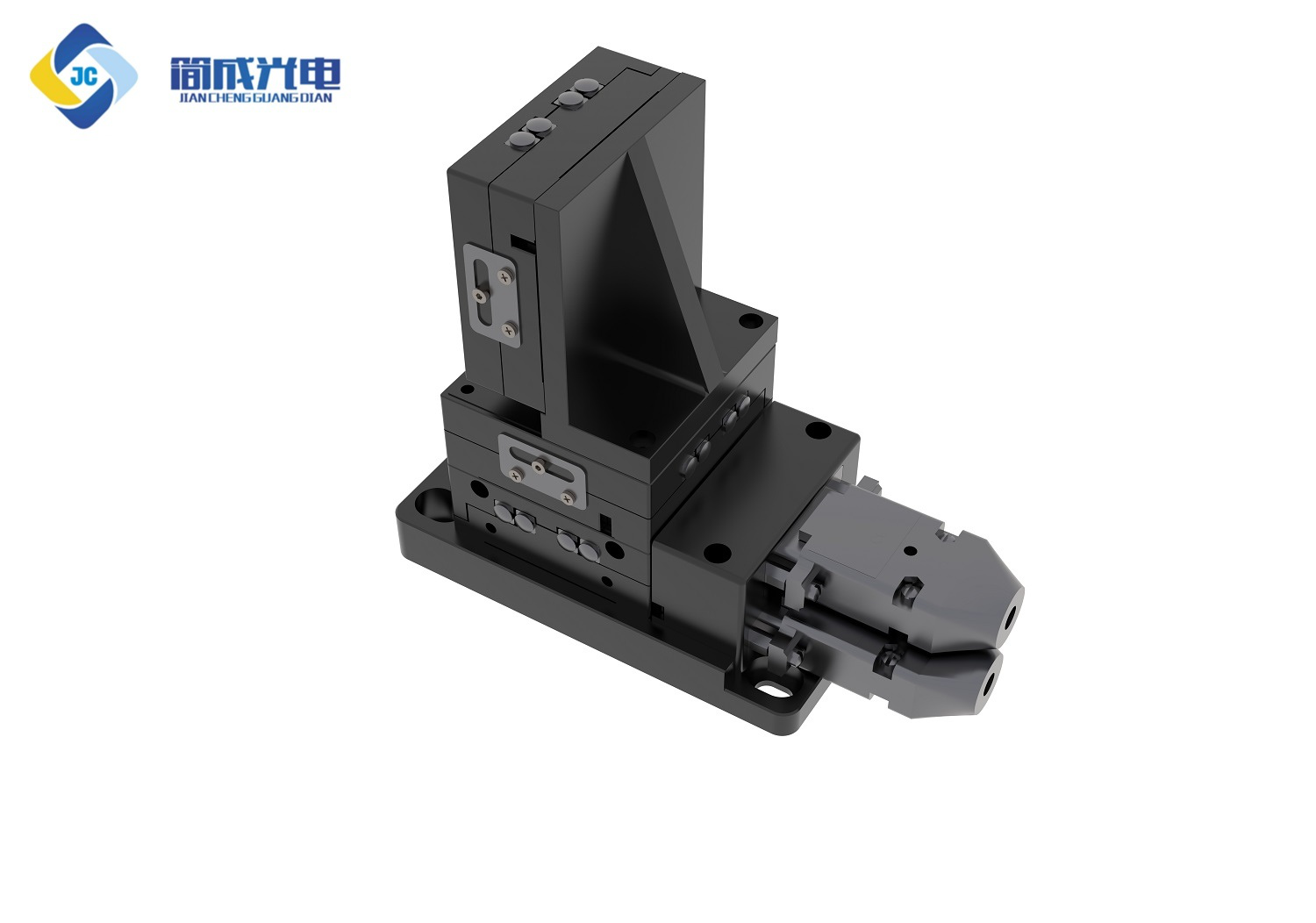

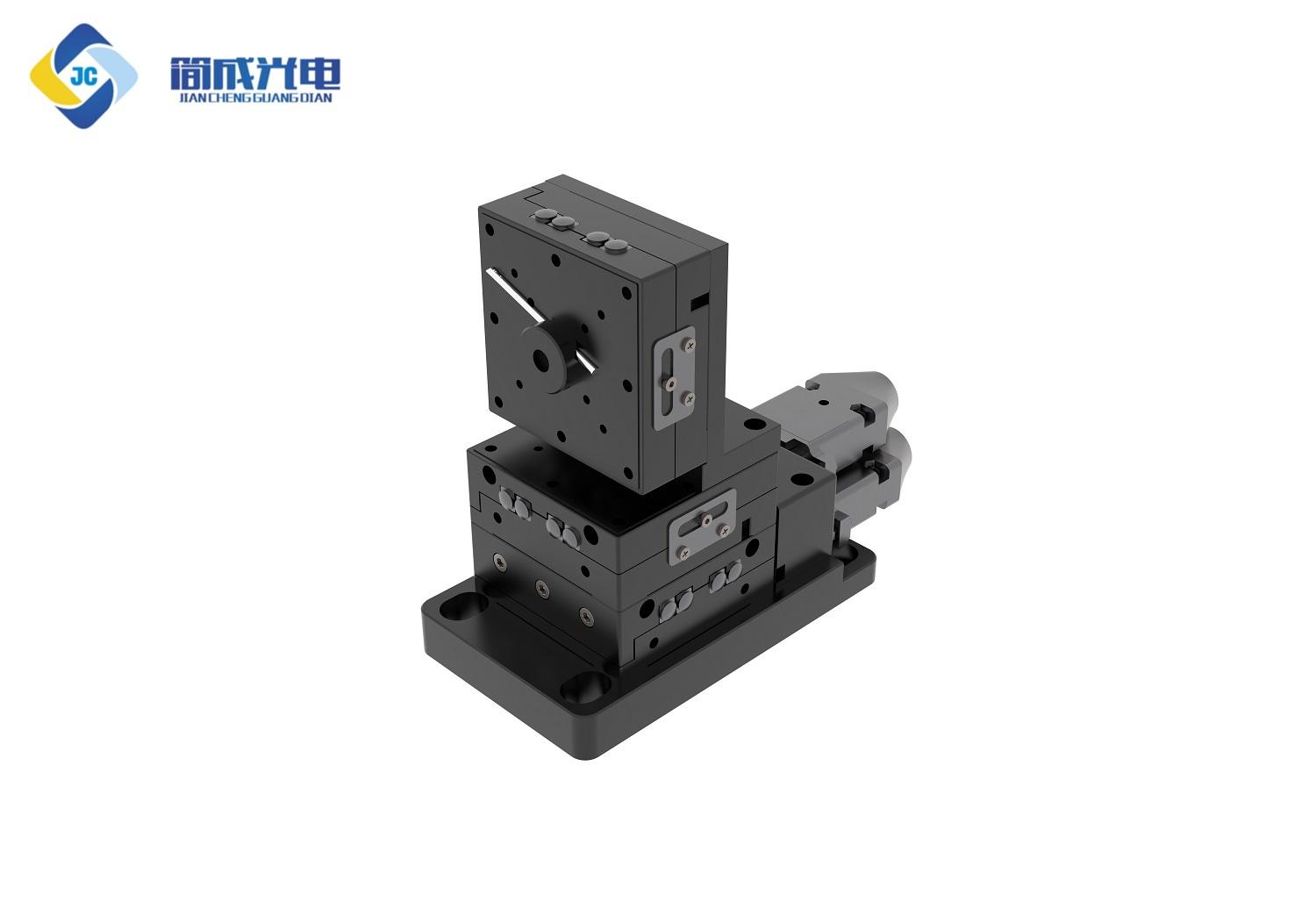

Motorized Precision XYZ Stage
A high-precision motorized XYZ stage designed for accurate positioning and alignment in optical systems and industrial applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Travel Range X-axis | 50mm |
| Travel Range Y-axis | 50mm |
| Travel Range Z-axis | 50mm |
| Resolution | 0.01mm |
| Repeatability | ±0.005mm |
| Maximum Load | 10kg |
| Drive Type | Stepper Motor |
| Operating Voltage | 24V DC |
| Operating Temperature Range | -10°C to 50°C |
| Material | Aluminum Alloy |
| Weight | 2.5kg |
