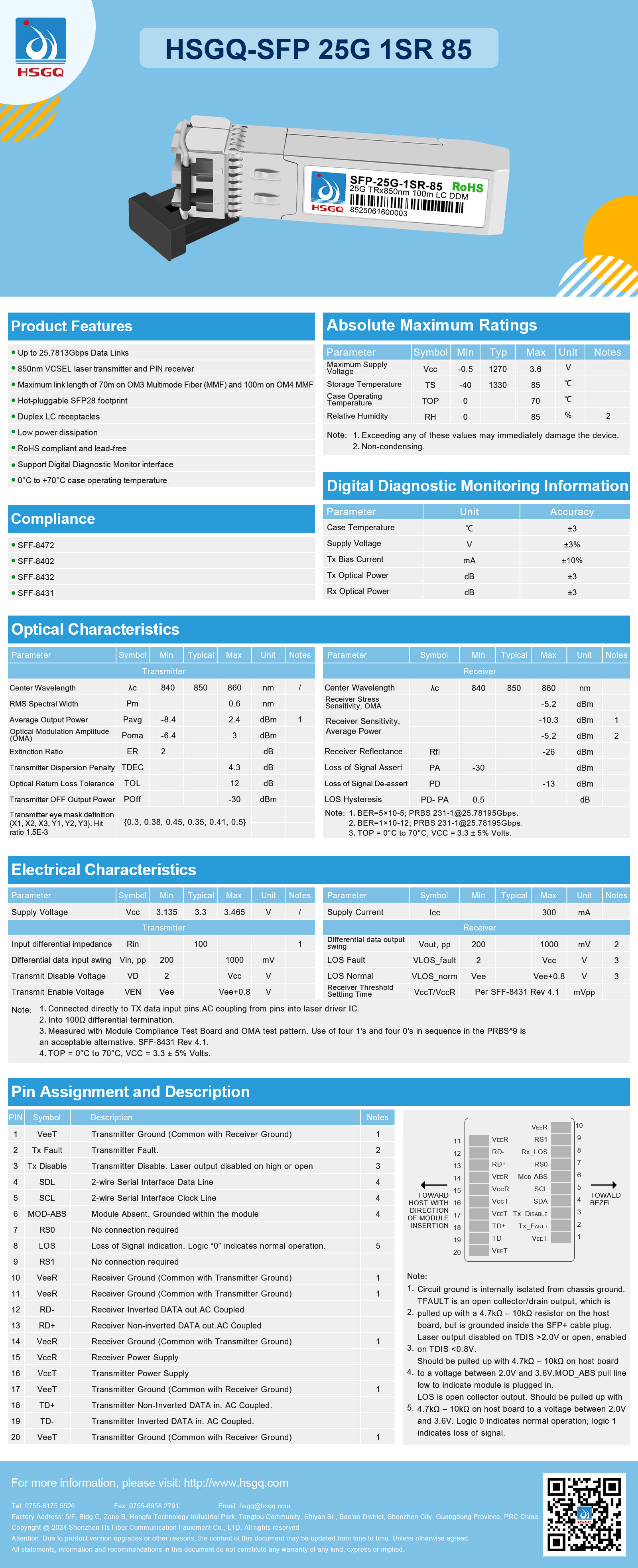

HSGQ-SFP 25G 1SR 85
The HSGQ-SFP 25G 1SR 85 is a high-performance optical transceiver module designed for 25.7813Gbps data links. It features a 850nm VCSEL laser transmitter and PIN receiver, supporting a maximum link length of 70m on OM3 multimode fiber and 100m on OM4 multimode fiber.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Maximum Supply Voltage | -0.5~1270V |
| Storage Temperature | -40~1330°C |
| Case Operating Temperature | 0~85°C |
| Relative Humidity | 0~85% |
| Center Wavelength (Transmitter) | 840~850~860nm |
| RMS Spectral Width | 0.6nm |
| Average Output Power | -8.4~2.4dBm |
| Optical Modulation Amplitude (OMA) | -4~3.4dBm |
| Extinction Ratio | 3dB |
| Transmitter Dispersion Penalty | 4.3dB |
| Optical Return Loss Tolerance | 12dB |
| Transmitter OFF Output Power | -30dBm |
| Center Wavelength (Receiver) | 840~850~860nm |
| Receiver Stress Sensitivity, OMA | -5.2dBm |
| Receiver Sensitivity, Average Power | -10.3dBm |
| Receiver Reflectance | -12dB |
| Loss of Signal Assert | -30dBm |
| Loss of Signal De-assert | -13dBm |
| Los Hysteresis | 0.5dB |
| Supply Voltage | 3.135~3.3~3.465V |
| Supply Current | 300mA |
| Input differential impedance | 100Ω |
| Differential data input swing | 200~1000mV |
| Transmitter Disable Voltage | 2~VccV |
| Transmit Enable Voltage | Vee+0.8V |
| Receiver Threshold Setting Time | 4.1mVp-p |
