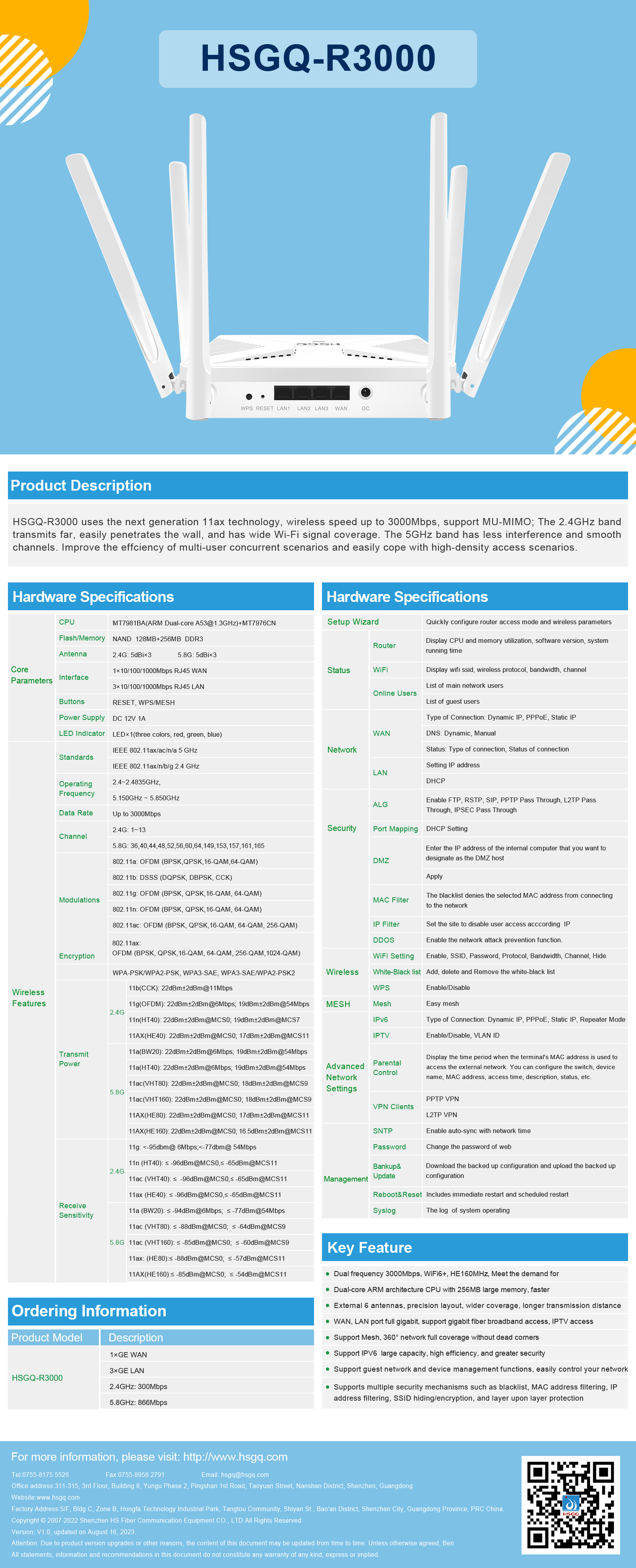

HSGQ-R3000
HSGQ-R3000 utilizes next-generation 11ax technology, achieving wireless speeds up to 3000Mbps. It supports MU-MIMO, ensuring efficient multi-user concurrent scenarios and seamless high-density access. The 2.4GHz band offers wide Wi-Fi coverage, while the 5GHz band provides less interference and smooth channels.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| CPU | MT7918A1ARM Dual-core A53@1.3GHz+MT7976CN |
| FLASH/Memory | 128MB+256MB DDR3 |
| Number of Antennas | 2.4G:5dBi×3, 5.8G:5dBi×3 |
| Interface | 1×10/100/1000Mbps RJ45 WAN, 3×10/100/1000Mbps RJ45 LAN |
| Buttons | RESET, WPS/MESH |
| Power Supply | DC 12V 1A |
| LED Indicator | LED×1 (three colors, red, green, blue) |
| Standards | IEEE 802.11ax/n/b/g 2.4GHz, IEEE 802.11ax/ac/a/n 5GHz |
| Operating Frequency | 2.4-2.4835GHz, 5.150GHz-5.850GHz |
| Data Rate | Up to 3000Mbps |
| Channel | 2.4G: 1-13, 5.8G: 36,40,44,48,52,56,60,64,149,153,157,161,165 |
| Modulations | 802.11b: DSSS (DBPSK, DQPSK, CCK), 802.11a/g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM), 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM), 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM), 802.11ax: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM) |
| Encryption | WPA-PSK/WPA2-PSK/WPA3-SAE |
| 2.4G Transmit Power | 11b (CCK): 22dBm@1Mbps~22dBm@11Mbps, 11g (OFDM): 22dBm@6Mbps~22dBm@54Mbps, 11n (HT20): 22dBm@MCS0~22dBm@MCS7, 11n (HT40): 22dBm@MCS0~22dBm@MCS7, 11ax (HE20): 19dBm@MCS0~19dBm@MCS11, 11ax (HE40): 19dBm@MCS0~19dBm@MCS11 |
| 5.8G Transmit Power | 11a (OFDM): 18dBm@6Mbps~18dBm@54Mbps, 11n (HT20): 18dBm@MCS0~18dBm@MCS7, 11n (HT40): 18dBm@MCS0~18dBm@MCS7, 11ac (VHT20): 18dBm@MCS0~18dBm@MCS8, 11ac (VHT40): 18dBm@MCS0~18dBm@MCS9, 11ac (VHT80): 18dBm@MCS0~18dBm@MCS9, 11ax (HE20): 18dBm@MCS0~18dBm@MCS11, 11ax (HE40): 18dBm@MCS0~18dBm@MCS11, 11ax (HE80): 18dBm@MCS0~18dBm@MCS11 |
| Receive Sensitivity | 11b: -96dBm@1Mbps~-85dBm@11Mbps, 11g: -93dBm@6Mbps~-75dBm@54Mbps, 11n (HT20): -93dBm@MCS0~-73dBm@MCS7, 11n (HT40): -90dBm@MCS0~-71dBm@MCS7, 11ac (VHT20): -90dBm@MCS0~-71dBm@MCS8, 11ac (VHT40): -87dBm@MCS0~-67dBm@MCS9, 11ac (VHT80): -83dBm@MCS0~-63dBm@MCS9, 11ax (HE20): -90dBm@MCS0~-71dBm@MCS11, 11ax (HE40): -87dBm@MCS0~-67dBm@MCS11, 11ax (HE80): -83dBm@MCS0~-63dBm@MCS11 |
