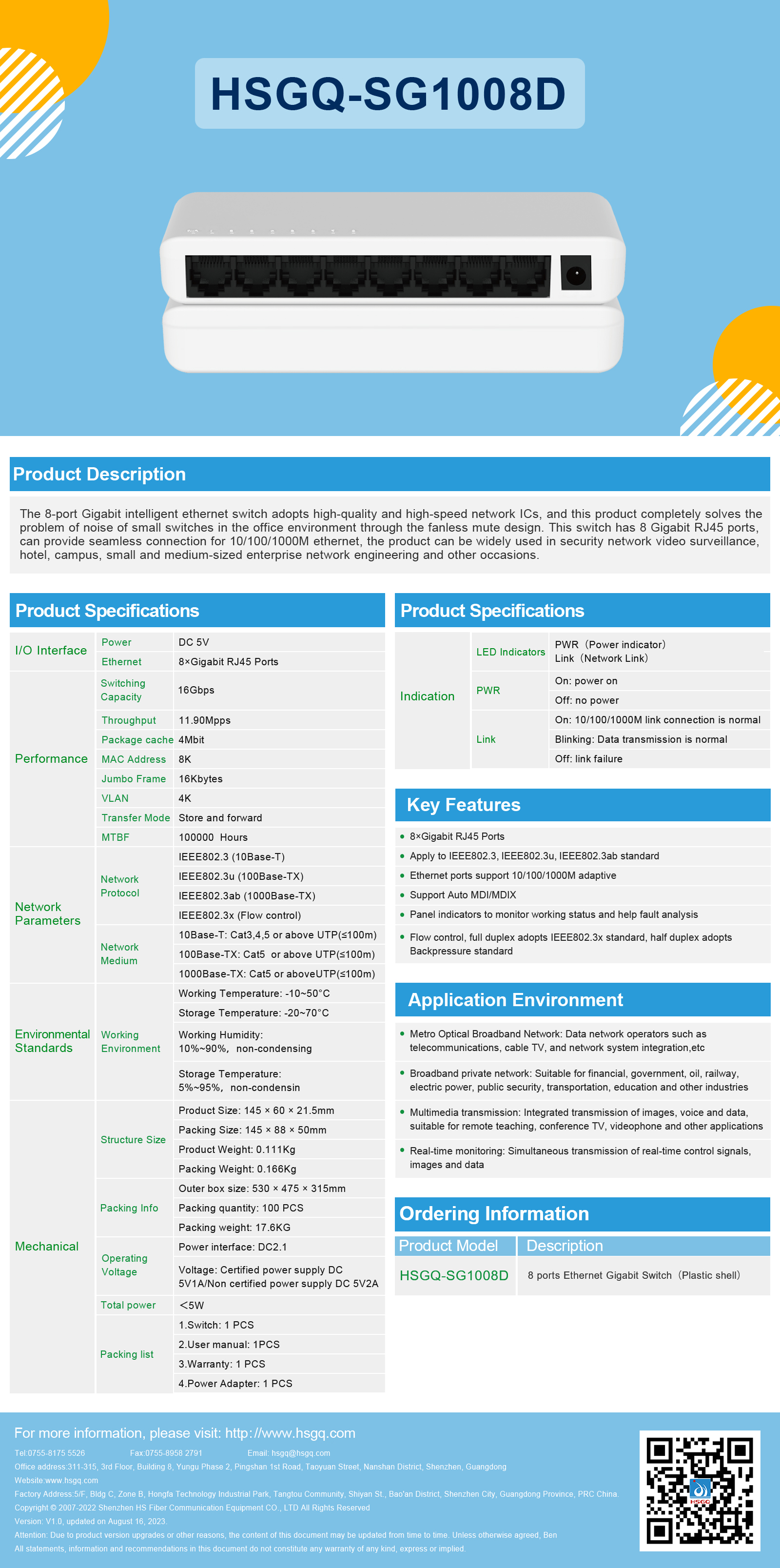

HSGQ-SG1008D
The 8-port Gigabit intelligent Ethernet switch adopts high-quality and high-speed network ICs, solving the noise problem of small switches in office environments with its fanless mute design. It features 8 Gigabit RJ45 ports, providing seamless connection for 10/100/1000M Ethernet, and is widely used in security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering, and other occasions.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power | DC 5V |
| Ethernet | 8×Gigabit RJ45 Ports |
| Switching Capacity | 16Gbps |
| Throughput | 11.90Mpps |
| Package Cache | 4Mbit |
| MAC Address | 8K |
| Jumbo Frame | 16Kbytes |
| VLAN | 4K |
| Transfer Mode | Store and forward |
| MTBF | 100000 Hours |
| Network Protocol | IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab (1000Base-TX), IEEE802.3x (Flow control) |
| Network Medium | 10Base-T: Cat3,4,5 or above UTP(≤100m), 100Base-TX: Cat5 or above UTP(≤100m), 1000Base-TX: Cat5 or above UTP(≤100m) |
| Working temperature | -10~50°C |
| Storage Temperature | -20~70°C |
| Working Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~95%, non-condensing |
| Product Size | 145×60×21.5mm |
| Packing Size | 145×88×50mm |
| Product Weight | 0.111Kg |
| Packing Weight | 0.166Kg |
| Outer Box Size | 530×475×315mm |
| Packing Weight | 17.6Kg |
| Power Interface | DC2.1 |
| Operating Voltage | Certified power supply DC 5V1A/Non certified power supply DC 5V2A |
| Power Consumption | <5W |
| Packing List | 1.Switch: 1 PCS, 2.User manual: 1 PCS, 3.Warranty: 1 PCS, 4.Power Adapter: 1 PCS |
