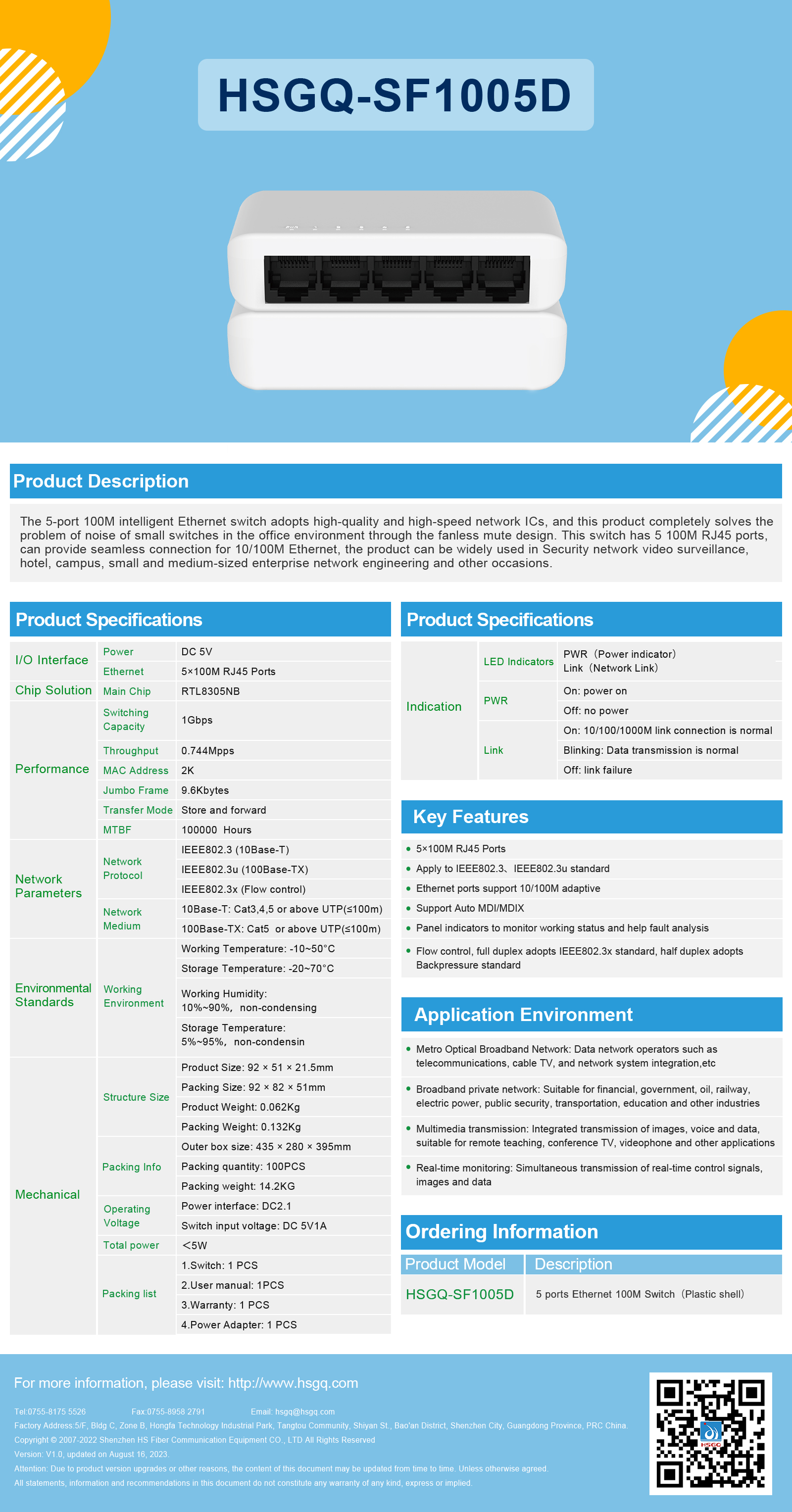

HSGQ-SF1005D
The 5-port 100M intelligent Ethernet switch adopts high-quality and high-speed network ICs, and this product completely solves the problem of noise of small switches in the office environment through the fanless mute design. This switch has 5 100M RJ45 ports, can provide seamless connection for 10/100M Ethernet, the product can be widely used in Security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| I/O Interface | DC5V |
| Ethernet | 5×100M RJ45 Ports |
| Main Chip | RTL8305NB |
| Switching Capacity | 1Gbps |
| Throughput | 0.744Mpps |
| MAC Address | 2K |
| Jumbo Frame | 6KBytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 Hours |
| Network Protocol | IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3x (Flow control) |
| Network Medium | 10Base-T: Cat3,4,5 or above UTP(≤100m), 100Base-TX: Cat5 or above UTP(≤100m) |
| Working temperature | -10~50°C |
| Storage Temperature | -20~70°C |
| Working Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~95%, non-condensing |
| Product Size | 92×51×21.5mm |
| Packing Size | 92×82×51mm |
| Product Weight | 0.062Kg |
| Packing Weight | 0.132Kg |
| Outer Box Size | 435×280×395mm |
| Packing Quantity | 100PCS |
| Total Weight | 14.2Kg |
| Operating Voltage | DC5V1A |
| Total Power | <5W |
| Packing List | 1.Switch: 1 PCS, 2.User manual: 1 PCS, 3.Warranty: 1 PCS, 4.Power Adapter: 1 PCS |
