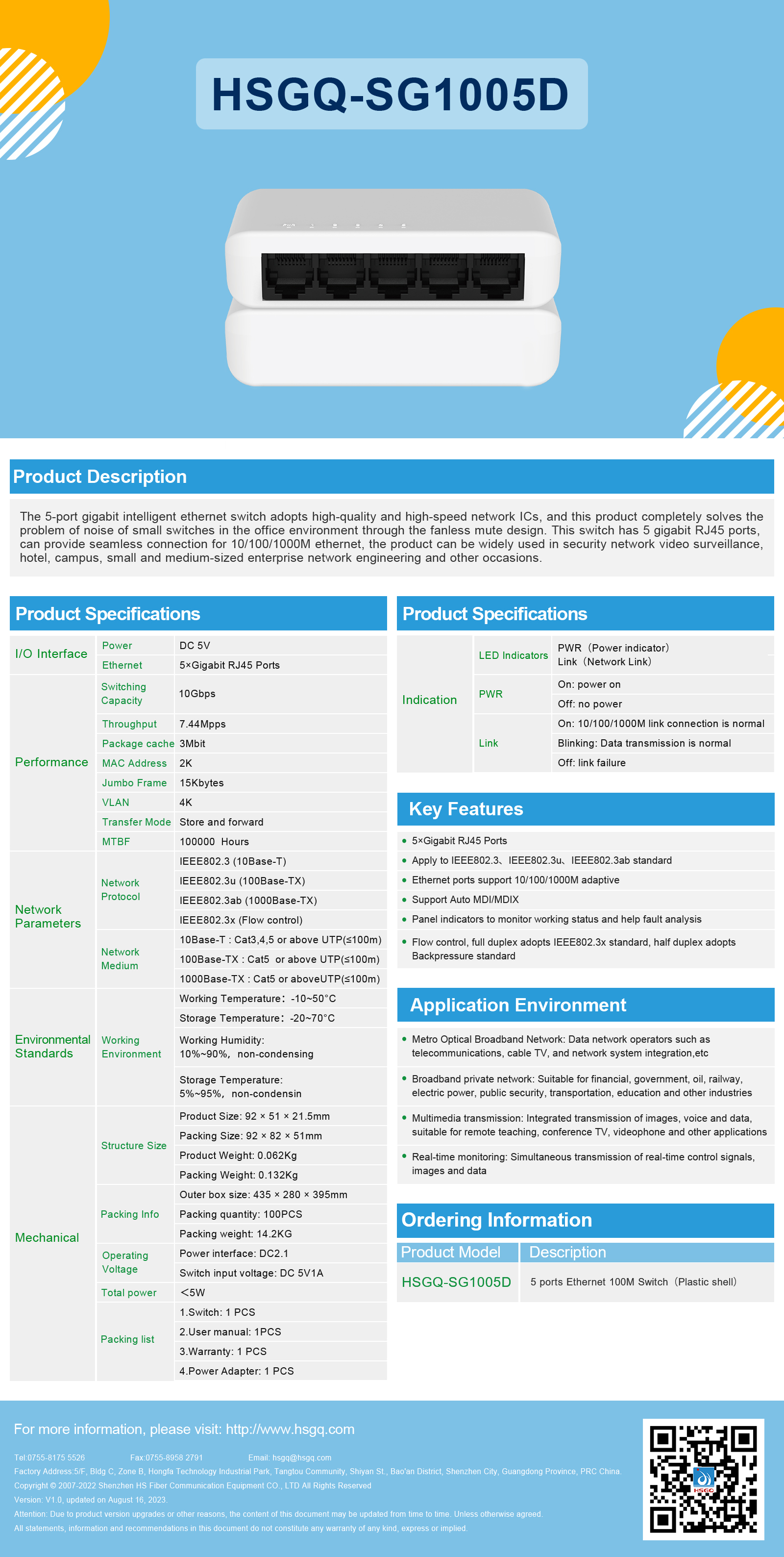

HSGQ-SG1005D
The 5-port gigabit intelligent Ethernet switch adopts high-quality and high-speed network ICs, solving the noise problem of small switches in office environments through its fanless mute design. It provides seamless connection for 10/100/1000M Ethernet and is widely used in security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering, and other occasions.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power Interface | DC2.1 |
| Ethernet Interface | 5×Gigabit RJ45 Ports |
| Switching Capacity | 10Gbps |
| Throughput | 7.44Mpps |
| Package Cache | 3Mbit |
| MAC Address | 2K |
| Jumbo Frame | 15Kbytes |
| VLAN | 4K |
| Transfer Mode | Store and forward |
| MTBF | 100000Hours |
| Network Protocol | IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab (1000Base-TX), IEEE802.3x (Flow control) |
| Network Medium | 10Base-T: Cat3,4,5 or above UTP(≤100m), 100Base-TX: Cat5 or above UTP(≤100m), 1000Base-TX: Cat5 or above UTP(≤100m) |
| Working Humidity | 10%-90%, non-condensing |
| Storage Temperature | -20~70°C |
| Working temperature | -10~50°C |
| Product Size | 92×51×21.5mm |
| Structure Size | 92×82×51mm |
| Product Weight | 0.062Kg |
| Packing Weight | 14.2Kg |
| Outer Box Size | 435×280×395mm |
| Packing Quantity | 100PCS |
| Switch Input Voltage | DC5V1A |
| Total Power | <5W |
| Packing List | 1.Switch:1PCS, 2.User manual:1PCS, 3.Warranty:1PCS, 4.Power Adapter:1PCS |
